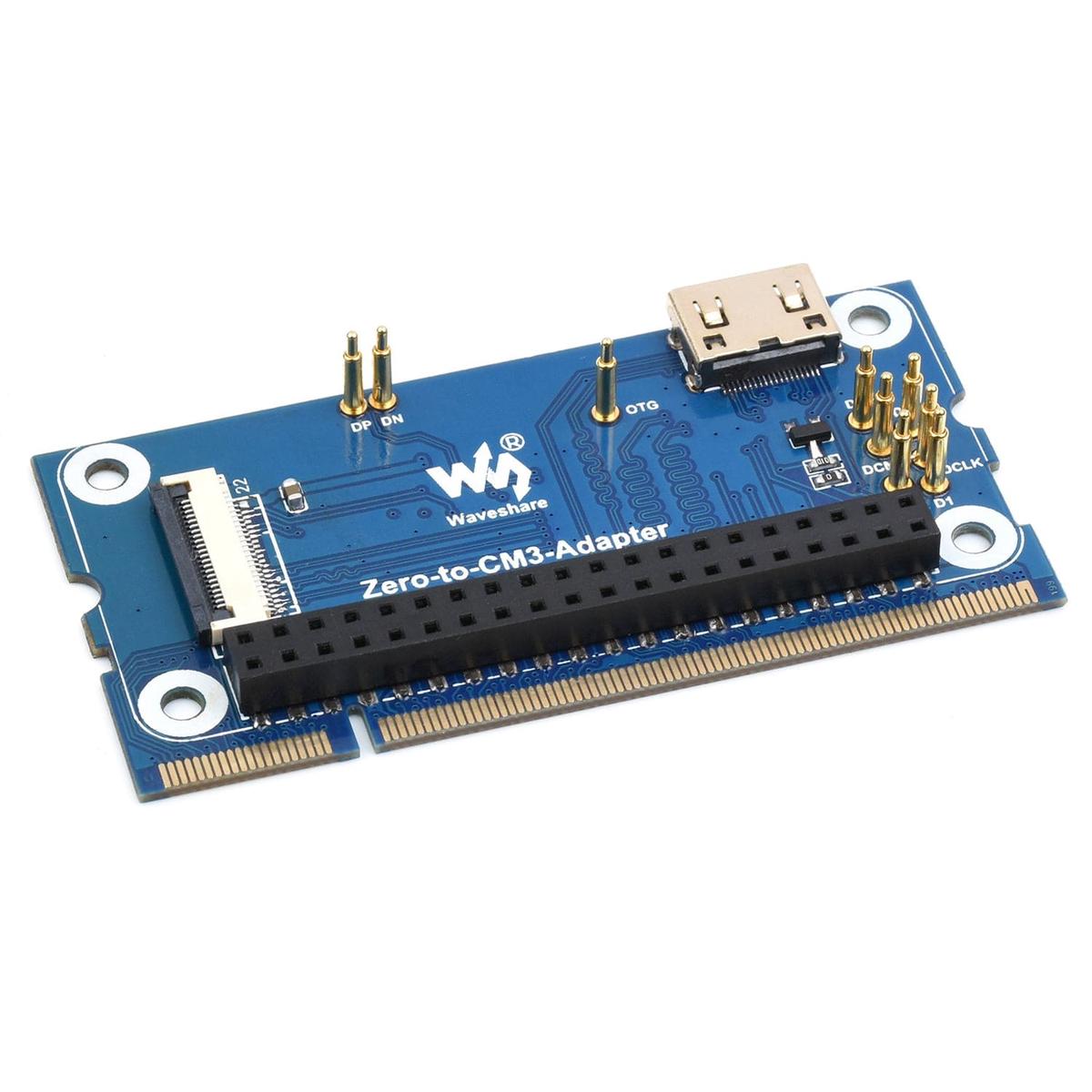

This adapter board converts a Raspberry Pi Zero 2 to the Raspberry Pi Compute Module 3 SODIMM format, allowing you to maintain projects, designs and products that use the older CM3 format by utilising newer generation Raspberry Pi Zero 2 boards.

The adapter board uses pogo pin connections to connect to the Zero 2, and includes HDMI and CSI connectors (adapters are included in the package, more info on the package contents below).

Important Notes

• Not compatible with earlier generation Pi Zero boards
• The GPIO Pin header needs to be soldered in reverse on the Pi Zero 2
• Raspberry Pi Zero not included

Features

• Using 40-pin GPIO and pogo-pin connection, the Zero 2W can be easily attached
• Onboard standard CM3 SODIMM, easily connected to the original CM3 ecosystem HATs
• Adapting USB, micro SD and OTG via pogo pins
• Adapting CSI connector via FPC
• Adapting HDMI via MINI HDMI adapter
• Adapting GPIO via female pin header
• Not compatible with the first-generation Zero
• Overall dimensions: 67.5mm x 34mm

Package Contents

• 1x Zero-to-CM3 Adapter
• 1x Mini-HDMI Adapter
• 1x FFC cable
• 1x Screws pack

Raspberry Pi Zero 2 not included

Resources

• Product Documentation

Onboard Resource Comparison
