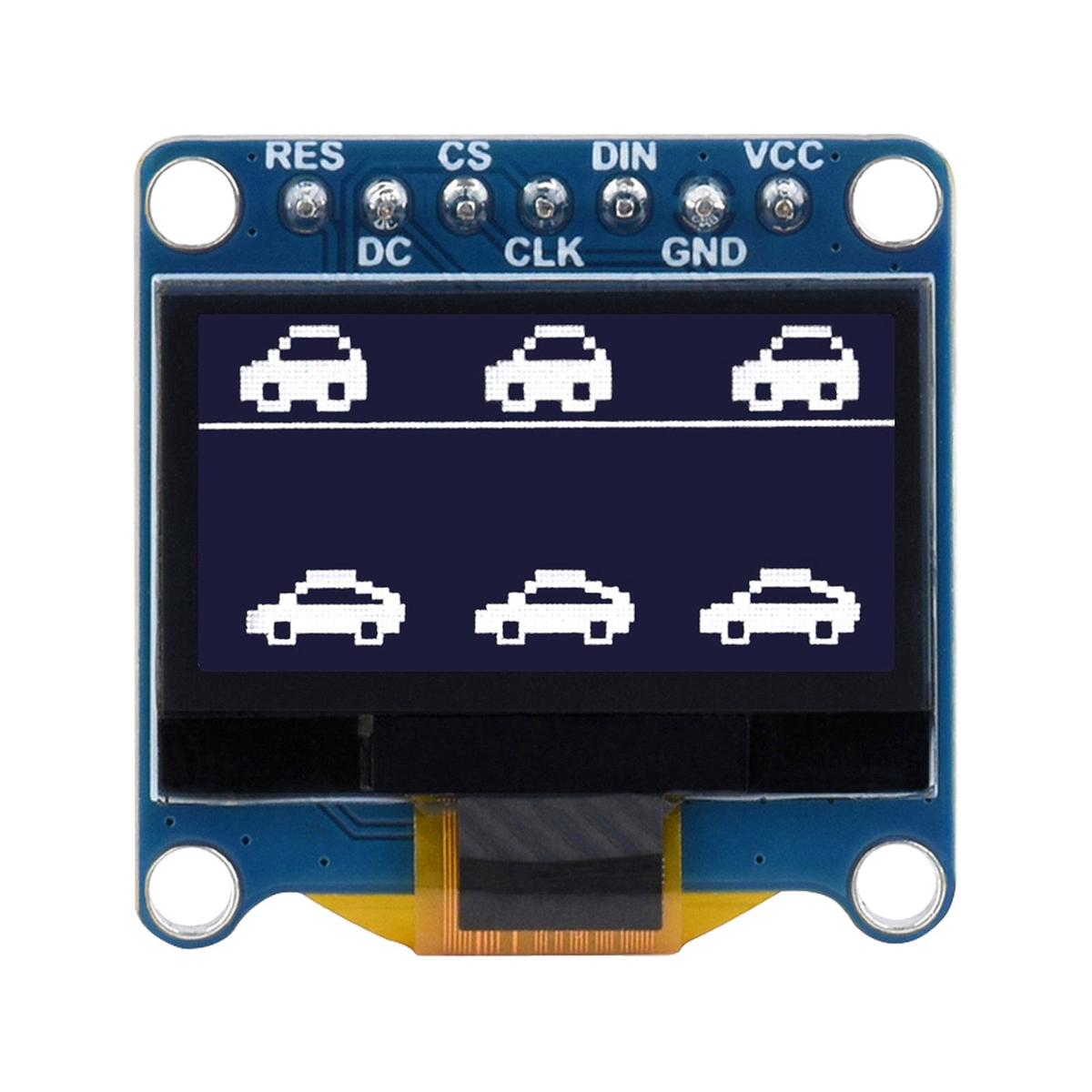

White 0.96" OLED Display Module (128x64)

Name: White 0.96" OLED Display Module (128x64)
SKU: ZB329523784
Availability: InStock

Price

SKU:

ZB329523784

Category: Electronic Components

Shopping information

Description

This white128×64OLEDmodule has anSPI/I2Cinterface for a fast data rate, and it allows you to connect to many differentdevelopment boards, includingRaspberry Pi,Arduino,STM32, and others!

With its bright white colour, anSSD1315 driver,and an ultra-narrow bezel with an onboard voltage translator, this is a small but powerful module that you can use with many different projects!

SmallOLEDmodules are a popular option for adding a simple display to your project for monitoring data, displaying IP addresses, weather, counters or anything else you decide to code!

Be sure to check out ourtutorial showing how to use this with the Raspberry Pi Pico usingI2Cor check outTony’s article showing how to use it with a Pico andSPI!

Note: Does NOT come with a Raspberry Pi board

Connection Example – Raspberry Pi via SPI Interface

Features

Ultra-narrow bezel, compact size, with onboard voltage translator
4-wire SPI and I2C interfaces, better compatibility, fast data rate
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications

OPERATING VOLTAGE	3.3V / 5V
RESOLUTION	128 64 pixels
COMMUNICATION INTERFACE	4-wire SPI / I2C
DISPLAY SIZE	21.74 11.18 mm
DISPLAY COLOUR	(C): upper yellow & lower blue; (D): white; (E): blue
DISPLAY PANEL	OLED
PIXEL SIZE	0.15 0.15 mm
DRIVER	SSD1315
MODULE SIZE	26.00 26.00mm

Resources

Product Wiki
Using an SSD1315 OLED with the Raspberry Pi Pico (I2C)
MicroPython Skill Builders – #7 SPI OLED Displays

Pinout

RES	Reset, low active
DC	Data/Command selection (high for data, low for command)
CS	Chip selection, low active
CLK	Clock input
DIN	Data input
GND	Ground
VCC	Power (3.3V / 5V input)
