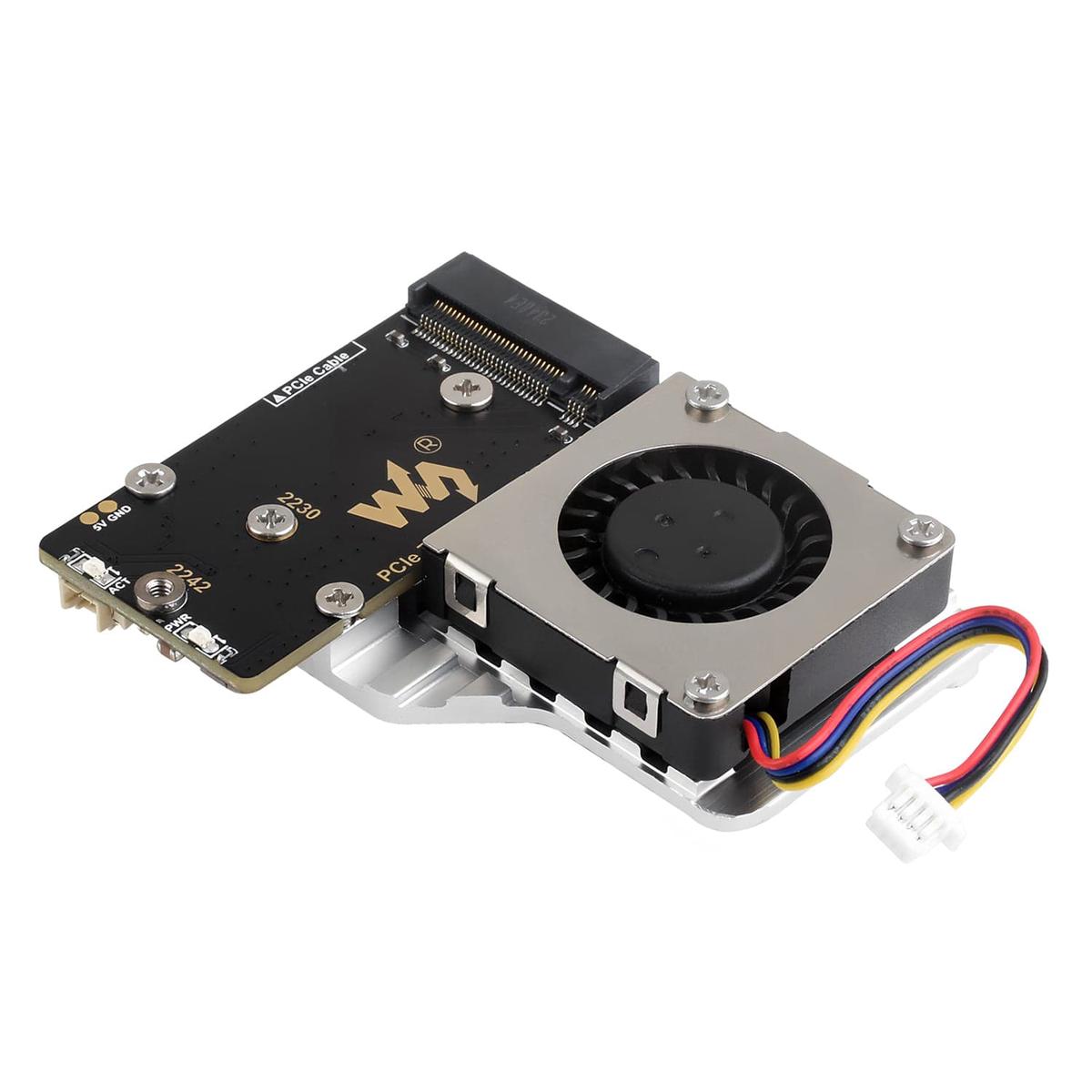

Combining an M.2 NVMe PCIe adapter with an active cooler, this innovative storage and cooling solution from Waveshare allows you to run fast NVMe storage/boot drives whilst also keeping your Raspberry Pi 5 at the right operating temperature.

This compact PCIe adapter can accept 2242 or 2230 NVMe SSDs and modules, such as the Raspberry Pi SSD, with securing nuts/fixings included to keep your SSD in place. Onboard LED indicators show NVMe activity, along with a separate LED for power.

The adapter is fixed to an active cooler and uses the Raspberry Pi 5 cooler mounting holes to attach the entire assembly to your Pi. This leaves your Raspberry Pi mounting holes free, and only uses two GPIO pins for M.2 power (cable included), keeping the majority of pins free for jumper wires and other hardware.

The cooler’s fan removes a lot of heat by default, and the fan will only start up when the CPU temperature is at 50C (default) – however, this can be changed in settings to your desired trigger temperature.

Raspberry Pi and SSD not included.

Features

• PCIe NVMe + cooling combo: Storage/boot adapter and active cooler in one unit
• Supports 2230 and 2242 NVMe SSDs: Compatible with NVMe drives such as the Raspberry Pi SSD
• Securing hardware included: SSD mount nuts and fixings provided
• LED indicators: Shows NVMe activity and power status
• Mounts using cooler holes: Attaches via Raspberry Pi 5 cooler mounts
• Leaves Pi mounting holes free: Main board holes are unobstructed
• GPIO access: GPIO header is not blocked by the assembly (two pins used for M.2 power)
• Temperature-controlled fan: Default 50C start; adjustable via settings

Resources

• Product Wiki
  • Hardware assembly
  • Booting from NVMe SSD
  • Fan Control

Package Contents

• 1x Waveshare M.2 Adapter with Active Cooler for Raspberry Pi 5
• 1x MX1.25 2-pin cable (for M.2 power)
• 3x Thermal pads
• 1x Screws pack

Raspberry Pi and SSD not included.
