Description

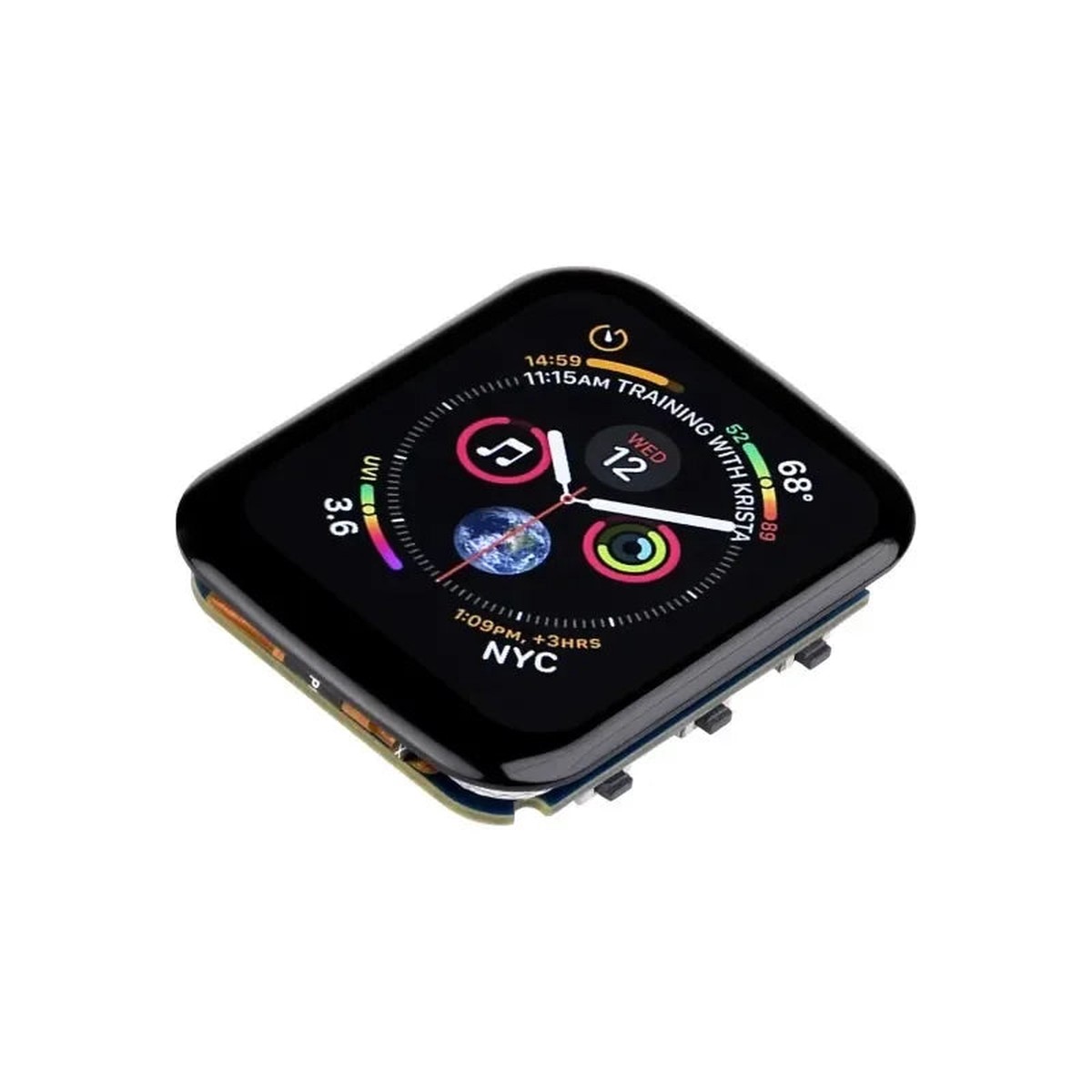

Waveshare ESP32-S3-Touch-LCD-1.69 is a compact ESP32-S3 development board with a 1.69inch capacitive touch LCD, built for portable UI devices, smart control panels, and embedded display projects. It integrates the ESP32-S3R8 wireless MCU, 8MB PSRAM, 16MB Flash, QMI8658 6-axis IMU, RTC, and a 3.7V lithium battery charge / discharge circuit, making it a practical platform when you need a small display, touch interaction, wireless connectivity, and battery-ready hardware on one board.

Features

• ESP32-S3R8 onboard: Xtensa 32-bit LX7 dual-core processor with up to 240MHz frequency, paired with 8MB PSRAM for more capable graphics and embedded workflows.
• 1.69inch capacitive touch display: 240280 resolution, 262K colors, and capacitive touch control for clear, responsive UI interactions.
• 16MB Flash storage: Provides useful room for firmware, assets, and local data in display-oriented ESP32-S3 projects.
• Battery-friendly platform: Includes a 3.7V lithium battery connector and charging support for portable devices.
• Motion and timekeeping: Combines a QMI8658 6-axis IMU with an onboard PCF85063 RTC.
• Compact HMI hardware: Includes buzzer, buttons, USB Type-C, and exposed GPIO for extending the board into custom products.

Specifications

Applications

• Portable HMI devices: A good fit for rechargeable mini dashboards, handheld instruments, and touch-based status panels.
• Smart home control interfaces: Useful for room controllers, scene panels, and compact wireless UI terminals.
• Sensor-rich ESP32-S3 projects: The IMU and RTC make it useful for data logging, motion-aware UIs, and portable smart devices.
• Embedded display prototyping: Practical when you want to test graphics, touch, storage, and battery features together.
• Compact consumer-style devices: The small panel and onboard buzzer help with alert, menu, and interaction-driven products.

Product List

ESP32-S3-Touch-LCD-1.69 x1

Other Content

What’s On Board

• ESP32-S3R8: Wireless MCU with onboard 8MB PSRAM.
• W25Q128JVSIQ: 16MB NOR Flash.
• PCF85063: RTC chip for timekeeping functions.
• QMI8658: 3-axis accelerometer plus 3-axis gyroscope.
• ETA6098: High-efficiency lithium battery charging chip.
• USB Type-C / buzzer / RTC battery header / PWM button: Helpful for portable interactive designs.

Pin Definition

Interface Notes

• LCD: Uses the ST7789V2 display driver for the 240280 panel.
• Touch: Uses the CST816T capacitive touch controller.
• Battery support: The MX1.25 battery connector supports 3.7V lithium battery charge and discharge workflows.
• RTC backup: The RTC battery header allows persistent timekeeping when needed.
• PWM button: Supports power control interactions including single-press, double-press, multi-press, and long-press operations.

Outline Dimensions

Resources

• Official Documentation / Wiki
• Schematic PDF
• Hardware PDF
• Hardware PDF V2.1
• Arduino Setup Guide
• Official FAQ
• ESP32-S3 Datasheet

FAQ

Is this board suitable for battery-powered portable projects?

Yes. It includes a 3.7V lithium battery connector, charging support, and a compact display-focused layout that works well in portable devices.

What makes this version different from a basic ESP32-S3 display board?

This version combines touch input, 8MB PSRAM, 16MB Flash, QMI8658 IMU, RTC, and a battery-ready design on one compact board.

Which development environments are officially supported?

Waveshare provides official documentation for Arduino IDE and ESP-IDF-based workflows, making it easy to start with either beginner-friendly or more advanced development paths.
