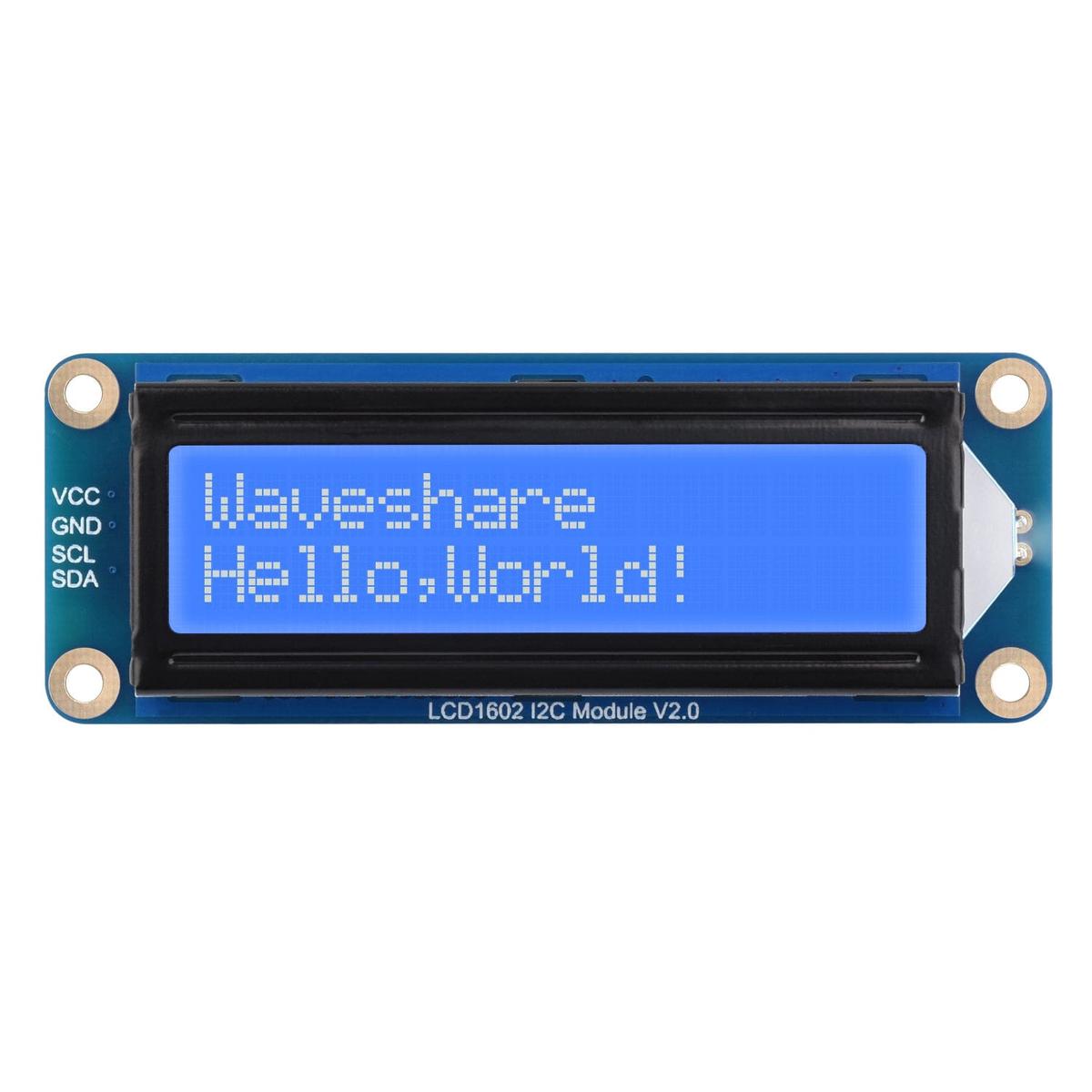

The Waveshare LCD1602 I2C Module (Blue) is a 16×2 character LCD display featuring white text on a blue background. It uses an I2C interface, requiring only two IO pins, which helps conserve GPIO for the rest of your project and reduces wiring clutter and complexity.

The module operates at 3.3V or 5V and comes with a 4-pin connection jumper cable, making it compatible with various development boards such as Raspberry Pi, Raspberry Pi Pico, ESP32 and Arduino.

The display is driven by an AiP31068 LCD controller and includes an SN3193 backlight driver, allowing foradjustable backlight brightness.

Waveshare provides online development resources with examples for various platforms.

We also offer this module with black text on a grey background or black text on a green background. An RGB version is also available!

Features

• 16×2 character LCD with white text on blue background
• I2C interface requiring only two signal pins
• Compatible with 3.3V and 5V systems
• Adjustable backlight brightness via SN3193 driver
• Supports Raspberry Pi, Raspberry Pi Pico, ESP32 and Arduino
• Includes online development resources and manuals

Specifications

Resources

• Product Wiki
• LCD1602 Module Manual
• Custom Character Tutorial
• AIP31068L Chip Manual

Pinout

Package Contents

• 1x Waveshare Blue 16×2 I2C LCD Module – 3.3V/5V
• 1x PH2.0 4-pin wire
