Details

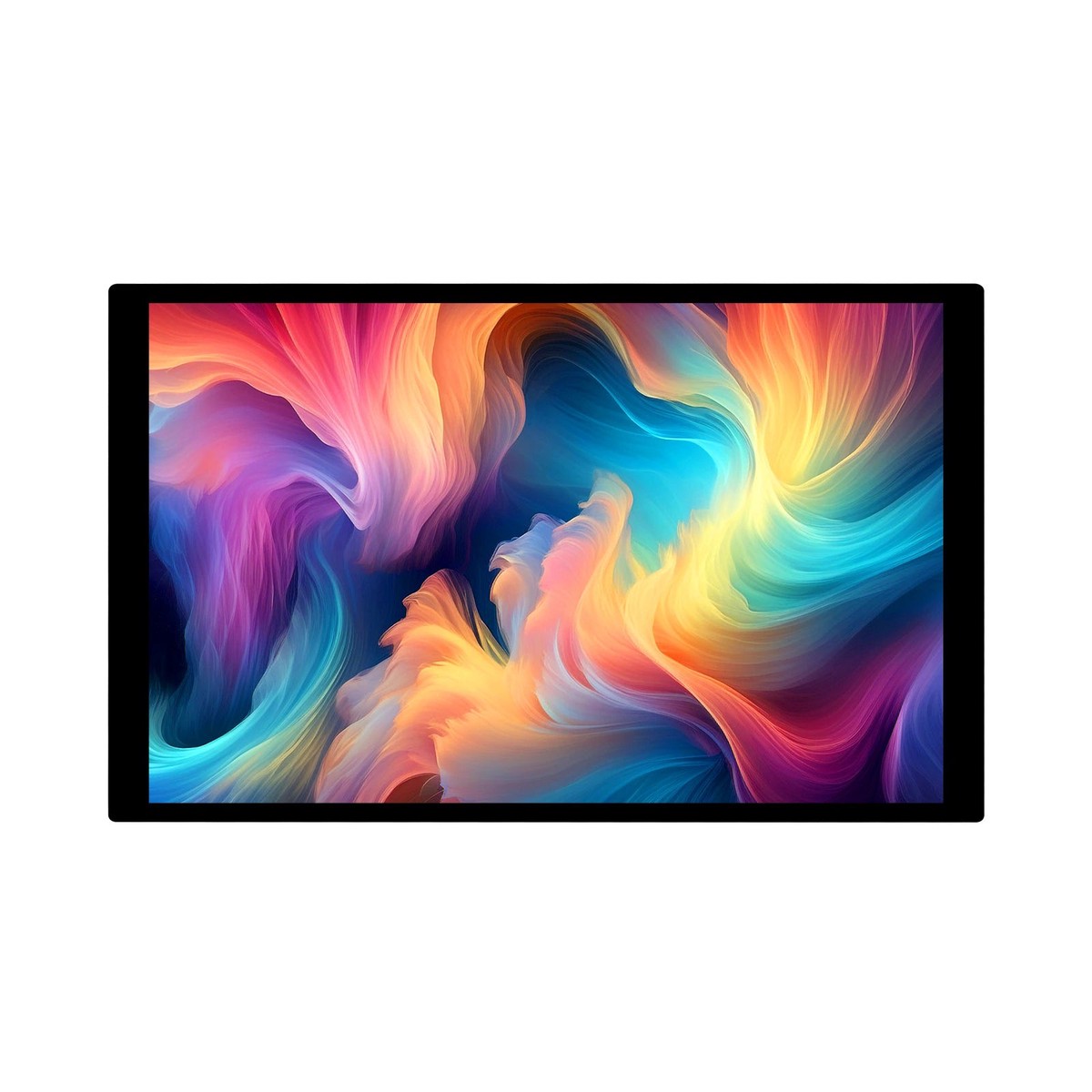

10.1inch High Resolution Capacitive Touch Display, 19201200, Optical Bonding Toughened Glass Panel, HDMI Display Interface, IPS Display, 10-Point Touch

10.1 Capacitive Touch Display

High Resolution|Multi-Point Touch|Landscape/Portrait rotation

Device & System Support

Raspberry Pi Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series Supports Ubuntu, single point touch, driver free Supports Jetson Nano / TX2 / Xavier NX / Orin series boards PC Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples

Working with Raspberry Pi 5 / 4B

Working with Raspberry Pi 3B+

Working with Raspberry Pi Zero

Working with PC

* for reference only, the above controller boards or hosts are NOT included

How to Install

Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example

Step 1:
Connect the cable , , and to the corresponding positions as shown in the picture above.

Step 2:
Install the Raspberry Pi 5 on the PCB board of the LCD, connect the HDMI adapter to the cable (select HDMI adapter or according to your Raspberry Pi model) and then connect it to the Raspberry Pi Micro HDMI port.

Step 3:
Connect the cable to the USB port of the Pi and connect the cable to the GPIO 5V and GND pins as shown above.

Step 4:
Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.

* for reference only, the Raspberry Pi 5 is NOT included

Technology upgrade, higher resolution

1920 1200 resolution, provides clear image and vivid color display effect

IPS Display Panel

Excellent Display Performance With 178 Wide Viewing Angle

Capacitive 10-Point Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical Bonding, display well and dustproof

Freely rotate the display orientation

One-button switch between landscape and portrait display to meet the needs of different usage scenarios

Dual-Track Speaker

Ferrite Hi-Fi Speaker, Larger Volume, Wider Sound Range, Better Sound Quality

10.1inch LCD Dual-Track Speaker demo

Interface Introduction

Dimensions

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order
