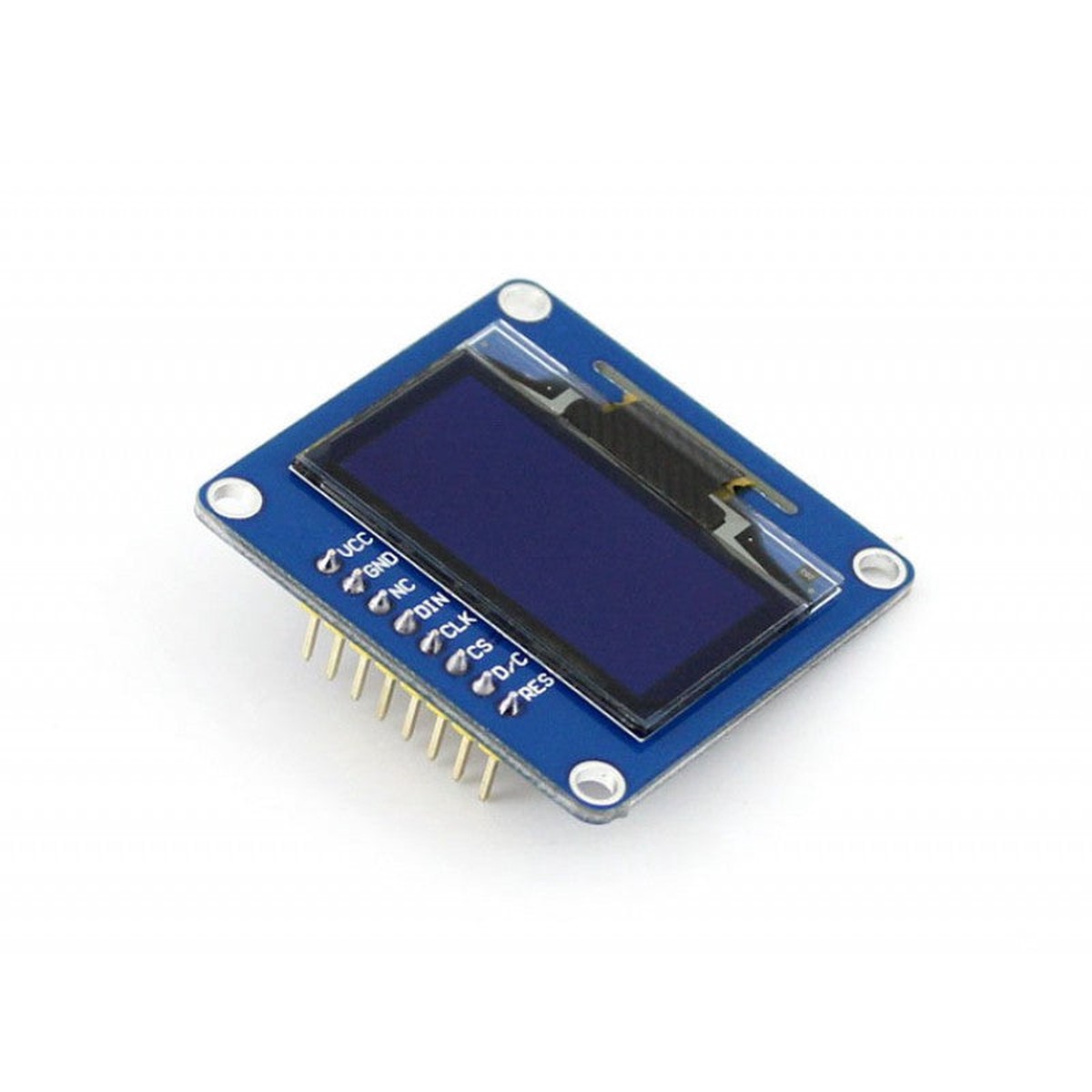

1.3inch OLED, SPI/I2C Interfaces, Straight/Vertical Pin header

The OLED module provides three drive interfaces: 3-wire SPI, 4-wire SPI, and I2C interface respectively. There are two resistors that can be soldered on the back of the module

Features:

• Driver Chip: SH1106
• Interface: 3-wire SPI, 4-wire SPI, I2C
• Resolution: 128X64
• Display Size: 1.3inch
• Colors:Blue
• Visible Angle>160
• Operating Temperature(): -30~70
• Storage Temperature(): -30~80
• Operating Voltage:3.3V / 5V
• Applicability: Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

Interface

• VCC – 3.3V / 5V power input
• GND – Ground
• NC: No Connection
• DIN – Data Input / SPI MOSI pin
• CLK – Clock / SPI SCK pin
• CS – SPI chip selection, low active
• DC – Data/Command selection (high for data, low for command)
• RST – External reset, low active

Outline Dimensions

Development resources:demo codes, schematic, datasheets, etc.
Wiki:www.waveshare.com/wiki/1.3inch_OLED_(B)
