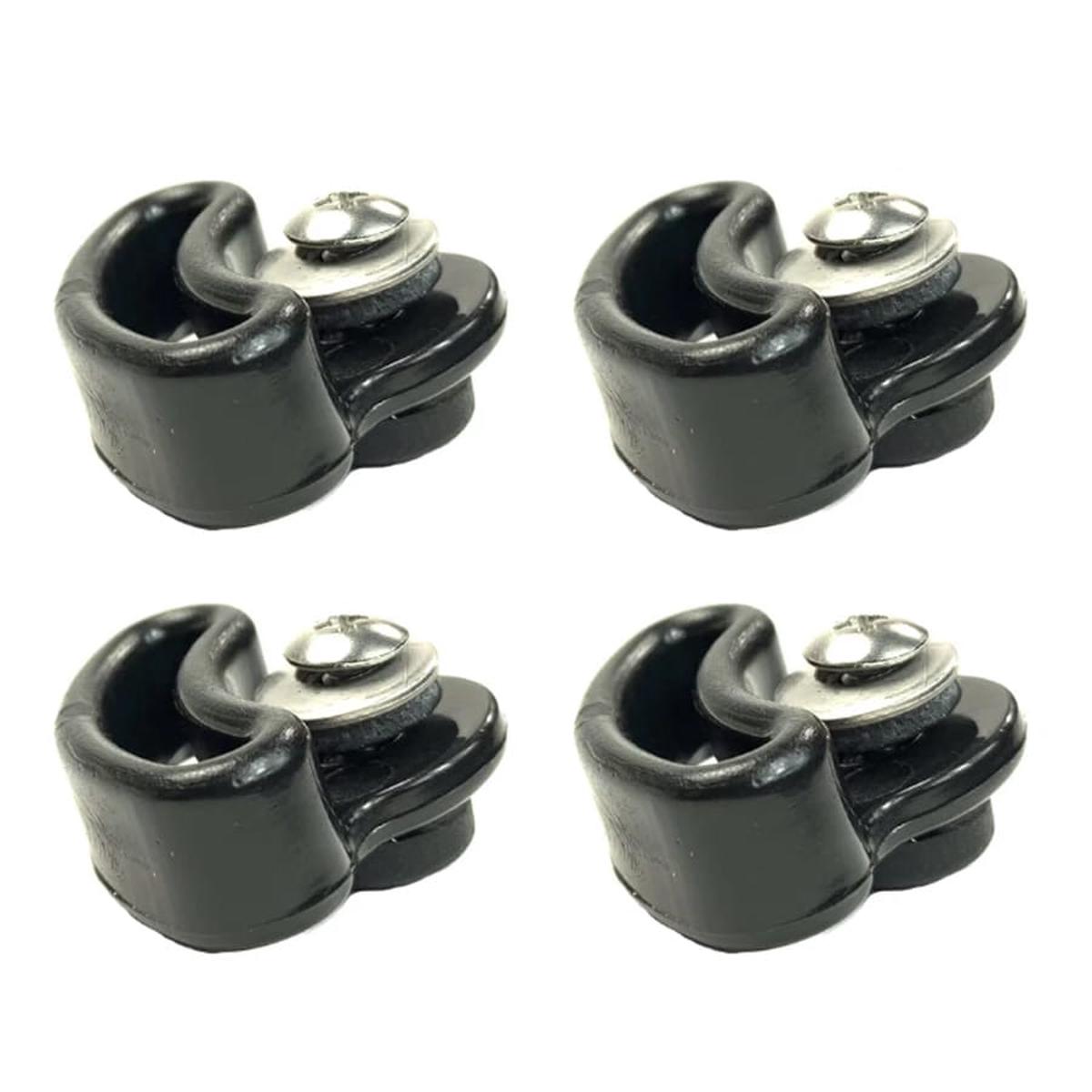

The Voltaic Corner Panel Mount Set provides a secure way to attach ETFE solar panels to surfaces or straps for portable or fixed installations.

The Voltaic Corner Panel Mount Setis designed to securely attach compatible Voltaic ETFE solar panels to a wide range of surfaces. Supplied as a set of four, each mount includes a corner bracket, washer, screw, and post nut for a complete mounting solution.

Compatible with Voltaic ETFE solar panels with corner mounting holes, such as theP110, P120, P105, and P108, offering flexibility for use with straps, frames, or fixed installations.

Installation is straightforward, with components designed to pass through the panel and secure from the rear, creating a stable and reliable mounting point for portable or permanent setups.

Features

• Set of four corner mounts for ETFE solar panels
• Each mount includes corner bracket, washer, screw, and post nut
• Compatible with Voltaic ETFE solar panels with corner mount holes
• Suitable for strap, frame, or fixed installations
• Components pass through panel and secure from rear
• Suitable for portable or permanent setups

Specifications

Corner Mount

• Fits 3/4″ and 1/2″ Webbing

Screw

• Extra-Wide Truss Head Phillips Screws
• Passivated 18-8 Stainless Steel
• 4/40 Thread
• 3/8″ Long

Washer

• Neoprene Backed Stainless EPDM Washer
• Outer Diameter: 3/8″

Post nut

• ABS Plastic
• Internal Thread: 4/40

Compatibility

• Voltaic ETFE solar panels with corner mount holes
• Not compatible with Voltaic urethane solar panels, which include an embedded screw and ABS post nut.

Package Contents

• 1x Voltaic K-MT-COR-ETFE Panel Corner Mount Set – ETFE (Set of 4)

Solar panel not included.
