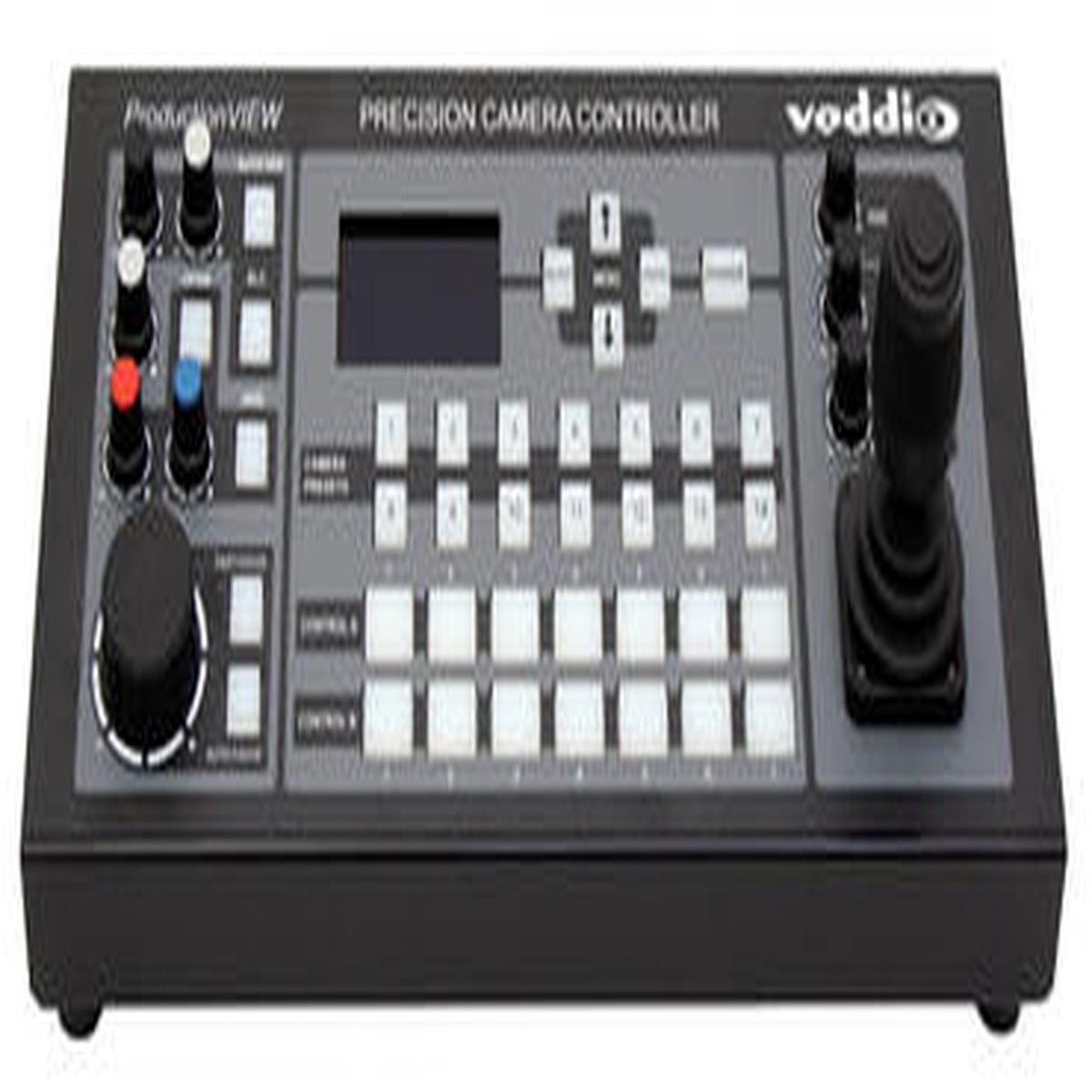

VADDIO 999-5700-000 ProductionVIEW Precision Camera Controller

VADDIO 999-5700-000 ProductionVIEW Precision Camera Controller

Electronic Components

VADDIO 999-5700-000 ProductionVIEW Precision Camera Controller

Price
Original price was: $2,610.00.Current price is: $146.00.

SKU:

LB29908530

Category:

Shopping information

Broadcast-quality joystick controller for extremely smooth and accurate pan, tilt and zoom control.

The Precision Camera Controller boasts a broadcast-quality joystick designed for smooth and accurate pan, tilt and zoom control, as well as CCU image control functionality for controlling up to seven PTZ cameras. By integrating CCU control into the system users can control red and blue gain, detail, and iris with adjustable gain with any Vaddio PTZ camera. One-push white balance (OPWB), auto white balance (AWB) and auto iris are also available to those who desire a more automated image control system. The CCU control surface gives system users real-time knobs and buttons to control each of these functions.

Designed to control up to seven PTZ cameras, the Precision Camera Controller can be used as a stand-alone device or in conjunction with a variety of video switchers or mixers on the market today. In addition, two Precision Camera Controllers can be linked together to allow the user to control all cameras from either controller

KEY FEATURES:

  • Red and blue gain controls
  • Large focus wheel for fast, accurate manual focus
  • 3-Axis hall effect joystick
  • Seven discrete auto-sensing RS-232C camera control ports
  • External control capability (RS-232 and Tally)
  • Link port for linking to second Precision Camera Controller

    TECHNICAL FEATURES:

  • Color and Shading Controls
    Controls for red and blue gain, detail, iris and gain are all accessible on a per-camera basis from the console. One-push white balance (OPWB) and auto white balance (AWB) are also available.
  • Focus Controls
    A large focus wheel for fast, accurate manual focus of the camera is built-in. With the push of a button, Fast Focus will zoom the camera in to allow manual adjustment of focus, and then with a second button push, will zoom the camera out to its previous zoom position.
  • 3-Axis Hall-Effect Joystick
    The improved Hall-Effect joystick includes larger handle for better grip, along with a button that moves the PTZ camera to its home position when pressed.
  • Seven Auto-Configuring RS-232 Control Ports
    The Precision Camera Controller has seven (7) discrete control ports which eliminates the need to daisy chain control cabling. The Precision Camera Controller is capable of auto-sensing each camera attached. Control codes for the following cameras are built-in:
    Vaddio WallVIEW Series Cameras
    Vaddio CeilingVIEW Series Cameras
    Vaddio HideAway Series Cameras
    Vaddio Model Series Cameras
    Vaddio Add-A-Cam PRO Camera Systems
    Panasonic AW-HE100 Camera
    Sony EVI & BRC Series Cameras
    Canon VC-C50i & VC-C50iR
  • Link To Second Precision Camera Controller
    The Link port on Precision Camera Controller allows two Precision Camera Controllers to be connected, allowing camera control from one Precision Camera Controller or the other.
  • External Control Capability
    The Precision Camera Controller has two rows of seven external control switches. These switches can be tied to Tally outputs and can be used to control external video switchers through contact closures, or connected to tally lights such as those found on Vaddio’s WallVIEW CCU series of camera systems.
  • Master RS-232 Control Port
    The master control port allows connection to other control systems or third-party video switchers and mixers.

    TECHNICAL SPECIFICATIONS:

  • System I/O:
    Seven (7) RS-232 Camera Control Ports on RJ-45 Connectors
    One (1) Link Port on RJ-45
    One (1) RS-232 Control Port on DB-9F
    Seven (7) Tally Outputs Group A
    Seven (7) Tally Outputs Group B
    One (1) Power Connector (Coaxial, Positive Center, 5.5mm OD x 2.5mm ID)
  • Compatible Cameras:
    Vaddio WallVIEW, HideAway, Model and Add-Cam Series Cameras
    Panasonic AW-HE100 PTZ Camera
    Sony EVI and BRC Series PTZ Cameras
    Canon VC-C50i and VC-C50iR
  • Joystick: 3-Axis, Hall-Effect, Non-contacting type with button on top
  • Internally Stored Presets: 98 (14 per PTZ camera attached)
  • Camera Control Parameters:
    Iris, Gain, Detail, Red Gain, Blue Gain, Focus on rotary encoders.
    Pan, Tilt and Zoom on joystick.
    Auto Iris, Backlight Compensation, One-Push White Balance, Auto
    White Balance, Fast Focus and Auto Focus on buttons.
    Note: not all functions are compatible with all cameras
  • LCD Display: 8 line backlit LCD display
  • Power Requirements: PowerRite 18 VDC, 2.75 Amp
  • Weight: 5 lbs. (2.27kg) approximate weight
  • Dimensions (H x W x D): 16″ (40.64cm) x 7″ (17.8cm) x 3.75″ (9.53cm)

    WHAT’S INCLUDED:

  • Vaddio Precision Camera Controller
  • 18 VDC Power Supply
  • AC Cord Set
  • Documentation

    Precision Camera Controller
