Electronic Components

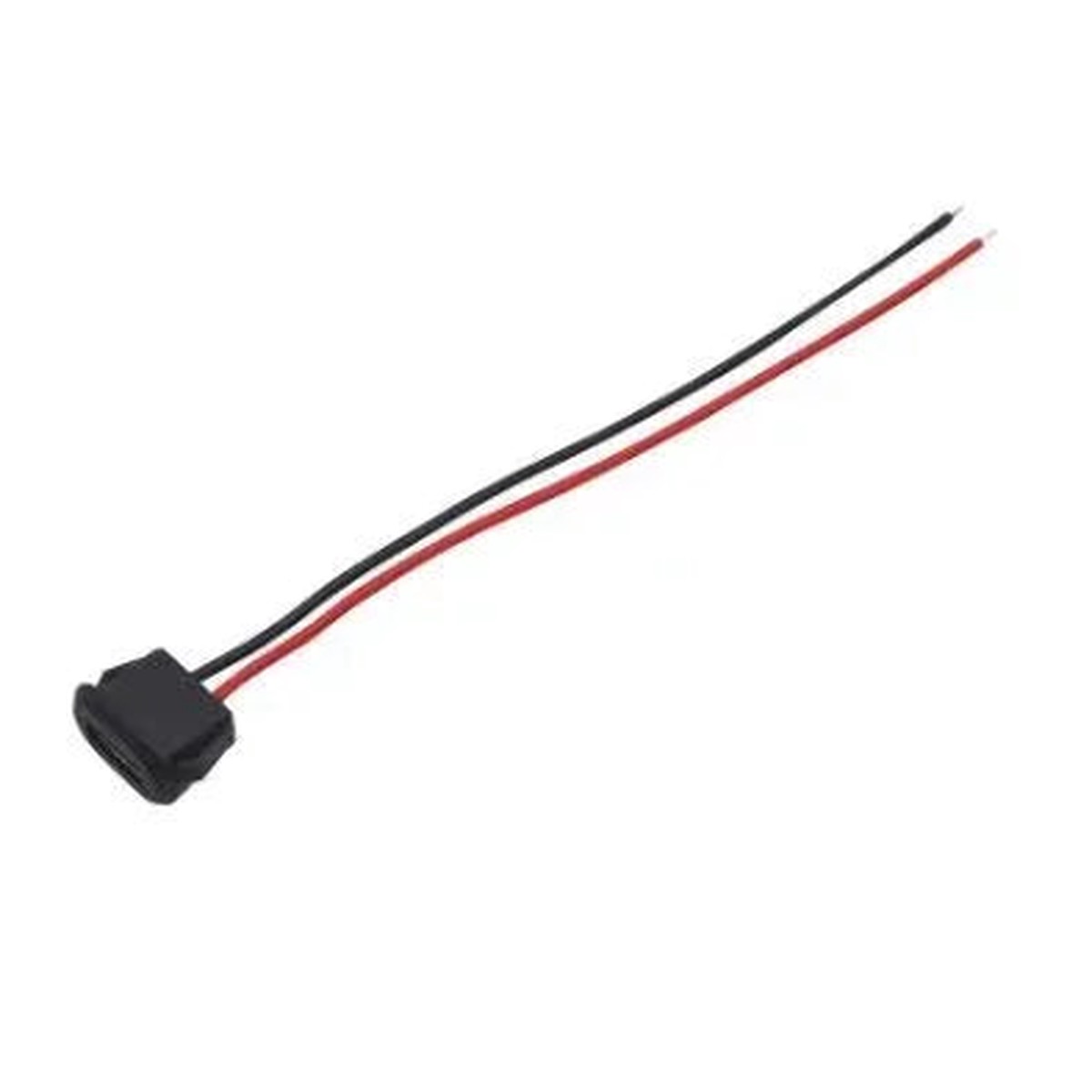

USB Type-C Connector Jack Female
Price
Original price was: $10.00.$7.00Current price is: $7.00.
Shopping information
Materials:
- Forming: LCP UL94 V-0
- Contacts: minimum copper alloy gold plating on the contact area, minimum tin plating on the soldering area 100uMin (lead-free),
- Shell: SUS304-H, T=0.300.03mm50u full nickel-plated.
Machinery:
- Insertion: 5~20N.
- Extraction: 820N Test
- Durability: 10000
Electrical:
- Current: 3A for VBUS; 1.25A for GND PIN0.25A for others
- Voltage: 20 volts
- Maximum withstand voltage: 100V AC R.M.S
- Contact resistance: 40mq
- Maximum insulation resistance: 100MQ
- Temperature range -25’C +85C
