Turn your USB devices on/off using a remote switch or a Raspberry Pi, Arduino and other devices!

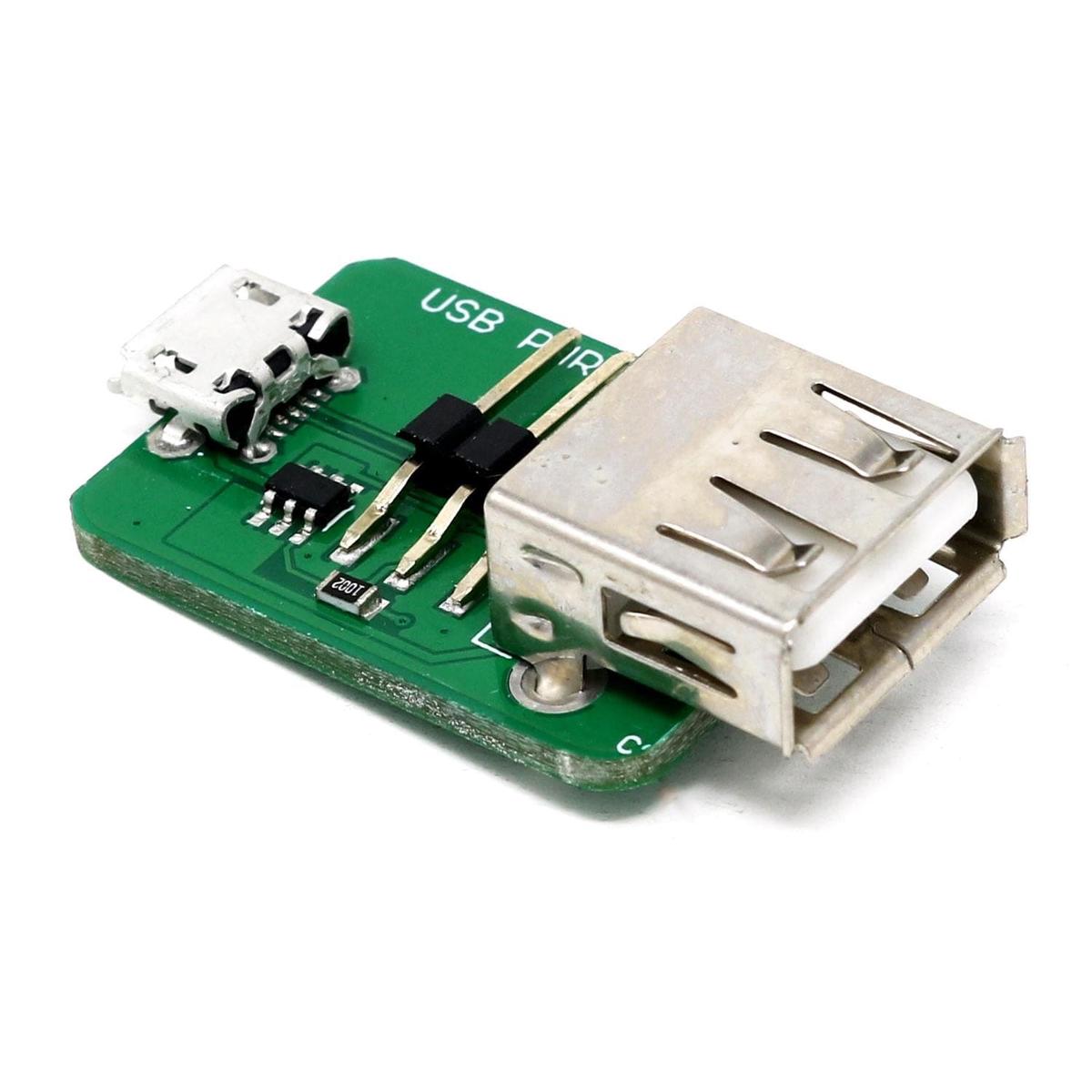

This module enables power to a USB device to be turned on/off via a USB power switch (MOSFET). Power goes IN via the micro-USB side and OUT via the USB-A side.

The maximum current rating for the switch is 2.5A. The onboard chip used is a SiP32508/9.

A micro-USB cable or USB-C cable may be required (not included).

See it used in this Pi Zero stopwatch project!

Configuration

• Supplied with the PD (pull-down) resistor set (Normally off)
• Connectors on top for GND / EN / 5V
• When the EN pin is connected to >2V (5V max) power to the device is turned on

Example usage

• Simple toggle/slide switch at the end of a (long) cable, connecting 5V to EN to turn on
• Raspberry Pi/Arduino – Connect GPIO pin to EN (and GND to GND) set GPIO pin to output, turn the pin on to enable power

The USB Power Switch can be used to control power for many USB powered devices such as Raspberry Pi Zero, Chromecasts etc.

Please Note

• Only for use with 5V supplies and devices – Using anything else may damage your power supply/charger/USB devices and the USB Power Switch board
• USB data lines are connected at all times
• PCB colour may vary
• Raspberry Pi/USB Power Monitor/Cables not included.
