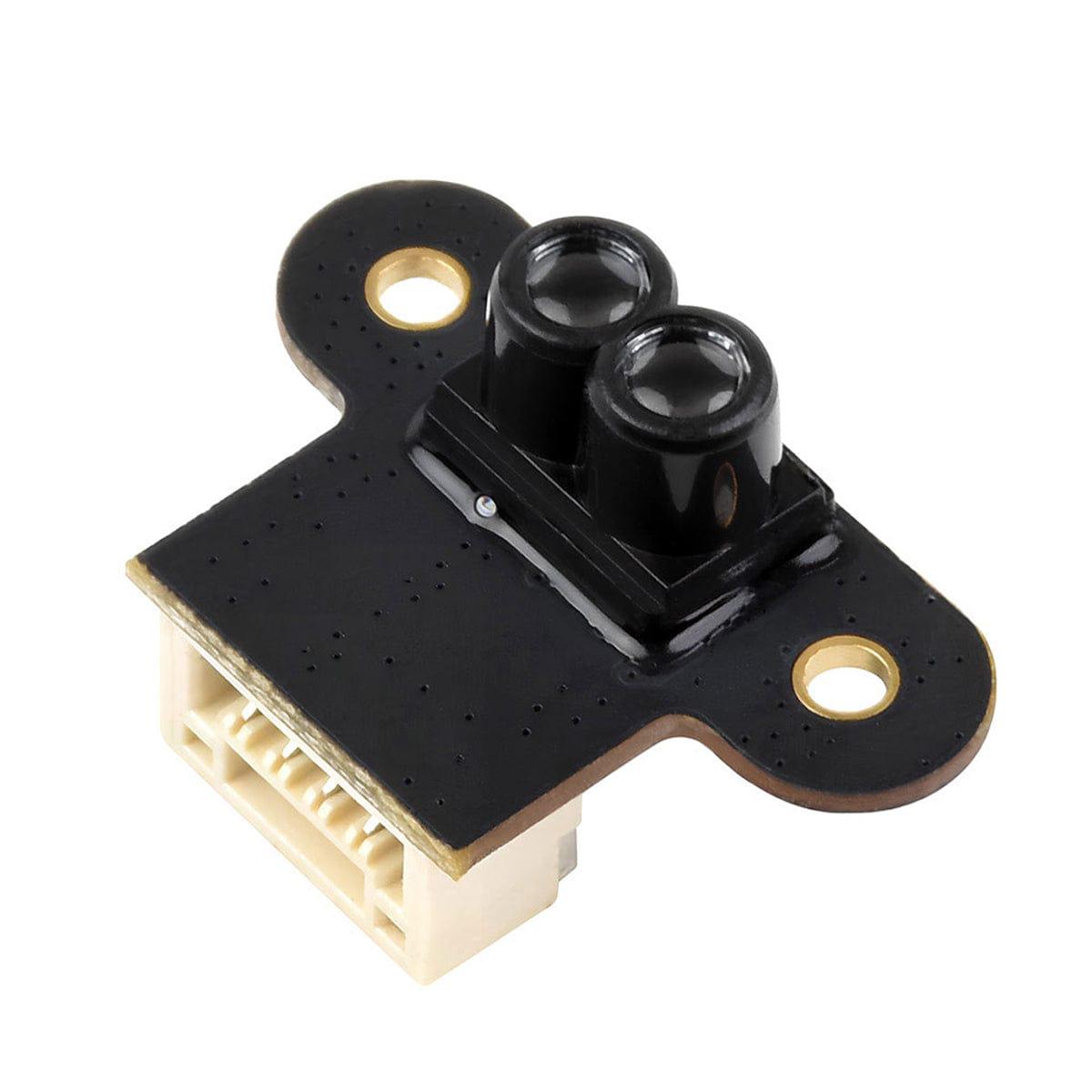

UART/I2C Mini Time of Flight Laser Range Sensor

Name: UART/I2C Mini Time of Flight Laser Range Sensor
SKU: ZB329532937
Availability: InStock

Price

SKU:

ZB329532937

Category: Electronic Components

Shopping information

Description

This ToF (Time of Flight) sensor measures depth and distance by using the time that it takes for photons to travel between two points, from the sensors emitter to a target and then back to the sensors receiver. It has a measuring range from 0.02 to 7.8 meters with an accuracy of 4 cm. The sensor uses UART, I/O and I2C communication connections, giving you flexibility with different projects.

Its narrow field of view improves light interference tolerance, so you can use it both indoors and outside. With an ambient light tolerance of up to 100,000 lux, you can use it in bright areas and it will still get the job done!

Note: The USB TO TTL is recommended for easy testing.

Specifications

Typical Measuring Range	0.02m ~ 7.8m
Typical Measuring Accuracy	0.02m ~ 7.8m 4cm
Wavelength	940nm
Field of View (FOV)	2 ~ 3
Communication Connections	Default: UART (3.3V TTL signal level)
I2C (cascading support, the slave address is 0x08+module ID)
complementary I/O level output (distance parameter is not available in this mode)
Baudrate	UART: 4.8Kbps ~ 3000Kbps (921.6Kbps by default)
I2C: up to 400Kbps
Power Supply	4.3 ~ 5.2V
Power Consumption	100mW (UART active output, 5.0V power supply, 20mA current)
Weight	1g
Operating Temperature	-10C ~ 60C
Dimensions	18.8mm x 12mm x 10.3mm (L x W x H)
