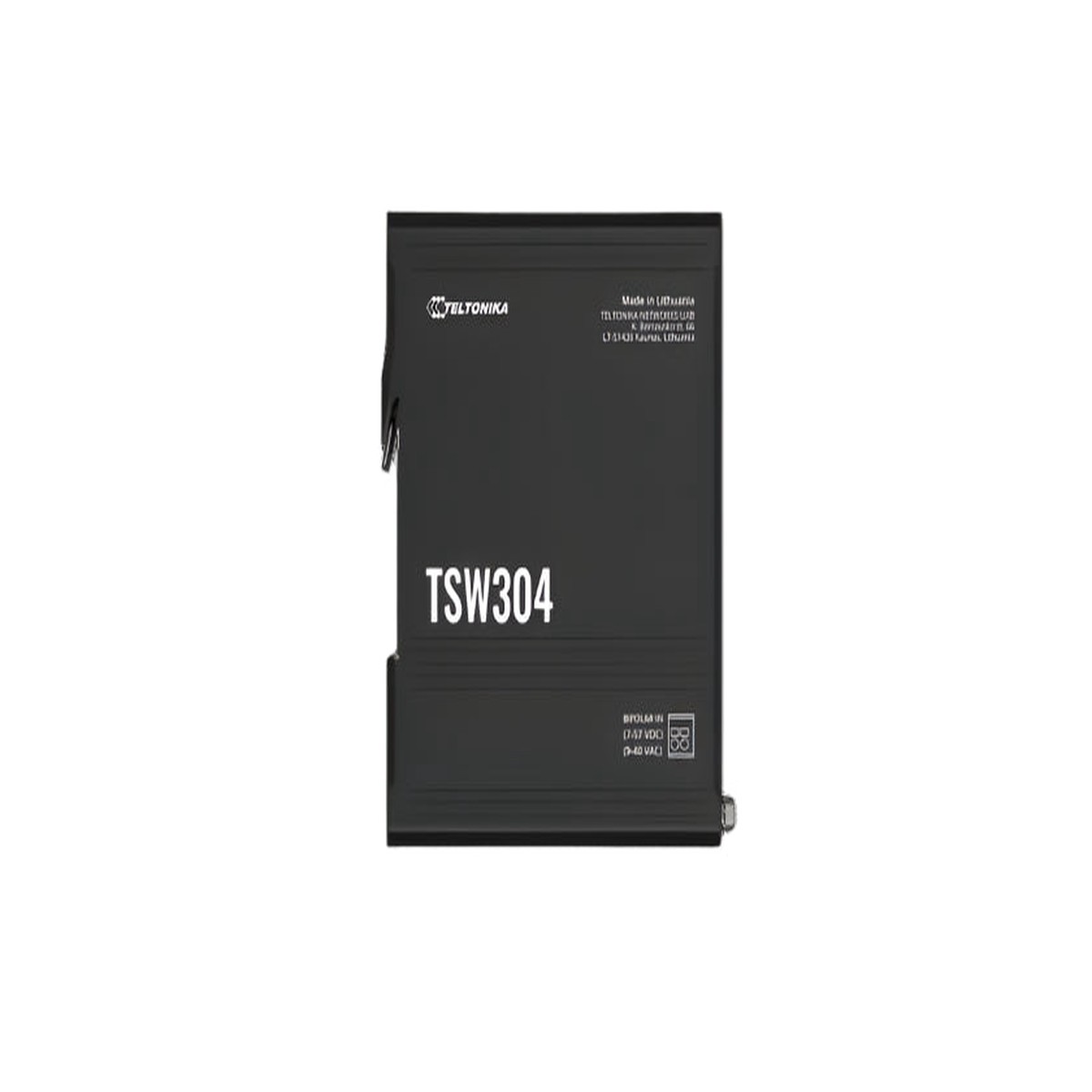

TSW304 – Din Rail Ethernet Switch

TSW304 - Din Rail Ethernet Switch

Electronic Components

TSW304 - Din Rail Ethernet Switch

Price
Original price was: $164.00.Current price is: $82.00.

SKU:

US31254443

Category:

Shopping information

Description

TSW304 is the tiniest Ethernet switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.

Standard package*

  • TSW304
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

Features

Ethernet

Feature Specification
Ports 4 x ETH ports, 10/100/1000 Mbps
Auto MDI/MDIX Crossover Support Yes
IEEE 802.3 Standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Performance Specifications

Specification Details
Bandwidth (Non-blocking) 8 Gbps
Packet Buffer 128 KB
MAC Address Table Size 2K entries
Jumbo Frame Support Up to 9216 bytes

Power

Feature Specification
Connector 2-pin industrial DC power socket
Input Voltage Range 7 – 57 VDC; 9 – 40 VAC
PoE (Passive) Supported through ETH1, Mode B, 9 – 30 VDC, not compatible with IEEE802.3af/at/bt standards
Power Consumption Idle: 0.26 W / Max: 1.44 W

Physical Interfaces

Feature Specification
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 8 x ETH status LEDs, 1 x Power LED
Power 1 x 2-pin industrial DC power socket
Other 1 x Grounding screw

Physical Specification

Feature Specification
Casing Material Aluminium housing
Dimensions (W x H x D) 102 x 25 x 81.5 mm
Weight 210 g
Mounting Options Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment

Feature Specification
Operating Temperature -40 C to 75 C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Feature Specification
Regulatory Certifications CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

Safety

Feature Specification
Standards EN IEC 62368-1:2020+A11:2020
Environmental Testing Standards IEC 60068-2-6:2007, IEC 60068-2-27:2008, IEC 60068-2-31:2008

Downloads

Manual & Documentation

TSW304 FLYER (EN)TSW304 DATASHEET (EN)

Links

TSW304 QUICK START GUIDE (EN)TSW304 USER MANUALCERTIFICATIONS & APPROVALSPRODUCT CHANGE NOTIFICATIONSTSW304 3D MODELS
