Tripp Lite DB9 surge protector Beige

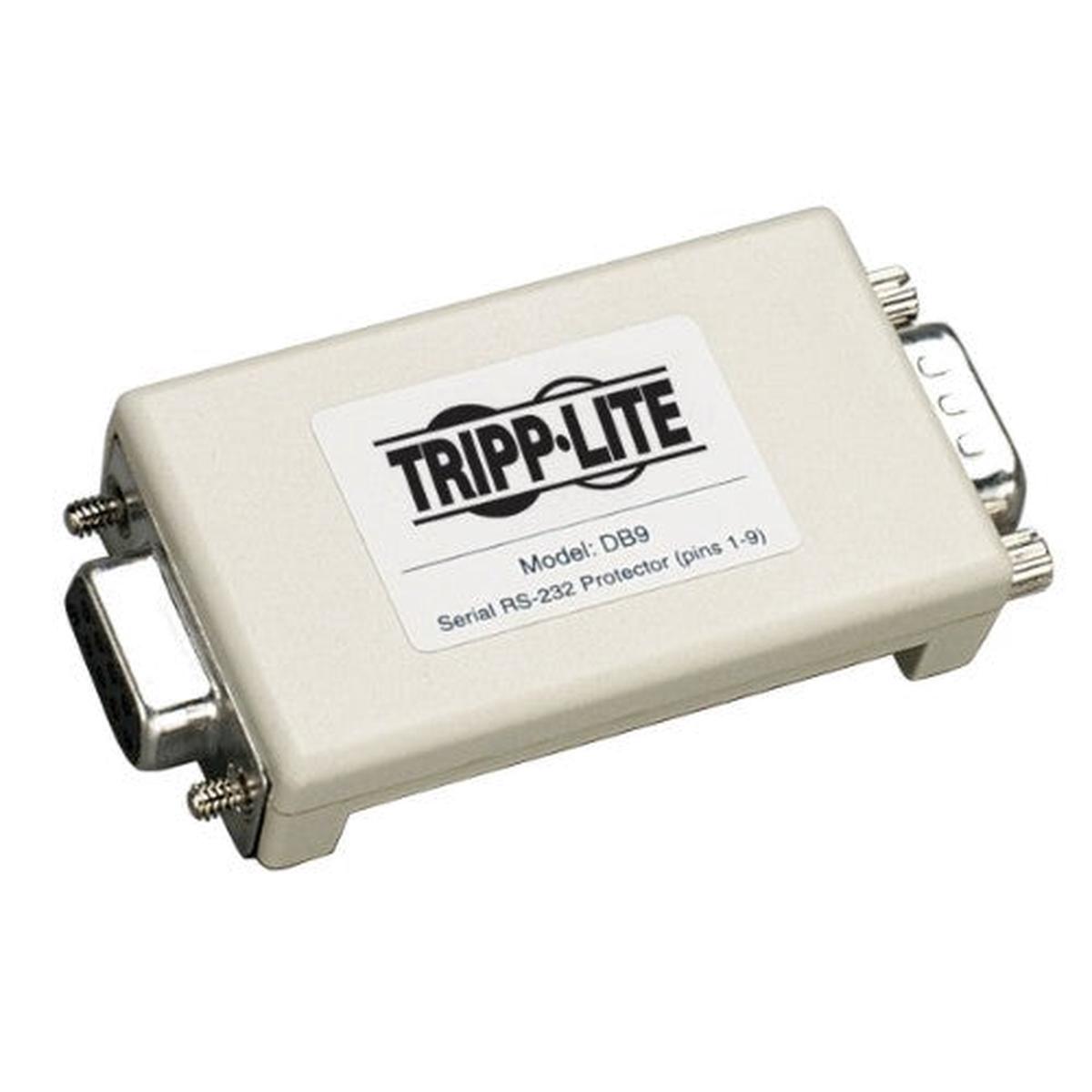

Name: Tripp Lite DB9 surge protector Beige
SKU: GMQO195049850
Availability: InStock

Price

SKU:

GMQO195049850

Category: Electronic accessories

Shopping information

Description

DataShield Serial In-Line Surge Protector, DB9

Key Features

Complete serial port (DB9) surge protection
Protects against the effects of electrostatic discharge

Description

This DB9 offers dataline surge suppression for DB9 serial ports of data terminal and data communications equipment, including PCs, printers, modems and more. User-configurable for use with male or female captive DB9 ports. Offers protection on all nine lines, plus D shell chassis. Convenient DB9 input and output connects directly to the protected port, obtaining a ground outlet from the computer chassis. Surge suppression is handled with balanced arrays of high-speed avalanche diodes that divert excess energies created by electrostatic discharges away from network interface connections. Network surge suppressors reduce blown interface cards, garbled transmissions, system lock-ups and hard equipment failure by safely shunting dataline surges to ground.

Specifications

Power
Nominal current output	340 A
Features
Country of origin	China
On/off switch	No
Product colour	Beige
Weight & dimensions
Weight	2.47 oz (70 g)
Width	1.38″ (35.1 mm)
Depth	2.85″ (72.4 mm)
Height	0.642″ (16.3 mm)
Packaging data
Package weight	2.47 oz (70 g)
Package width	3″ (76.2 mm)
Package depth	2″ (50.8 mm)
Package height	5″ (127 mm)
Other features
Country of origin	China
Telephone line protection	No
Network line protection	Yes
Input connections	DB9
Audio/video line protection	No
Logistics data
Master (outer) case width	19″ (482.6 mm)
Master (outer) case length	23″ (584.2 mm)
Master (outer) case height	11.5″ (292.1 mm)
Products per master (outer) case	12 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332010831
Master (outer) case gross weight	30.7 oz (870 g)
