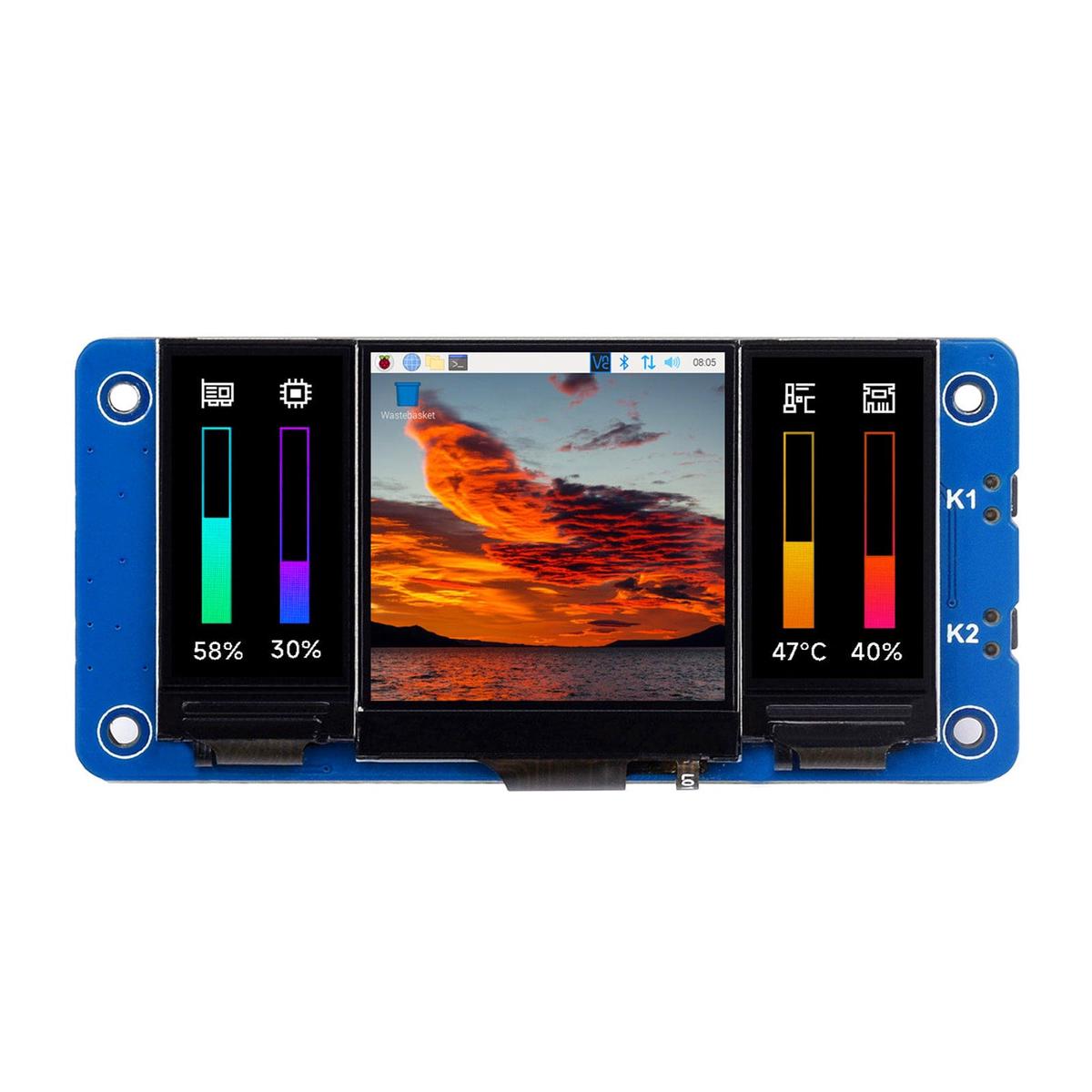

This Triple LCD HAT for Raspberry Pi features three LCD screens: a 1.3″ IPS main screen and two 0.96″ IPS secondary screens that have a rich 65K colour display, and a 240 x 240 (main screen) and 160 x 80 (secondary screens) resolution for sharp and detailed visuals.

The main LCD screen is powered by the ST7789 driver chip, providing high-quality image rendering and efficient performance. The dual secondary LCD screens are equipped with the ST7735S driver chip, offering crisp and clear visuals. All screens use SPI communication for seamless integration with the Raspberry Pi, providing a versatile platform for various projects like monitoring systems, multi-data displays, or innovative user interfaces.

Note: Raspberry Pi is NOT included

Features

• Standard Raspberry Pi 40-Pin GPIO header, compatible with Raspberry Pi series boards
• 1.3″ IPS LCD Main Screen with built-in ST7789 driver chip, SPI interface communication, wide viewing angle, supports 65K colour display, 240 x 240 resolution
• Dual 0.96″ LCD secondary screens with built-in ST7735S driver chip, SPI interface communication, supports 65K colour display, 16080 resolution, can be used to display key information, status indicator messages or small graphics
• Onboard 2x user-defined keys for extended applications
• Comes with online development resources and manuals (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)

Specifications

Resources

• Product Wiki
• Schematic
• 1.3inch LCD Module Datasheet
• 0.96inch LCD Module Datasheet

Pinout

Package Contents

• 1x Zero LCD HAT (A)
• 1x Standoffs pack
