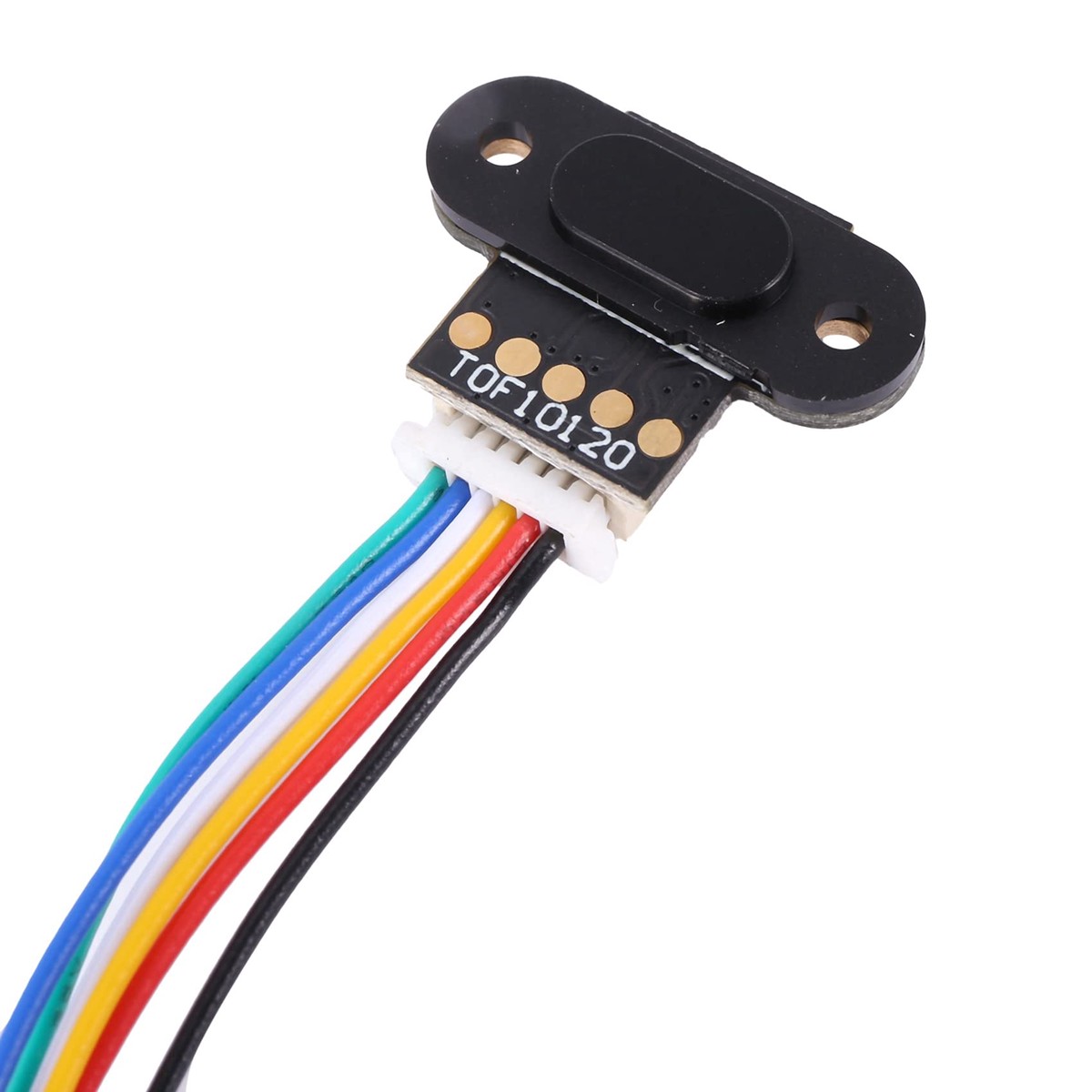

The TOF10120 and TOF05140 are highly compact Time-of-Flight (ToF) laser ranging sensor modules capable of measuring absolute distances from 10cm to 180cm (100mm to 1800mm). Unlike ultrasonic or infrared sensors, these use a 940nm invisible laser pulse to measure the exact round-trip time of flight. This makes their distance readings highly accurate and completely independent of the target object’s color, surface reflection, or texture.Both modules feature an integrated microcontroller that handles the complex ranging calculations internally, allowing them to output clean distance values directly in millimeters over UART (TTL Serial) or I2C (IIC) interfaces.Technical Specifications

• Ranging Distance: 100mm to 1800mm (10cm – 180cm)
• Operating Voltage: 3.0V to 5.0V DC (compatible with 3.3V and 5V microcontrollers)
• Operating Current: ~35mA
• Laser Source: 940nm (Class 1 eye-safe under normal operating conditions)
• Communication Formats: UART (9600 baud, 8 data bits, no parity, 1 stop bit) and I2C
• Default I2C Address: 0x52 (7-bit address derived from 0xA4)
• Response Speed: Max 30ms sampling rate

Pinout ConfigurationThe sensor break-out board typically breaks out to a 6-pin layout using a standard jumper cable assembly:
