CODE: STEL-MS12ACM | HYDRAULIC MOBILE LIFTING TABLE

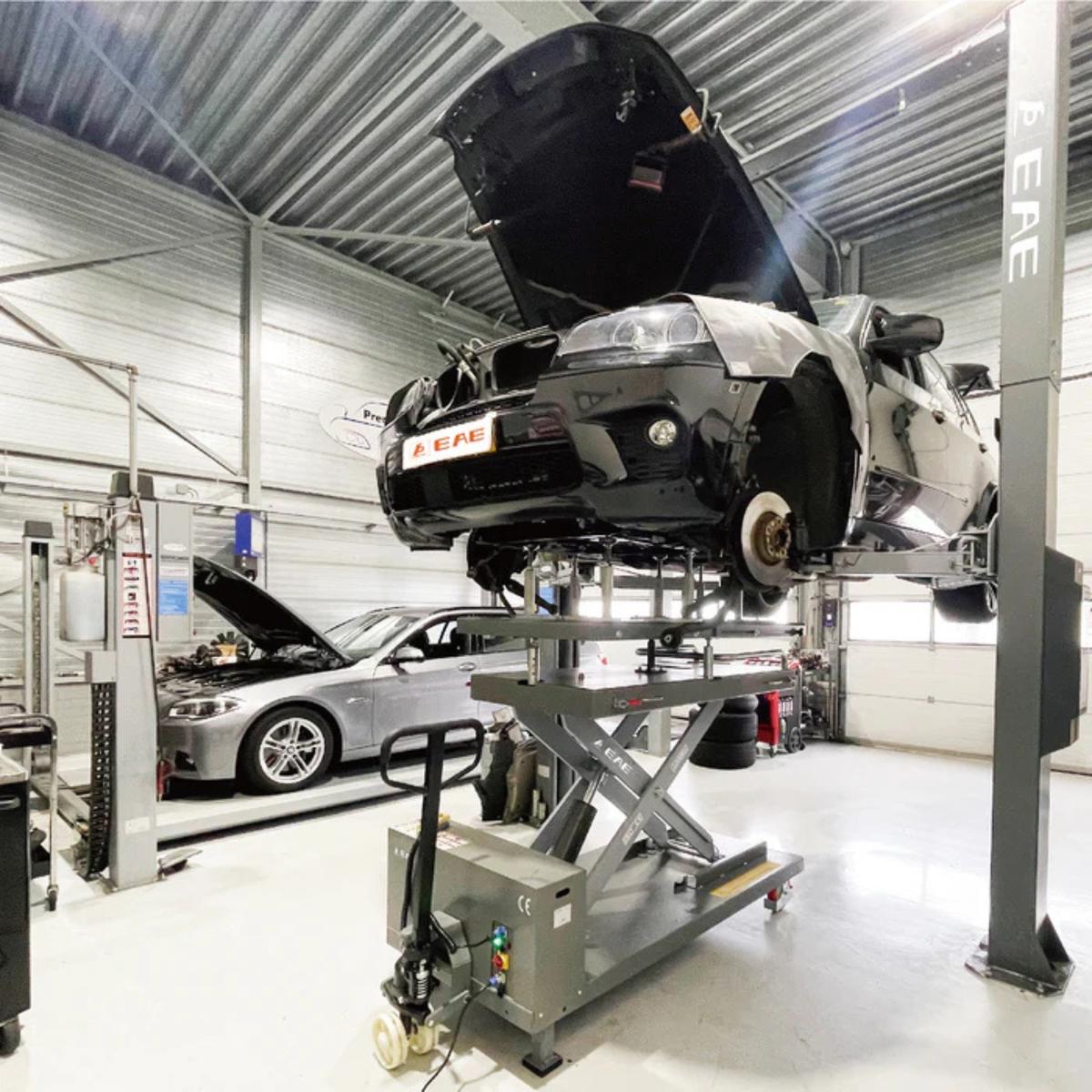

HYDRAULIC MOBILE LIFTING TABLE

1200KG lift capacity

It is helpful to assemble and disassemble battery packs for electric vehicles and engine, gearbox, drive axle, fuel tank, suspension, bracket and chassis components for traditional vehicles.

A max of 310mm extension in length. Fit large-sized loads

The platform suspended can move freely within a radius of 30mm while the lower platform can move within a radius of 20mm which satisfies multiple positioning needs.

Reserved holes(100mmx100mm)on the working table for positioning and fixing components with specialized fixture.

Reserved holes for grease injection.

Maintain an ease and stable running and prolong the service time of shaft bearings.

Oil hose with double steel wire fabrications, which has passed pressure test under 40MPa, can work under twice the nominal working pressure without breakage.

Electrically released mechanical locking system.

The lifting table also features a dual-speed system for fast and precise lifting.

24V Control System Three-pin plug.

Hand-held button control with stop function.

More details in stel.co.nz
