StarTech.com HSB3SATSASBA disk array 0 TB Black
Shopping information

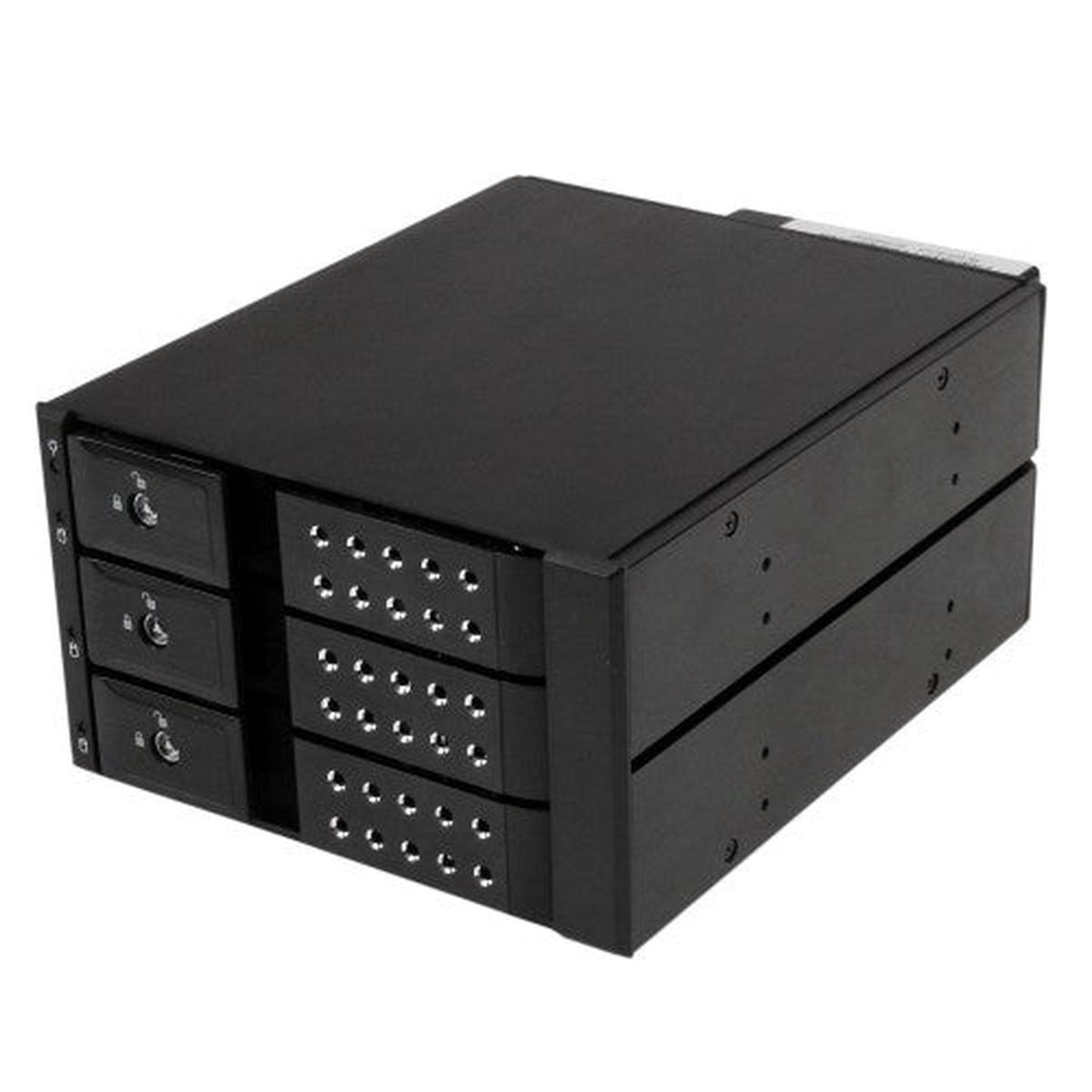

StarTech.com 3 Drive Bay Aluminum Trayless Hot Swap Mobile Rack Backplane with Fan & Lock for 3.5in SAS II / SATA III – 6 Gbps Hard Drive
Description
Easily connect and hot swap up to three 3.5 SATA/SAS hard drives from two 5.25 bays
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5″ drives from the front of your computer, by turning two 5.25″ bays into a hot-swappable interface for you to connect up to three 3.5 SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives — an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Hot-swap drive bays | Yes |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD |
| Number of storage drives supported | 3 |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive size | 3.5″ |
| Storage drives installed | No |
| Maximum supported storage capacity | 12 TB |
| Data transfer rate | 6 Gbit/s |
| Ports & interfaces | |
| Number of SATA power connectors | 2 |
| SATA power connector type | SATA 15-pin |
| SATA host port | Yes |
| Host ports | 3 |
| Technical details | |
| Backplanes support | Yes |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Internal | No |
| LED indicators | Activity, Power |
| Data transfer rate | 6 Gbit/s |
| Harmonized System (HS) code | 84717020 |
| Compliance certificates | RoHS |
| Design | |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Internal | No |
| LED indicators | Activity, Power |
| Performance | |
| Backplanes support | Yes |
| Weight & dimensions | |
| Width | 5.71″ (145 mm) |
| Depth | 7.64″ (194.1 mm) |
| Weight | 2.65 lbs (1.2 kg) |
| Height | 4.33″ (110 mm) |
| Package width | 7.05″ (179 mm) |
| Package depth | 9.96″ (253 mm) |
| Package height | 4.84″ (123 mm) |
| Package weight | 2.65 lbs (1.2 kg) |
| Packaging data | |
| Package width | 7.05″ (179 mm) |
| Package depth | 9.96″ (253 mm) |
| Package height | 4.84″ (123 mm) |
| Package weight | 2.65 lbs (1.2 kg) |
| Cables included | SATA |
| Packaging content | |
| Cables included | SATA |
| Operational conditions | |
| Storage temperature (T-T) | -20 – 60 C |
| Operating temperature (T-T) | 0 – 55 C |
| Operating relative humidity (H-H) | 5 – 85% |
| Other features | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case width | 15.2″ (386 mm) |
| Master (outer) case length | 20.6″ (523 mm) |
| Master (outer) case height | 11.4″ (290 mm) |
| Harmonized System (HS) code | 84717020 |
