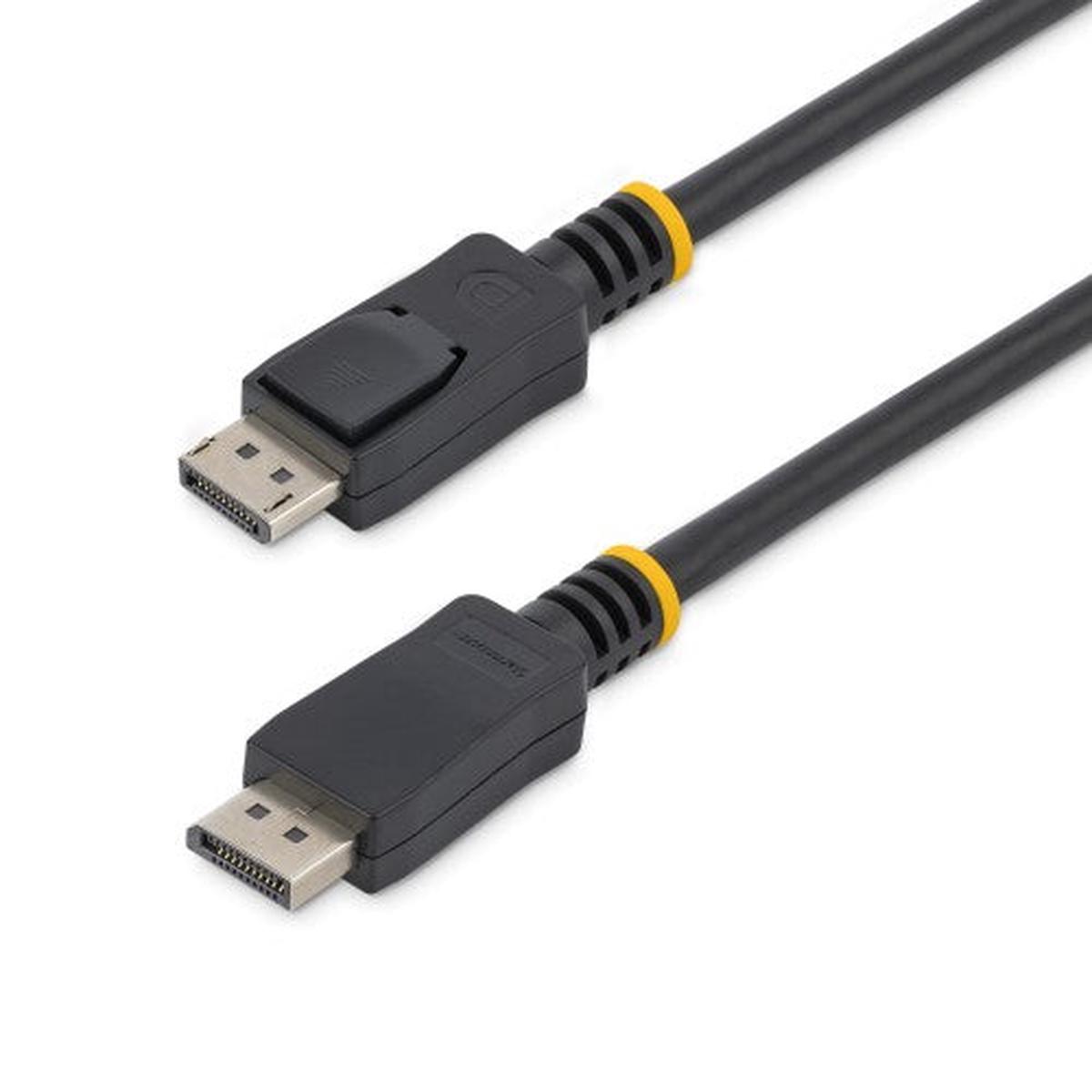

StarTech.com DISPL2M DisplayPort cable 78.7" (2 m) Black

Name: StarTech.com DISPL2M DisplayPort cable 78.7" (2 m) Black
SKU: GMQO195047134
Availability: InStock

Price

SKU:

GMQO195047134

Category: Electronic accessories

Shopping information

Description

StarTech.com 2m (6ft) DisplayPort 1.2 Cable – 4K x 2K Ultra HD VESA Certified DisplayPort Cable – DP to DP Cable for Monitor – DP Video/Display Cord – Latching DP Connectors (DISPL2M)

Key Features

HIGH PERFORMANCE CABLE: This 2m (6ft) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
SPECS: 2 m (6 ft) / Black / DisplayPort v1.2 / DP Latching Male to Male / 28 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: HBR 2, MST, GTC / Lifetime Warranty

Description

Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort-equipped devices

The DISPL2M 2m DisplayPort 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI or dual link DVI.

The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

The DISPL2M is backed by StarTech.coms Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

The StarTech.com Advantage

Specifications

Features
Cable shielding	Aluminum mylar foil
Latching connectors	Yes
Cable rating	CMG (CM)
Number of conductors	19
DisplayPort Content Protection (DPCP)	Yes
Product colour	Black
Cable length	78.7″ (2 m)
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Nickel
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	28
DisplayPort version	1.2
Bandwidth	21600 MB/s
Maximum resolution	3840 x 2400 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA)
HDCP	Yes
Plug and Play	Yes
Maximum refresh rate	60 Hz
Multi-Stream Transport (MST)	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Certificates
Compliance certificates	RoHS, CE
Weight & dimensions
Cable diameter	0.287″ (7.3 mm)
Weight	5.42 oz (153.6 g)
Package width	7.87″ (200 mm)
Package depth	8.66″ (220 mm)
Package height	1.26″ (32 mm)
Package weight	5.33 oz (151 g)
Packaging data
Cable diameter	0.287″ (7.3 mm)
Weight	5.42 oz (153.6 g)
Package width	7.87″ (200 mm)
Package depth	8.66″ (220 mm)
Package height	1.26″ (32 mm)
Package weight	5.33 oz (151 g)
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS, CE
Logistics data
Products per master (outer) case	70 pc(s)
Master (outer) case width	13″ (330 mm)
Master (outer) case length	19.7″ (500 mm)
Master (outer) case height	11″ (280 mm)
Harmonized System (HS) code	84733080
