Sim808 GSM/GPRS Module

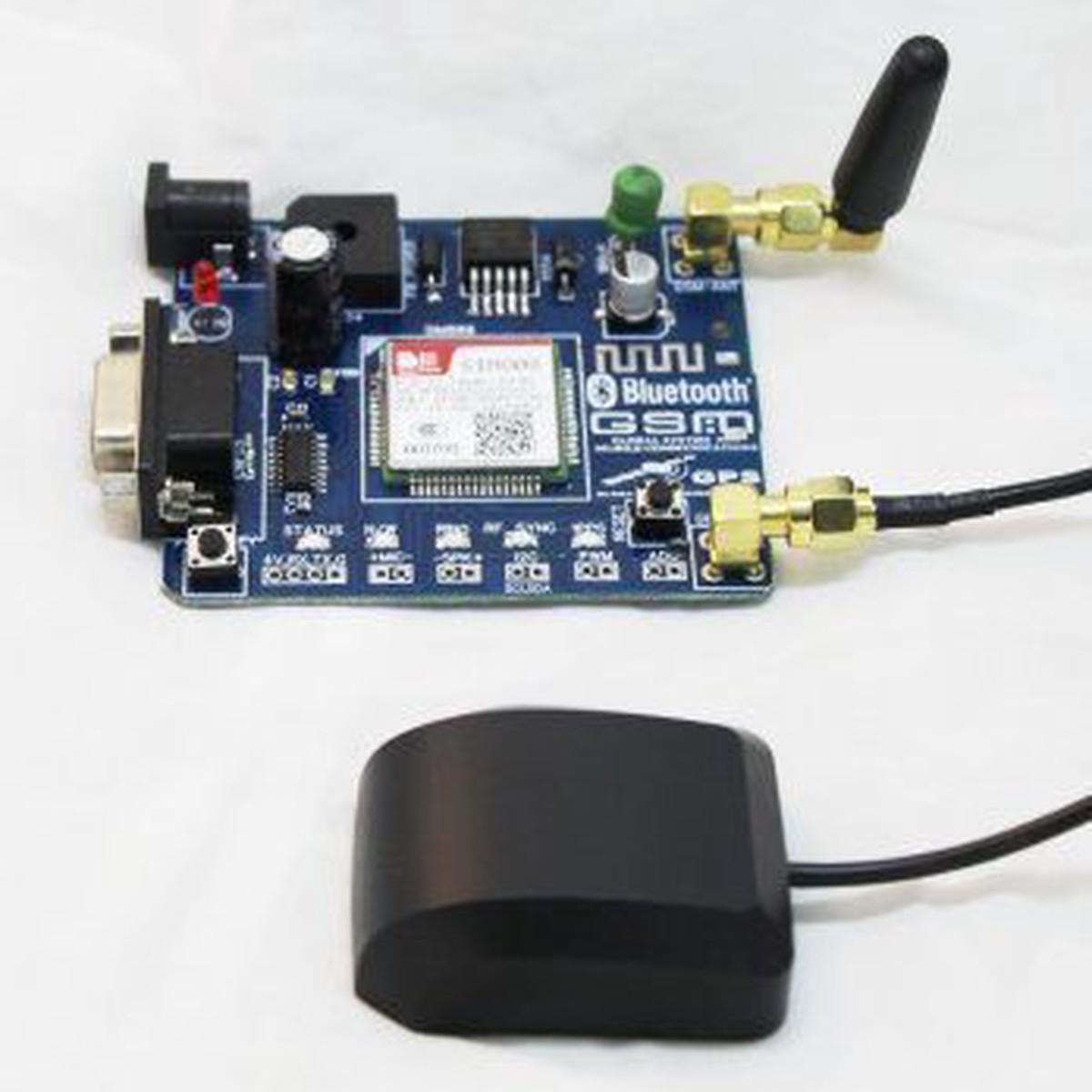

The SIM808 Bluetooth Compatible GSM/GPRS/GPS Development Board is designed for Arduino and Raspberry Pi compatibility. It incorporates the SIM808 module, enabling GSM communication and GPS functionality. With this board, you can easily send and receive SMS, track locations, and even create your own cell phone. The SIM808 module serves as both a GSM communicator and a GPS receiver.

The board requires a power supply of 5-26V, and when the power supply is less than 2A, a 9V power supply is necessary. It offers a direct power supply port for convenient access. For battery power supply, a lithium battery ranging from 3.5-4.2V is suitable. The board supports computer debugging through a USB-TTL connection, making it portable and user-friendly. It provides two sets of SMA antenna ports for GPS and GSM antennas. Additionally, it offers two sets of IPX ports, facilitating antenna embedding in an aluminum box. The board features a single TTL serial port, allowing for flexible switching between GPS and GSM functions.

Note: Please note that the new version will use the new AT Command for the GPS function, and use the new library. Quadband GSm850/900/1800/1900MHz, GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load), GPRS mobile station class B, Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands).

Sim808 Pinout:

Pinout OfSim808 GSM-GPRS Module

Features

SIM808 GSM :

• Supports Quad-band 850/900/1800/1900MHz, compatible with all 2G networks all around the world.
• Inner MT3337 GPS receiver, -165dBm precision, control on a same serial port.
• Earphone/ microphone outputs on a card or external 32-ohm speaker + supports voice calls with an electret microphone.
• Sending and receiving SMS.
• Sending and receiving GPRS data (TCP/IP, HTTP vb).
• UART communication with automatic baud rate settings.
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Comply with GSM phase 2/2 +
• Class 4 (2 W @ 850 / 900MHz)
• Class 1 (1 W @ 1800 / 1900MHz)
• Support low power consumption mode: 100mA @ 7V-GSM mode
• Support AT command control (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)
• Supports GPS satellite navigation technology
• Support LED status indicator: Power supply status, network status, and operating modes
• Working environment: -40 ? ~ 85 ?

SIM808 GPS :

• 22 tracking/66 acquisition channel
• GPS L1 C/A code
• Precision: Tracking: -165dBm,
• Cold start: -148dBm
• Finding Location Time(typical): Cold start: 32sn, Hot start: 1sn, Warm start: 5sn
• Accuracy: ~2.5m
