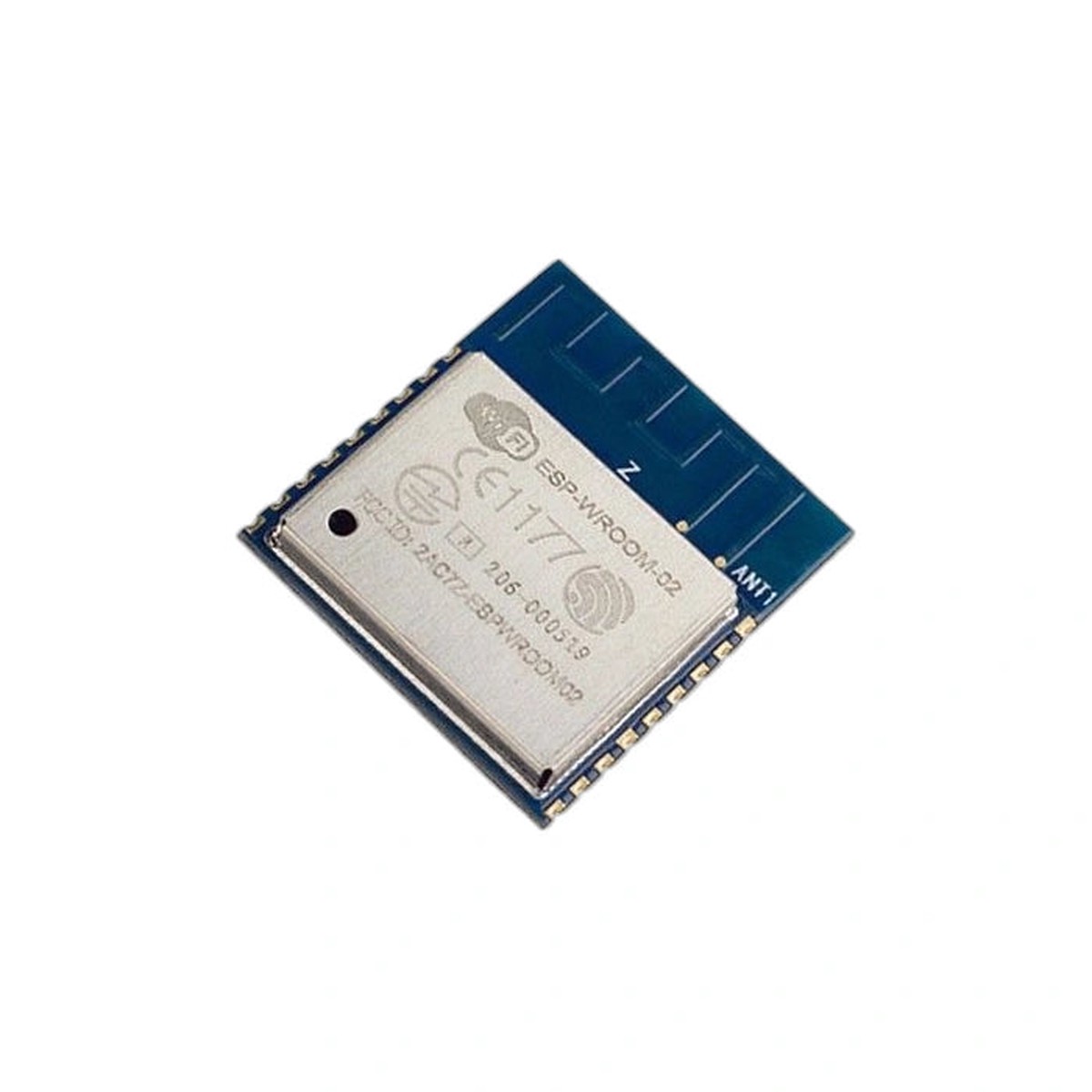

TheWioCore is an ESPWROOM02 WiFi IoT module preloaded with Wio platform firmware, making it fully compatible with Wio Link and Wio Node hardware/software. It integrates TCP/IP stacks, multiple peripheral interfaces, and advanced power management for ultralow power operation. Its compact footprint (18 20 mm) makes it ideal for wearables, mobile devices, and embedded IoT applications.

Description

The MCU module is the brain of any IoT board. To simplify IoT development, Seeed introduced Wio Link and later Wio Node, both based on the popular ESP8266 SoC. The WioCore builds on ESPWROOM02, replacing the original firmware with Wio platform firmware. This ensures full compatibility with Wio Link and Wio Node, while offering cloud integration and OTA updates. Certified (FCC, CE, KCC, TELEC, LCIE, IC), the WioCore delivers reliable WiFi connectivity and ultralow power consumption, making it one of the best solutions for wearables, mobile devices, and IoT applications.

Key Features

• ESP8266 embedded (FCC, CE, KCC, TELEC, LCIE, IC certified)
• Wio Link and Wio Node compatible
• Integrated TCP/IP stacks, 10bit ADC, HSPI/UART/PWM/I2C/I2S interfaces
• Ultracompact size (18 20 mm) for spacesensitive designs
• Advanced power management for ultralow power operation

Specifications

• Certificates: FCC / CE / TELEC / RoHS
• WiFi protocols: 802.11 b/g/n
• Frequency range: 2.42.5 GHz
• Operating voltage: 3.03.6V
• Average operating current: 80 mA
• Operating temperature: -40C to 125C
• Package size: 18 20 3 mm
• Flash memory: 4 MB
• Firmware: Wio Firmware with OTA capability
• User interface: Cloud server, Android/iOS App

Documents

• Libraries and documentation: Wiki
• Technical discussion: Forum
• Community projects: Recipe platform

Certification

Technical Details

Part List

Application Scenarios

• Wearable devices
• Mobile devices
• Smart home IoT nodes
• Cloudconnected sensors
• Lowpower embedded systems

FAQ

1. How is WioCore different from ESPWROOM02? It is hardwareequivalent but comes with Wio firmware, ensuring compatibility with Wio Link/Node and cloud services.

2. Does it support OTA updates? Yes, via the Wio platform firmware.

3. What certifications does it have? It is FCC, CE, TELEC, KCC, LCIE, IC certified, suitable for global deployment.

4. Is it suitable for batterypowered devices? Yes. With advanced sleep modes, it achieves extremely low power consumption.

5. What interfaces are available? HSPI, UART, PWM, IC, IS, and a 10bit ADC.
