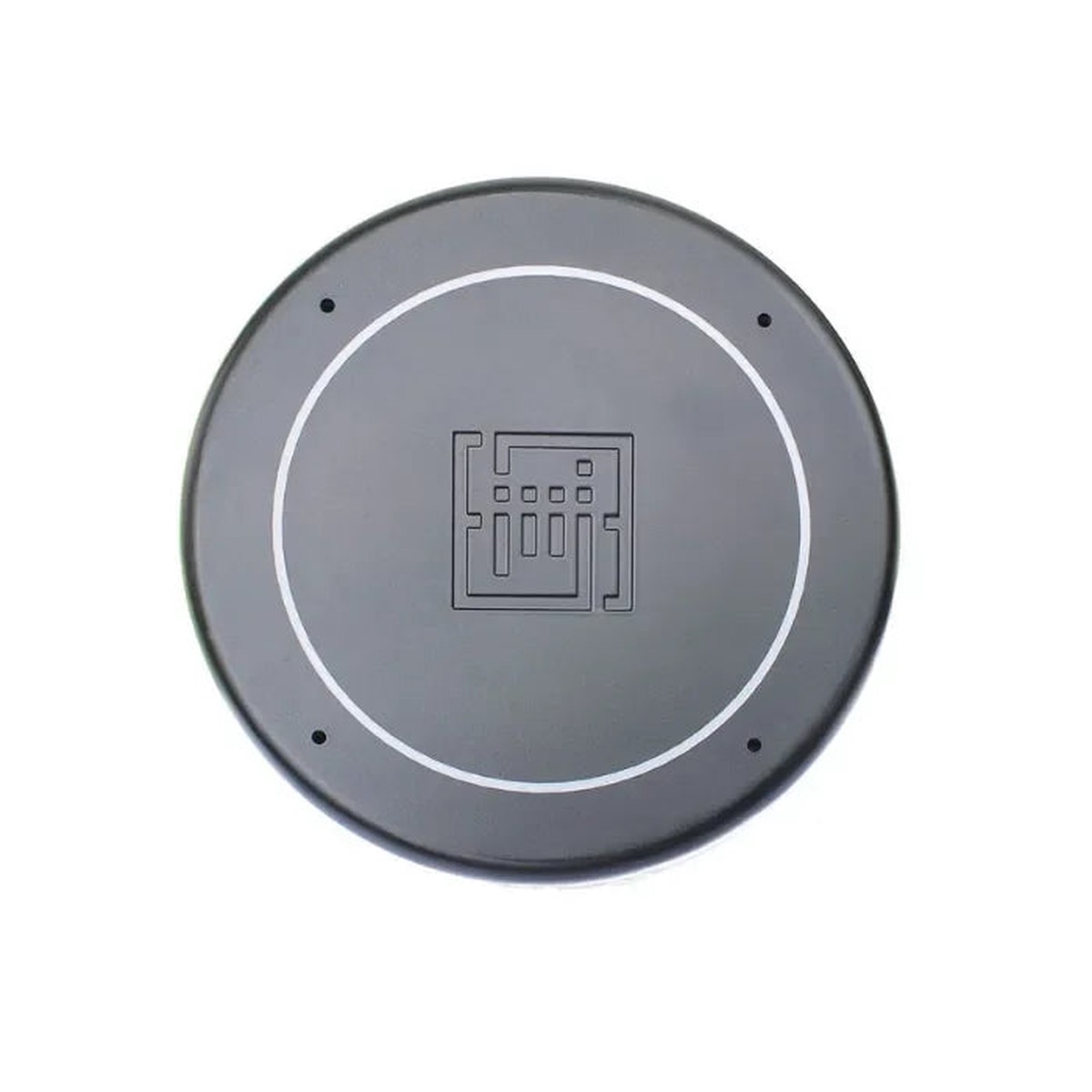

Over the past year,ReSpeaker Mic Array V2.0 has sold over 10,000 units . Customers asked for a complete enclosed device with professional acoustic performancenow Seeed delivers the ReSpeaker USB Mic Array!

A ready-to-use, plug-and-play microphone array with a mold-injected enclosure for durability, optimized acoustics, and faster integration into your solutions.

Key improvements vs. Mic Array V2.0:

• Optimized power circuitry for higher efficiency
• Audio jack & micro USB port relocated to the back for cleaner integration

Applications

• Meeting Rooms Clear voice capture for conferences, multi-speaker environments, and transcription systems
• Smart Home Voice command interface for lights, appliances, and automation routines
• Device Automation Voice-triggered workflows for kiosks, vending machines, smart mirrors, and more
• In-Car Assistant Hands-free communication and navigation
• Healthcare Voice-based monitoring, reminders, and patient interaction

Features

• Plug & Play No drivers needed. Works with Windows, Mac, Linux, and Android (OTG)
• Far-Field Voice Pick-Up Detects voices up to 5 meters with 360 coverage
• Advanced Acoustic Algorithms: DOA (Direction of Arrival), AEC (Echo Cancellation), AGC (Gain Control), NS (Noise Suppression)
• Built-in Audio Jack Connect headphones or external speakers (speaker not included)

Specifications

Hardware Overview

• XMOS XVF-3000 DSP with AEC, beamforming, dereverberation, noise suppression, gain control
• MP34DT01-M Omnidirectional digital MEMS microphone
• RGB LED Three-color indicator
• USB Port Power and control
• 3.5mm Headphone Jack Audio output for headphones or active speakers
• TLV320AIC3104 Low-power stereo audio codec with headphone amplifier

Documents

• ReSpeaker USB Mic Array | Seeed Studio Wiki

Part List
