Description

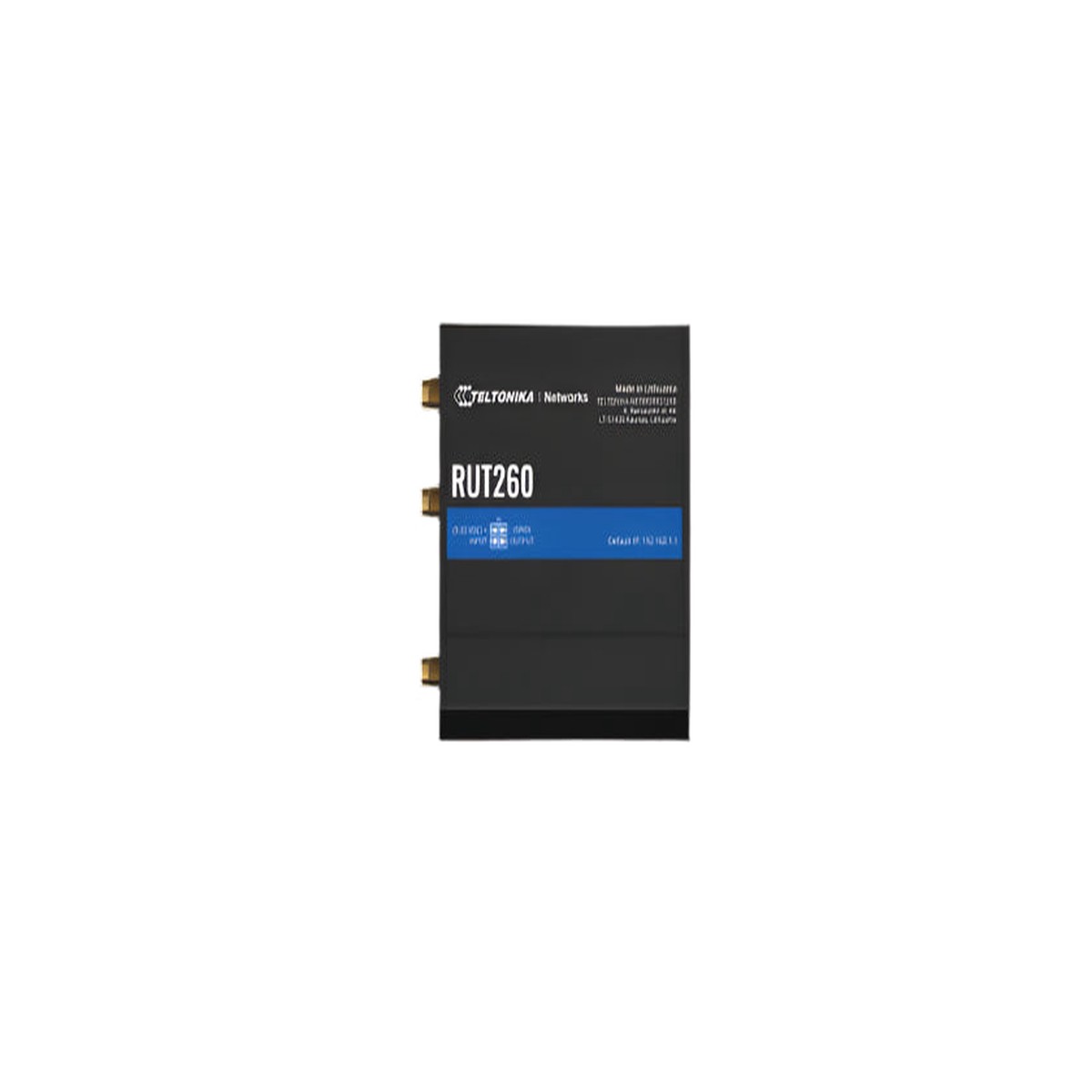

RUT260 is a Teltonika Networks LTE Cat 6 cellular router with WAN failover. Balancing the key features of the RUT240 and RUT360, this cellular router is powerful, lightweight, and supports a wide variety of industrial protocols, including MQTT, SNMP, Modbus, and more.

Standard package*

• Router RUT260
• 9 W PSU
• 2xMobile antennas (swivel, SMA male)
• 1xWi-Fi antenna (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• Packaging box

*Standard package contents may differ based on standard order codes.

Features

Mobile Features

Feature	Description
Mobile Module	4G LTE Cat 6, 300 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps
SMS	Send/read SMS, SMS autoreply, SMPP
USSD	Supports sending and reading USSD
SIM Management	SIM PIN, APN, mobile data control

Wireless Features

Feature	Description
Wireless Mode	802.11b/g/n, AP, STA
Wi-Fi Security	WPA2/WPA3, AES-CCMP, EAP-TLS
Users	Up to 50 simultaneous connections

Network & Routing

Feature	Description
Routing	Static, Dynamic (BGP, OSPF, RIP)
VoIP Passthrough	NAT helpers for H.323, SIP-alg
QoS/Traffic Management	Traffic prioritization, SQM, WMM support

Security Features

Feature	Description
Authentication	Pre-shared key, certificates, RADIUS
Firewall	Configurable rules, DMZ, NAT support
Attack Prevention	DDOS, port scan, SYN flood prevention

VPN Features

VPN Type	Supported Features
OpenVPN	Multiple clients/server, 27 encryption methods
IPsec	XFRM, IKEv1, IKEv2, 14 encryption methods
GRE	GRE tunnel & IPsec support
PPTP, L2TP	Client/server, L2TP over IPsec
Stunnel	TLS encryption for clients/servers
DMVPN	Scalable IPsec VPNs, Phase 2 & 3 support
SSTP	SSTP client support
ZeroTier	ZeroTier VPN client support
WireGuard	Client & server support
Tinc	Encryption, authentication, and compression

OPC UA & MODBUS Features

Protocol	Features
OPC UA	Client/server modes, TCP connection
MODBUS	Server/client modes, custom register block requests, multiple data formats (INT, UINT, HEX, etc.)

Data to Server

Protocol	Description
HTTP(S)	Extracts parameters and sends them to a server via HTTP or HTTPS protocol
MQTT	Sends and receives data from multiple sources using MQTT protocol
Azure MQTT	Enables integration with Azure IoT services for data transmission
Custom LUA	Utilizes custom LUA scripts for data extraction and server communication

MQTT Gateway

Feature	Description
Modbus MQTT Gateway	Facilitates sending commands and receiving data from a Modbus server via MQTT.

DNP3

Feature	Description
Supported Modes	Station, Outstation
Supported Connection	TCP

DLMS

Feature	Description
DLMS Support	Standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection	TCP

DLMS

Supported modes	Client
Supported connection types	TCP
COSEM	Allows to scan meter COSEM objects for automatic detection and configuration

API

Feature	Description
Teltonika Networks Web API (beta) support	Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

Feature	Description
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote Management System (RMS)

IoT Platforms

Platform	Description
ThingWorx	Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity – Cloud of Things	Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub	Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core	Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality

System Characteristics

Feature	Description
CPU	Mediatek, 580 MHz, MIPS 24KEc
RAM	128 MB, DDR2
FLASH storage	16 MB, SPI Flash

Firmware / Configuration

Feature	Description
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep settings	Update FW without losing current configuration
Factory settings reset	A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

Firmware Customization

Feature	Description
Operating system	RutOS (OpenWrt based Linux OS)
Supported languages	Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools	SDK package with build environment provided
GPL customization	You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients needs
Package Manager	The Package Manager is a service used to install additional software on the device

Input / Output

Feature	Description
Input	1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
Output	1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events	Email, RMS, SMS
I/O juggler	Allows to set certain I/O conditions to initiate event

Power

Feature	Description
Connector	4-pin industrial DC power socket
Input voltage range	9 – 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)	Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC
Power consumption	Idle: < 2 W, Max: < 6.5 W

Physical Interfaces

Feature	Description
Ethernet	2 x RJ45 ports, 10/100 Mbps
I/Os	1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs	2 x Connection type status, 5 x Mobile connection strength, 1 x LAN status, 1 x WAN status, 1 x Power
SIM	1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder, eSIM (Optional – different hardware required; contact your sales manager)
Power	1 x 4-pin power connector
Antennas	2 x SMA for LTE, 1 x RP-SMA for Wi-Fi
Reset	Reboot/User default reset/Factory reset button

Physical Specification

Feature	Description
Casing material	Aluminum housing, plastic panels
Dimensions (W x H x D)	83 x 25 x 74 mm
Weight	130 g
Mounting options	DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Feature	Description
Operating temperature	-40 C to 75 C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Regulatory & Type Approvals

Feature	Description
Regulatory	CE/RED, UKCA, UCRF, RCM, EAC, WEEE, RCM, R118
