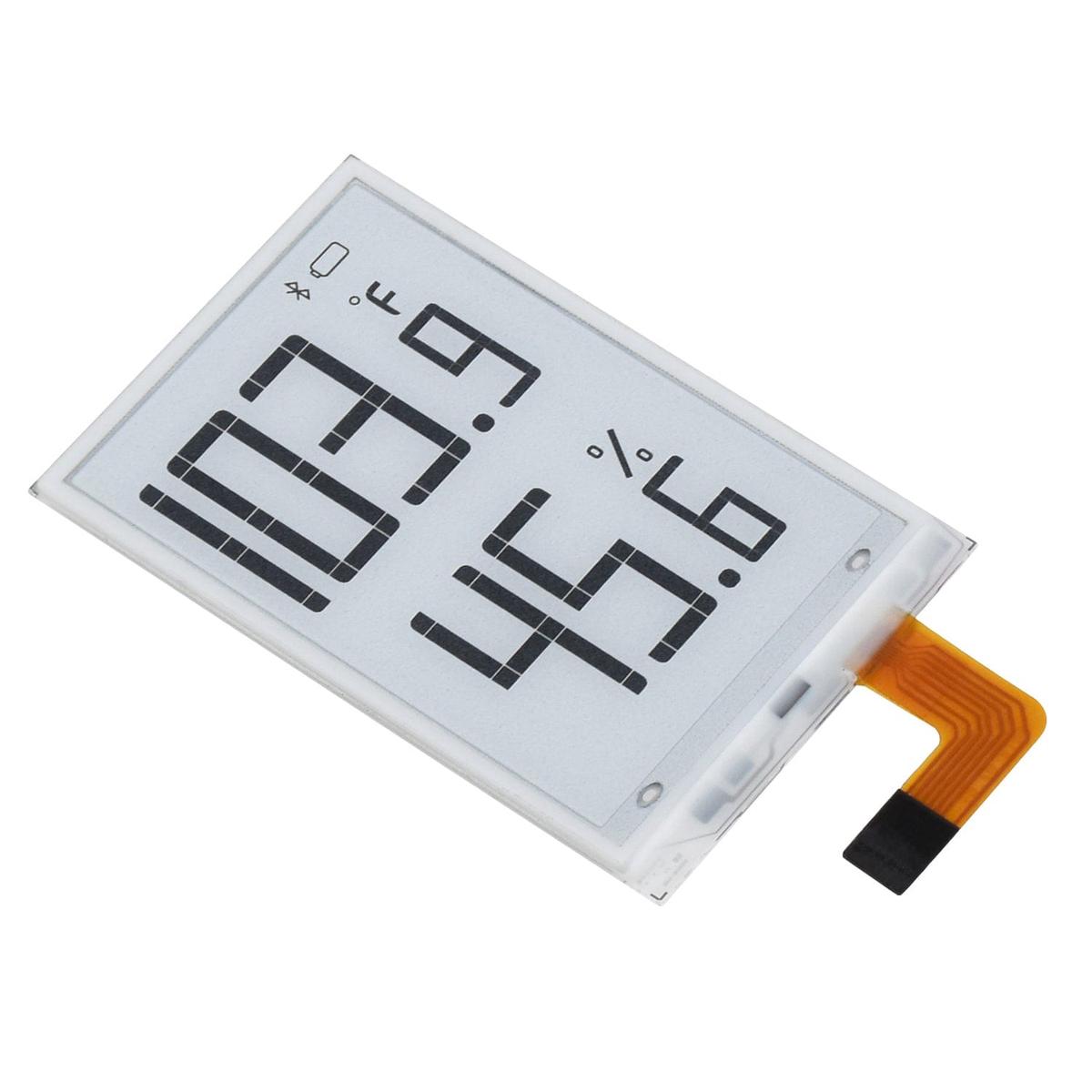

This is a spare/replacement raw display for the 1.9″ Segment E-Paper Display Module we stock in the store.

e-Paper displays are made of thin glass and can be easily broken if not carefully looked after, or simply in the event of an accident, so we’re stocking this drop-in replacement in case the worst happens. They’re also really handy if you want to mount the display inside a thin panel or enclosure, away from the module PCB.

The display is an exact match for the one found on the display module in the store – simply release the FPC clip and slot in the new version.

Driver board/module not included

Features

• Display size: 1.9″
• Working voltage: 3.3V/5V
• Communication interface: I2C
• Segments: 91 segments
• Display colour: Black, White
• Gray level: 2
• Partial refreshing time: 0.3 s
• Full refreshing time: 2s
• Refresh Power Consumption: <5mW (typ.)
• Standby current: <0.01uA (close to0)
• Outline dimension (raw panel): 49.35 32.11 1.13 mm

Resources

• Product Wiki – for overall display + driver board (not included)

Package Contents

• 1x 1.9″ Segment e-Paper

Driver board/module not included
