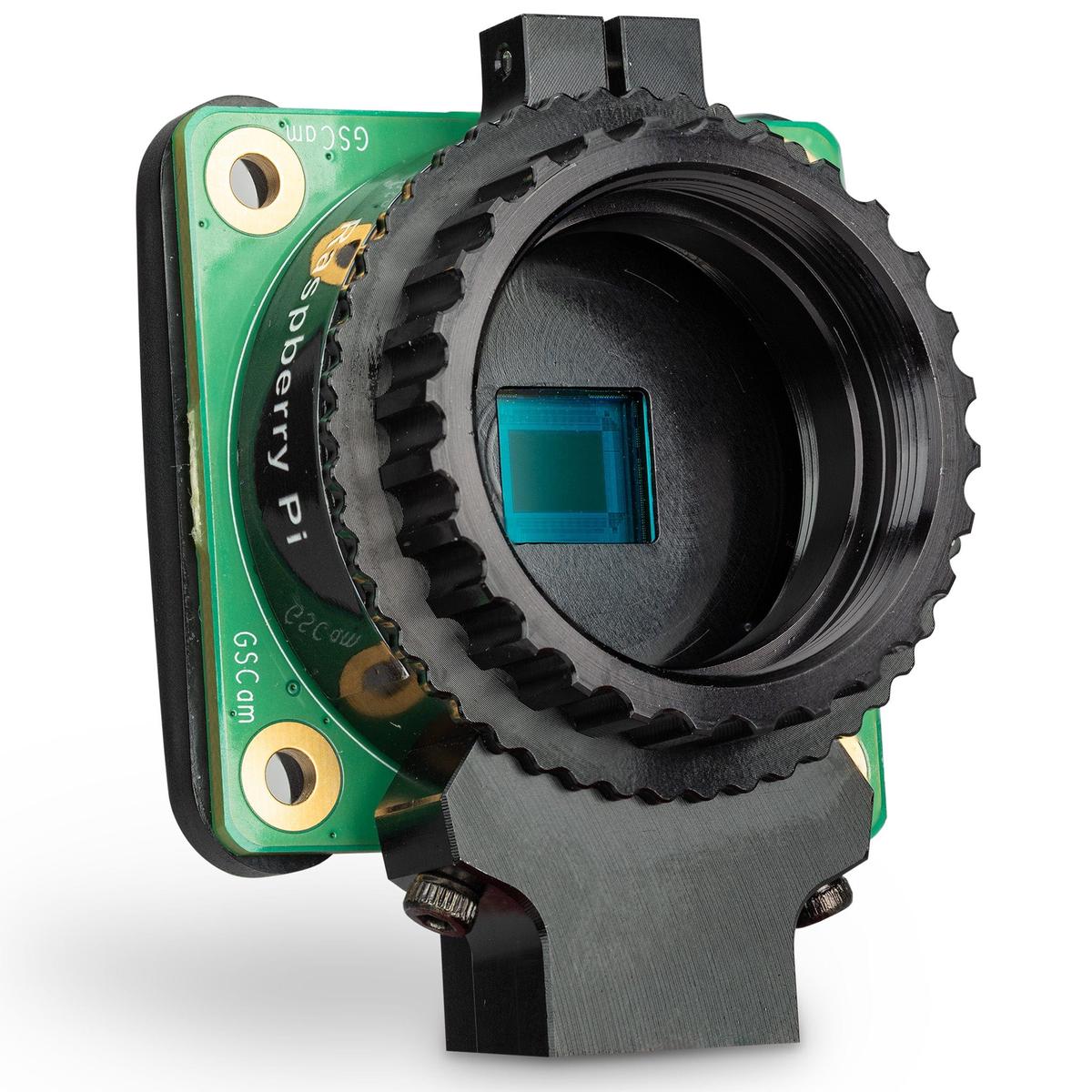

The Raspberry Pi Global Shutter Camera is a specialised 1.6-megapixel camera from Raspberry Pi that is able to capture rapid motion without introducing artefacts typical of rolling shutter cameras.

It is ideally suited to fast motion photography such as sports photographyand machine vision applications, where even small amounts of distortion can seriously degrade inference performance.

To use this camera with a Raspberry Pi 5, you will need to buy thisadapter cable!

To use this camera with a Raspberry Pi Zero, you will need to buy thisadapter cable!

With a large pixel size of 3.45m 3.45m providing high light sensitivity, the Global Shutter Camera can operate with short exposure times (as low as 30s with adequate lighting), an advantage for high-speed Raspberry Pi photography. It features a 1.6MP Sony IMX296 sensor, and it has the same C/CS-mount lens assembly and tripod mount as the Raspberry Pi High Quality Camera, for compatibility with the same broad variety of lenses and accessories.

In common with other global shutter sensors, the IMX296 has a lower resolution than similarly sized rolling shutter sensors; a low pixel count is appropriate for machine vision applications, where high-resolution images are challenging to process in real time. The Global Shutter Camera’s lower resolution means that with appropriate lens magnification, an image suitable for processing by a machine vision model can be captured natively.

The Raspberry Pi Global Shutter Camera includes a C- to CS-mount adapter, a screwdriver, and a 150mm ribbon cable, as well as a removable plastic back cover for protection. It is compatible with any Raspberry Pi computer that has a full-size CSI camera connector.

Don’t forget to grab a lens,tripod, mounting plate and any other accessories you might need!

Note:Youll need to update Raspberry Pi OS to use the new camera: run sudo apt update; sudo apt full-upgrade; sudo reboot and youre good to go.

Community Video

Jeff does a great job explaining the difference between Global Shutter and Rolling Shutter cameras here:

Compatibility

The GS Camerais compatible with all Raspberry Pi boards with afull-sizecamera connector (CSI connector).

• To use this camera with a Raspberry Pi 5(which has a smaller CSI connector), you will need to usea Raspberry Pi 5 camera adapter cable
• To use this camera with a Raspberry Pi Zero(which has a smaller CSI connector), you will need to usean adapter cable

Specifications

Package Contents

• 1x Raspberry Pi GS Camera
• 1x Removable plastic cover
• 1x150mm ribbon cable
• 1xC to CS-mount adapter
• 1x Screwdriver

Resources

• Launch news article
• Raspberry Pi Global Shutter Camera Product Brief
• Raspberry Pi Global Shutter Camera mechanical drawing
• Raspberry Pi Global Shutter Camera documentation

Physical Specification
