The RAK7248 WisGate Developer D4H is a LoRaWAN Gateway composed of Raspberry Pi 4, RAK2287 Concentrator, and RAK2287 Pi HAT.

Core Components:

• RAK2287 Concentrator:

  • Integrated GPS module

  • Heat sink for improved performance and thermal dissipation

  • Aluminum casing for durability

• RAK2013 Cellular Pi HAT:

  • Based on Quectel EG95 LTE CAT4 module

  • Optimized for M2M and IoT applications

• RAK2287 Chipset:

  • Uses Semtech SX1302 with built-in LoRa concentrator IP core

  • Digital signal processing engine capable of receiving up to 8 LoRa packets with different spreading factors on different channels

  • Available in multiple variants for international standard bands

• RAK2287 Pi HAT Board:

  • Raspberry Pi form factor converter board

  • One (1) 40-pin female Pi HAT connector

  • One mPCIe connector for integration with Raspberry Pi 4

Software & Usability:

• Includes ready-to-use LoRaWAN Gateway OS

• Connects directly to a LoRaWAN server

• Developer-friendly and simple setup, even for non-technical users

Applications:

• Prototyping

• Proof-of-concept demonstrations

• Evaluation projects

• Smart Grid, Intelligent Farm, and other IoT enterprise applications

Cellular Module Variants (EG95-E vs EG95-NA):

Please Read:Helium is not accepting these gateways into the blockchain for now as the AlphaHotspotprogram has ceased, consult using thisDiscord channelfor details.If you want to actively participate in the Helium network and earn HNT please order ourRAK Hotspot V2instead.

Available Models

• WisGate Developer D4H (RAK7248)– this is the base model with the Raspberry Pi 4 (RPi 4) and theRAK2287withPiHAT
• WisGate Developer D4H+ (RAK7248C)– this is the Cellular version that includes the RPi 4,RAK2287withPiHAT, and theRAK2013 Cellular Pi HAT

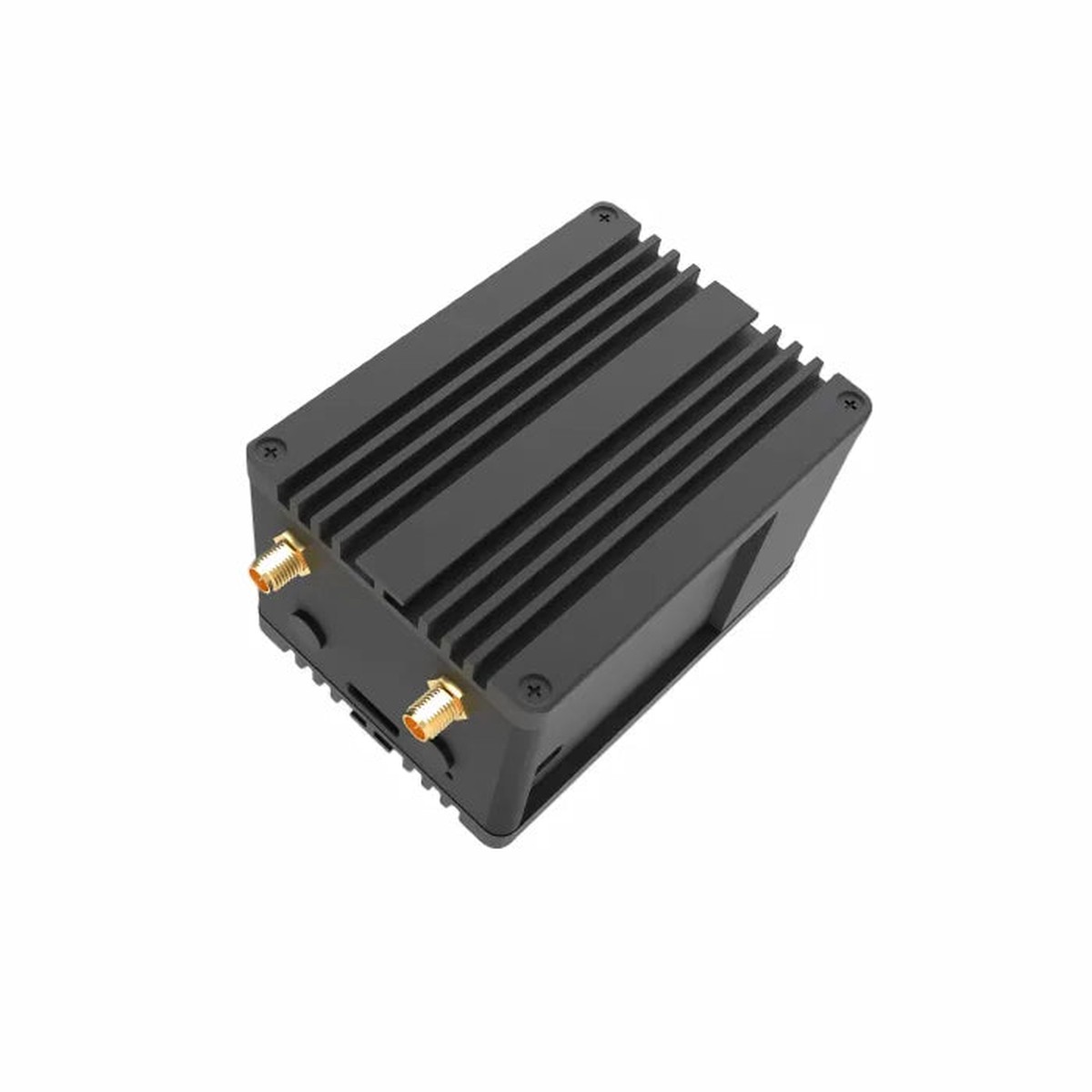

• WisGate Developer D4HP (RAK7248P)this version allows for powering the gateway via PoE by adding theRAK9003 Pi HATto the base configuration (RPi 4 +RAK2287withPiHAT+RAK9003)

Key Features

• Refreshed Case design with a new MCU(Raspberry Pi4)
• Preassembled, fully functioning LPWANdevelopergateway
• Full LoRaWAN Stack support
• Supports for8 channels
• Band support: 865MHz, 868MHz, 915MHz, 920MHz, 923MHz
• TX power up to27dBm
• RX Sensitivity:-139dBm
• IntegratesZOE-M8Q GPSmodule
• Quectel EG95LTE module
• PoE for the WisGate Developer D4HP(RAK7248P)

Certification

• Ukraine Certification
• IMDA Certification

Packaging

• Product Dimensions:90mm x 90mm x 195mm (LxWxH)
• Product Weight:630g

Package Inclusion

RAK7248 (Base model)

• 1unit RAK7248 LPWAN Developer Gateway
• 1pc LPWAN Antenna
• 1pc GPS Antenna
• 1pc Power Adaptor
• 1pc SD Card

RAK7248P (variant with PoE module)

• 1unit RAK7248P LPWAN Developer Gateway
• 1pc LPWAN Antenna
• 1pc GPS Antenna
• 1pc Power Adaptor
• 1pc SD Card

RAK7248C (LTE variant)

• 1unit RAK7248C LPWAN Developer Gateway
• 2x LTE Antenna
• 1pc LoRa Antenna
• 1pc GPS Antenna
• 1pc Power Adaptor
• 1pc SD Card

Documentation

• Quick Start Guide
• RAK7249 LoRaWAN Network Server Guide
• AWS Greengrass V2
• Datasheet
• WisGate Developer Gateway Firmware Setup
• RAK7248 Latest Firmware
