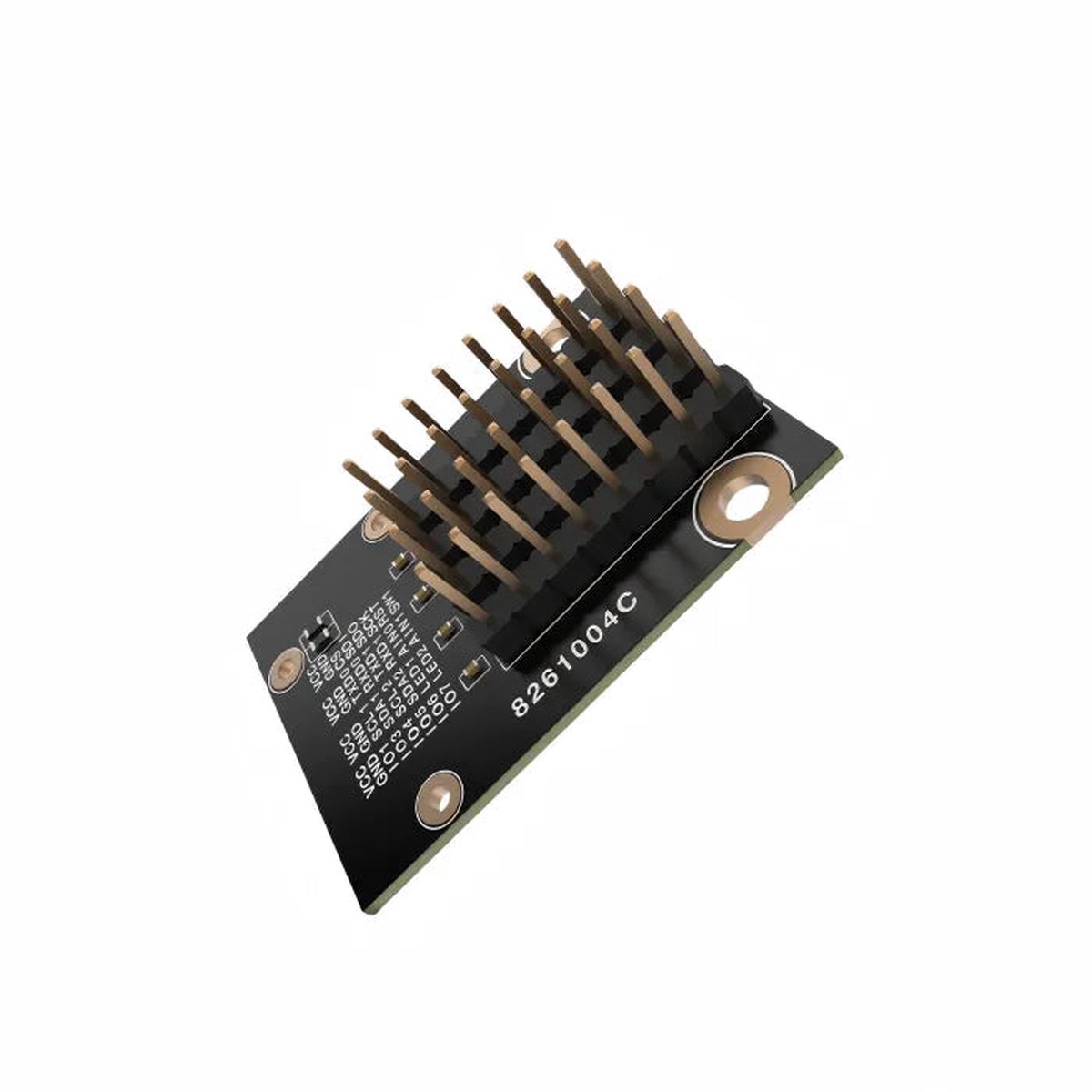

The RAK13002 is a dedicated WisBlock IO adapter module engineered to expand the connectivity of your IoT projects. It provides direct and complete access to all WisBlock Core IO pins, making it an essential component for integrating a wider range of external peripherals.

Hardware Specifications & Features

• Module Type: WisBlock IO Adapter Module

• Pin Access: Full access to all WisBlock Core IO pins

• Header Configuration: Four 8-pin headers

• Pitch Standard: Standard 2.54mm pitch

• Primary Application: Seamless connection of additional external peripherals for advanced IoT project development

Product Features

• Supports two I2C interfaces
• Supports two UART interfaces
• Supports one SPI interface
• Supports up to 6 GPIOs
• Supports 2 ADC interfaces
• 3.3V power supply interfaces
• Module size: 25X35mm
