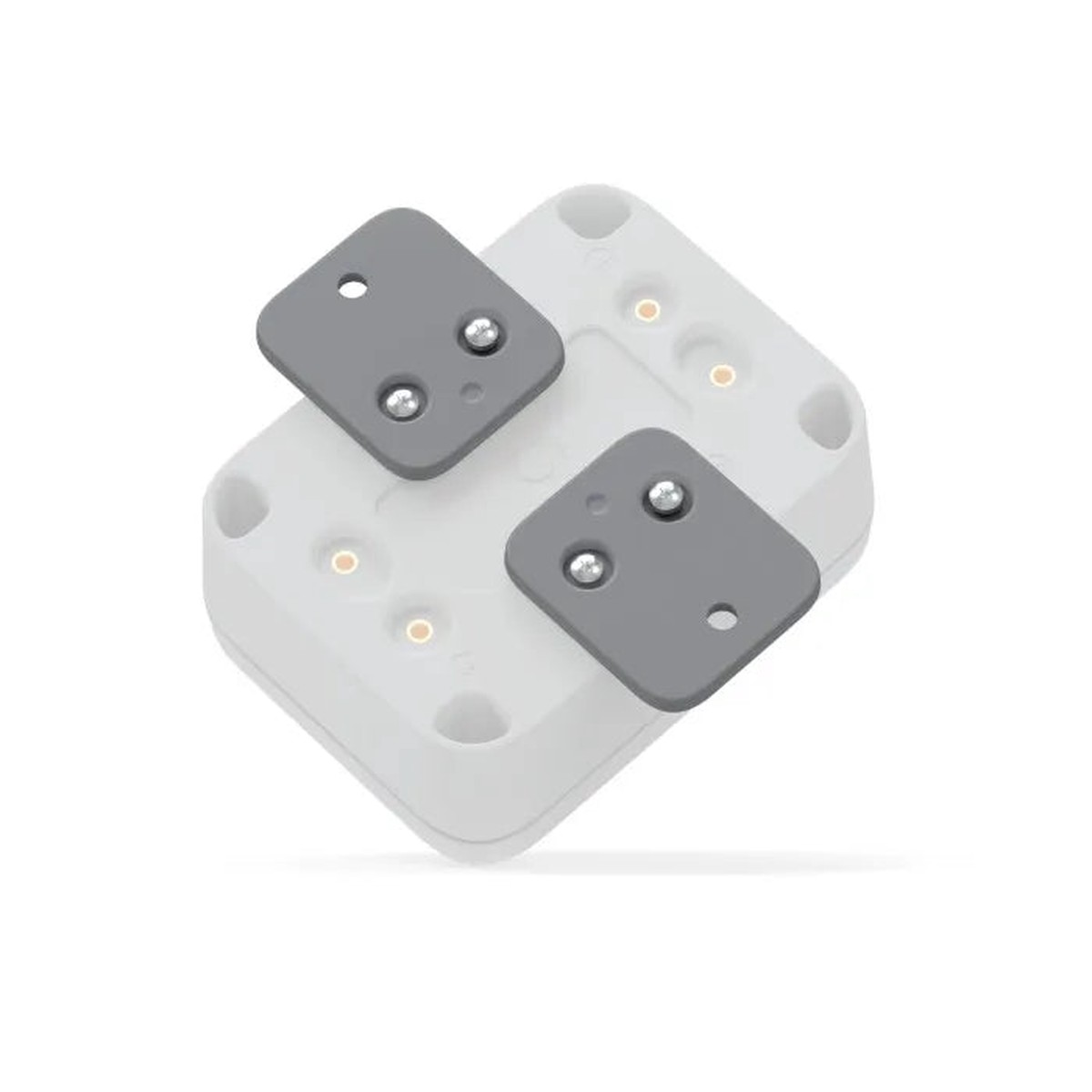

The Unify Wall Mounting (Type D) Kit provides the essential accessories required to securely mount a Unify Enclosure onto a flat, rigid, and stable surface such as a wall. This accessory allows the use of standard fixing screws to fasten the enclosure firmly in place.

On the rear surface of the enclosure, the Unify accessories are installed using integrated mounting locations. They are secured with M3 fasteners into durable brass threaded inserts, ensuring robust and reusable attachment.

Compatibility:

The Unify Wall Mount (Type D) accessory is fully compatible with all Unify Enclosures.

Unify Wall Mount (Type D) Specifications:

• Material: ABS UL94V-0
• General Wall Thickness: 4.0mm
• Compatible with Unify Enclosure 100x75x38mm
• Compatible with Unify Enclosure 150x100x45mm
• Compatible with Unify Enclosure 180x130x60mm
• Compatible with fixing screw of maximum diameter 5mm

Included in the Kit:

• 2pc Unify Wall Mount (Type D) accessories
• 4pc M3x8mm Stainless Steel Screw (to mount Accessory to the enclosure)
• 2pc 3.5x25mm Self-Tapping Screw (for wall fixing)
• 2pc Wall plug for Self-tapping screw (requires 5mm drill hole in typical wall materials).

Documentation

• Unify Wall Mounting Kit (Type D) Datasheet
