Electronic Components

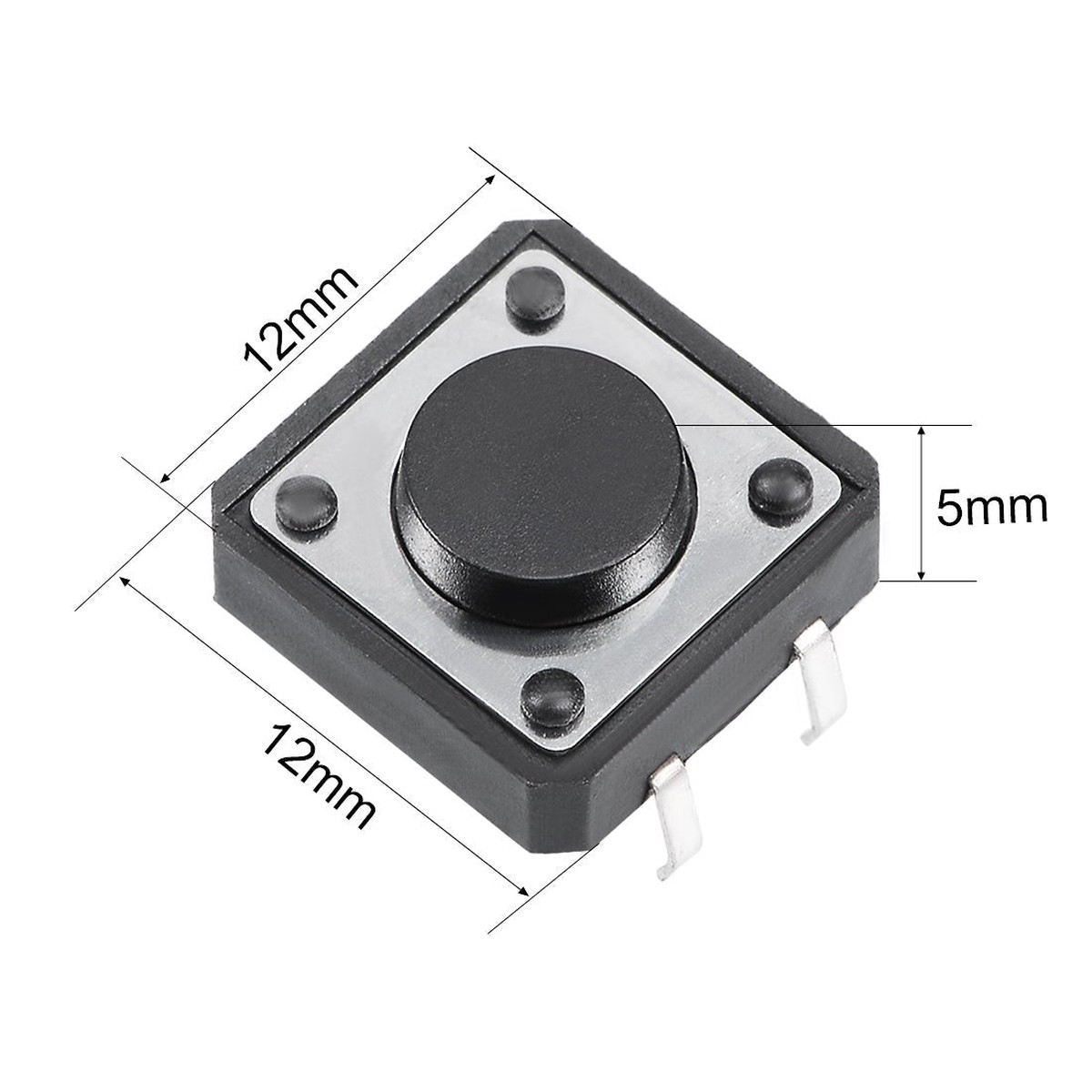

Push Button Switch 12mm 4 Pin Tactile / Micro Switch
Price
Original price was: $12.00.$5.00Current price is: $5.00.
Shopping information
Key Features
- Compact 12mm x 12mm x 5mm design
- 4-pin through-hole configuration for secure PCB mounting
- Momentary action: normally open (NO), closes when pressed
- High durability with up to 300,000 operating cycles
- Strong tactile response with operating force of 35N
- Suitable for automotive-grade and industrial applications
Specifications
- Body Material: Plastic
- Operating Voltage: 12V
- Operating Current: 50mA
- Pin Count: 4-pin
- Switch Type: Push Button / Tactile Micro Switch
- Contact Material: Brass
- Contact Resistance: 50m
- Insulation Resistance: 100M
- Operating Temperature: -20C to +70C
- Operation Force: 3.0N 3.6N (up to 5N range)
- Dimensions: 12mm (L) 12mm (W) 5mm (H)
- Weight: 1g
Only logged in customers who have purchased this product may leave a review.
