Pixhawk 2.4.8 flight controller with 4GB SD card Led switch & buzzer is best Flight Control with amazing features

Specification Pixhawk 2.4.8 Flight Controller with 4GB GB:

• Provide redundant power input and fault transfer function
• 14 PWM/ actuator output
• Bus interface (UART, I2C, SPI, CAN)
• Automatic and manual mode
• Color LED lamp
• Multi tone buzzer interface
• Micro SD to record flight data
• Board integrates with PX4FMU+PX4IO Pixhawk is with new 32 bit chip and sensor technology Processor
• 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit Main frequency
• 256K, 168MHZ RAM 32 bit STM32 F103 backup co processor
• Sensor:L3GD20 3 axis digital 16 bit gyroscope LSM303D
• 3 axis 14 bit accelerometer /magnetometerMPU6000 6 axis accelerometer / magnetometer
• MS5611 high precision barometer
• Interface: 5 UART, 1 compatible high voltage, 2 hardware flow control 2 CAN Spectrum DSM/DSM2/DSM-X satellite receiver compatible
• input Futaba flysky Tranis Frsky etc SBUS compatible input and output PPM signal input RSSI (PWM or voltage)
• inputI2CSPI3.3 and 6.6VADC
• input External USB MICRO
• interface Color:
• Black Size: 5081 x 16mm / 2.03.2 x 0.6
• Weight: 48g

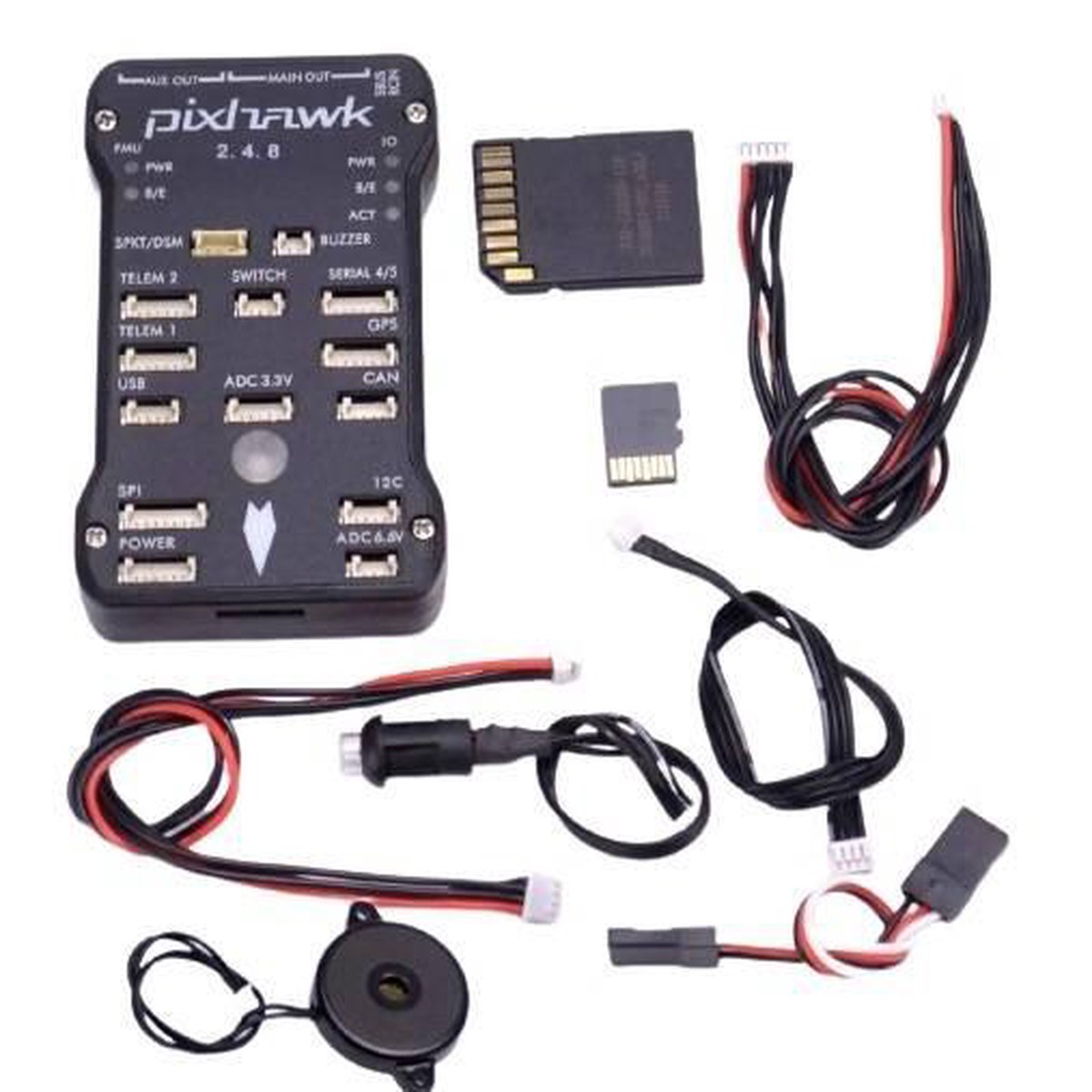

Package included:

• 1 x 2.4.8 Pixhawk Main Controller,
• 1 x Safety Switch
• 1 x 4 GB Memory Card
• 1 x Flight Control
• 1 x Shell Buzzer

Caution:

• Storage Area temperature: Dont put it beside the high temperature condition or the temperature is over 70 C.
• Charging Caution: Dont over-charge, or over-discharge batteries
• Keep away from kids that they can not get it.
• Flammable: Dont throw it into fire.
• Dont throw it into water.
• For safety, we recommend that you use the official material and accessories.

FAQ

How to use Pixhawk 2.4.8 Flight Controller?

Answer: Read manual carefully or consult on internet.
