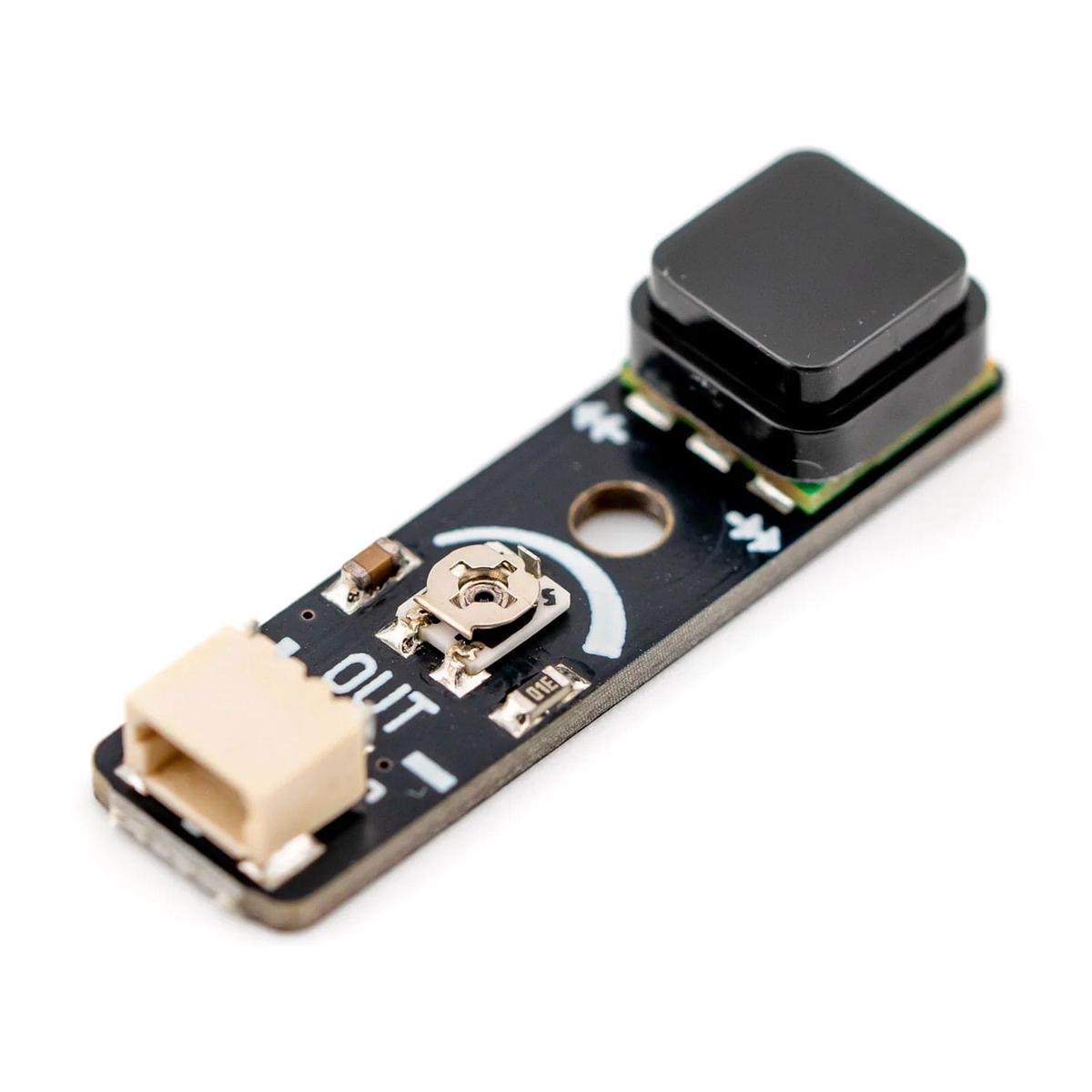

A passive infrared (PIR) sensor stick that gives your Tiny FX projects the ability to trigger effects when motion is detected.

Humans and other warm objects emit heat in the form of IR radiation. This sensor uses changes in IR radiation to detect motion in front of it and sends out a simple digital signal that can be read by any microcontroller.

We designed PIR Stick to handle the very important business of triggering motion effects on ourTiny FXmodels so it comes with a cable that will let you plug it straight into the three-pin connector on Tiny FX. If you’re planning on using it with another microcontroller, you’ll probably want to pick up a JST-SH to DuPont cableto connect it up*. We also have loooooongJST-SH to JST-SH cablesavailable if you want to position your PIR Stick further away from your model.

Click here to view everything Tiny FX!

Notes

• Tiny FX Board is NOT included
• PIR Stick has no reverse polarity protection, so if you’ve wired it up yourself double check your wiring to make sure power is connected to + and ground is connected to -. It will get quite hot very quickly if you get the polarity wrong!
• The sensor has a preferred detection direction. For best results in a typical room, orient the stick vertically so that it can detect motion passing it horizontally.

Features

• Senba S18-L262B-2 Digital Pyroelectric Infrared Sensor (Datasheet)
• Onboard potentiometer for sensitivity adjustment (clockwise to increase, anti-clockwise to decrease)
• Includes 3-pin JST-SH cable (150mm long, approx)

Specifications

Resources

• Schematic

Pinout

• ‘+‘: Power In (3.7 V max)
• ‘OUT‘: Data
• ‘–‘: Ground

Package Contents

• 1x PIR Stick for Tiny FX
• 3-pin JST-SH Cable
