This is a GSM & GPS Modem based on Simcom’s SIM808 Module, perfect for projects requiring both GSM and GPS functionalities. It supports GSM/GPRS Quad-Band network and combines GPS technology for satellite navigation.

Technical Specifications

Applications

Ideal for vehicle tracking, asset monitoring, and IoT projects requiring reliable GSM and GPS functionalities.

Related Products

• SIM800L GSM Module Micro SIM Card Board
• SIM800L GSM Module Micro SIM Card Board Registered with PTA
• Arduino Uno R3
• HC-SR04 Ultrasonic Sensor

Features :

• Quad-Band GSM/GPRS Support: Operates on frequencies 850/900/1800/1900MHz, ensuring global compatibility. [Source]
• GPRS Connectivity: Supports multi-slot class 12 with data rates up to 85.6 kbps for both downlink and uplink. [Source]
• Integrated GPS: Features high-sensitivity GPS with 22 tracking and 66 acquisition channels, supporting A-GPS for improved indoor localization. [Source]
• Low Power Consumption: Designed for ultra-low power usage, consuming as low as 1mA in sleep mode, ideal for battery-powered applications. [Source]
• Li-Ion Battery Support: Includes a charging circuit compatible with Li-Ion batteries, facilitating extended standby times and rechargeable power options. [Source]
• AT Command Control: Managed via AT commands over UART, compliant with 3GPP TS 27.007, 27.005, and SIMCOM enhanced AT commands. [Source]
• Real-Time Clock: Incorporates a real-time clock, beneficial for time-dependent applications. [Source]
• Wide Voltage Range: Operates within a supply voltage range of 3.4V to 4.4V. [Source]
• Compact Design: The module measures 24mm x 24mm x 2.6mm, making it suitable for space-constrained projects. [Source]
• Standard SIM Card Compatibility: Supports standard SIM cards for GSM connectivity. [Source]

Applications :

• GPRS network nodes
• Remote communications
• Satellite positioning
• Real-time car tracking systems
• Security
• Internet of things (IoT)

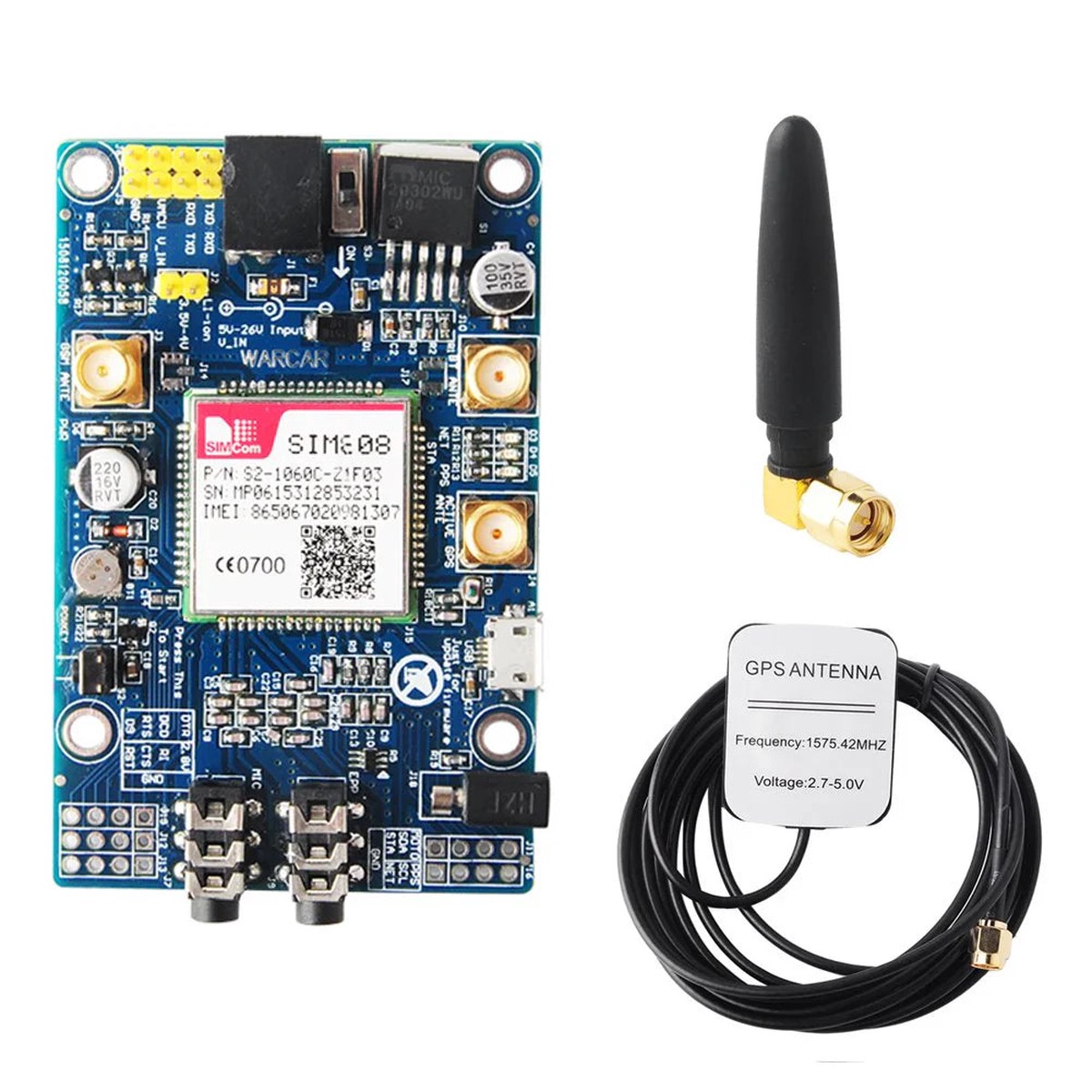

Package :

• SIM808 Module.
• GSM Antenna.
• GPS Antenna.

Document:

Detailed user manual for SIM 808 GPS, GSM, GPRS module.

SIM 808 Arduino codes (GPS-SMS, GPS, SMS)

SIM 808 GPS application notes
