User customizable distortion module for Eurorack

Nijel is a distortion module that lets you change its sonic character by plugging in components like diodes, capacitors or resistors directly to the front panel. You can also use separately available preset cardsthat are compatible with other Neutral Labs products.

Nijel is a diode distortion module that has drive control via a knob and/or incoming control voltage (CV).

The user can optionally modify the distortion character by plugging passive electronic components like diodes, capacitors or resistors into either or both of two rows of ports on the front panel, or special pre-made cards that contain small circuits made up of such components.

Nijel comes with a small set of suitable passive components for experimentation: a photoresistor, diode, LED and capacitor.

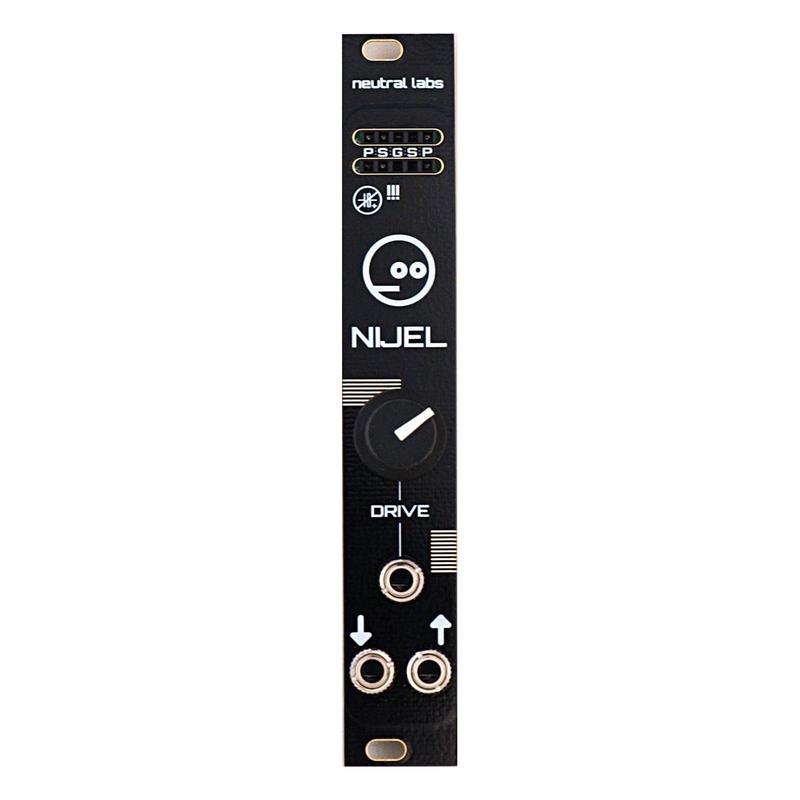

The ports at the top of the module labeled P|S|G|S|P support the plugging in of pre-assembled cards available from Neutral Labs, as well as individual passive components like resistors, capacitors or diodes. LEDs and LDRs (light-dependent resistors) can be used as well, even in combination. Any combination of components and/or cartridges will change the distortion behavior in its own unique way.

There are 2 rows of ports which work exactly the same, and they can be used at the same time. E.g. it is possible to connect two cartridges to both rows of ports simultaneously, or one cartridge and a number of components on the other row of ports. When using cartridges, their orientation doesnt matter, they will work the same way facing either up or down.

Neutral Labs Nuts – Preset Catridges
