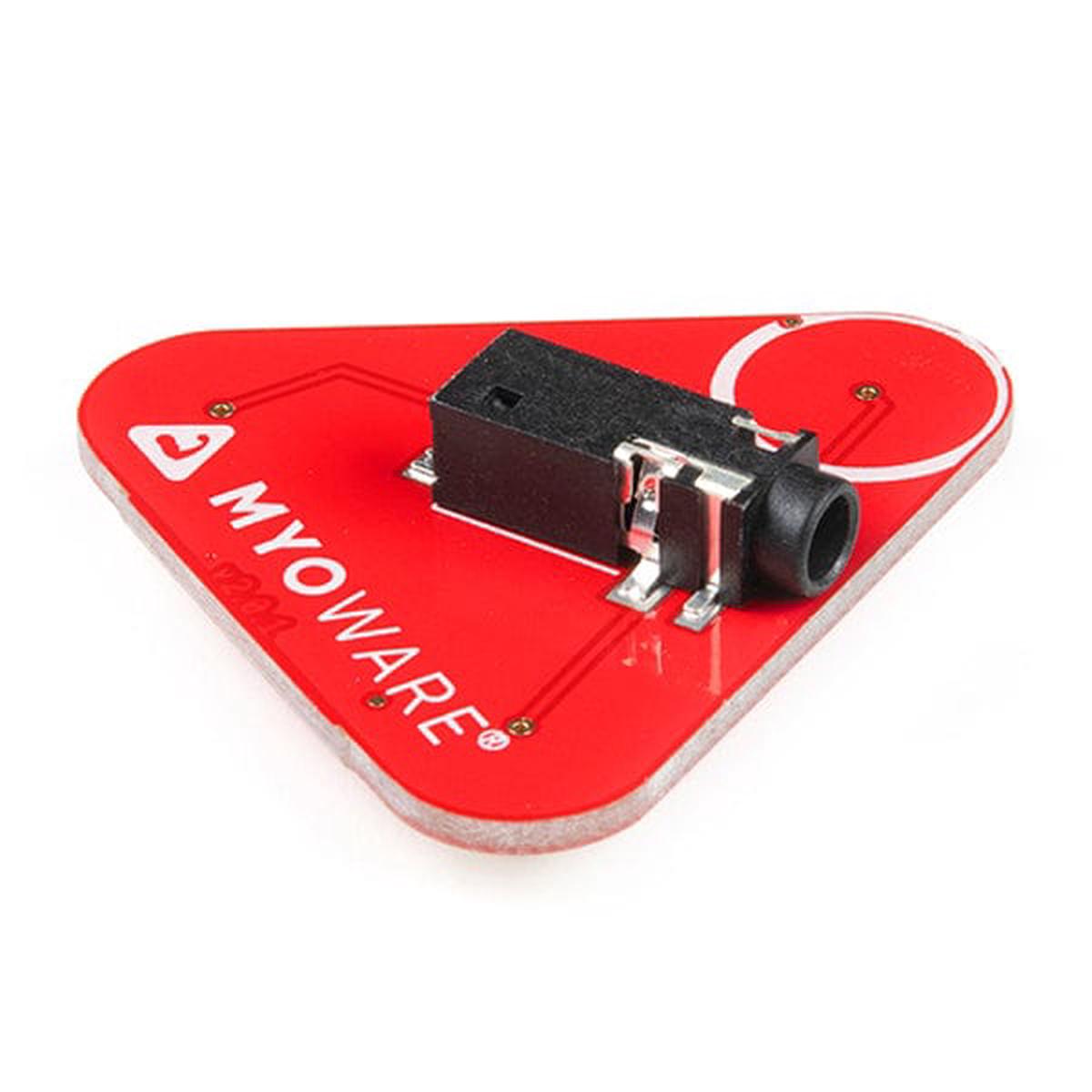

The MyoWare 2.0 Muscle Sensor is designed to be wearable, allowing you to attach biomedical sensor pads directly to the board itself. However, there still may be cases where you want to mount the sensor pads away from the board; this is where the MyoWare 2.0 Cable Shield comes in. The shield includes a 3.5mm TRS jack where you can attach a traditional three electrode sensor cable, allowing you to test and use the muscle sensor without actually attaching the board to your person.

The MyoWare 2.0 Cable Shield is also equipped with snap connectors on the board so you can easily stack it. Unlike the other shields in the MyoWare 2.0 ecosystem, this board snaps to the bottom side of the MyoWare 2.0 Muscle Sensor. Use this shield for non-wearable projects that are housed in an enclosure or that target muscles that are too small or situated such that the onboard electrode sockets would not be suitable.

Note: MyoWare and the Cable Shield are not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation treatment, or prevention of disease, in a man or other animals.

Get started with the MyoWare 2.0 Cable Shield guide

Features

• MyoWare 2.0 Muscle Sensor Form Factor
  • 3x Male Snap Pins (Input Electrodes)
• 1x 3.5mm TRS Connector
• Board Dimensions
  • 37.57mm x 35.90mm

Resources

• Board Dimensions
• Hookup Guide
• Advancer Technologies: MyoWare 2.0
  • Quickstart Guide
  • Advanced Guide
  • Patents
• Arduino Reference Language: ArduinoBLE Library
• GitHub Example Repo
• MyoWare 2.0 Ecosystem Page

Note: This product is patent protected. To prevent counterfeit boards, the Eagle design files and GitHub hardware repository are not shared for boards in the MyoWare 2.0 ecosystem.
