Since way back in 2012 with the very first Raspberry Pi, users have complained about cables coming out ofevery direction of the board – making it messy when trying to create a tidy desk or media setup.

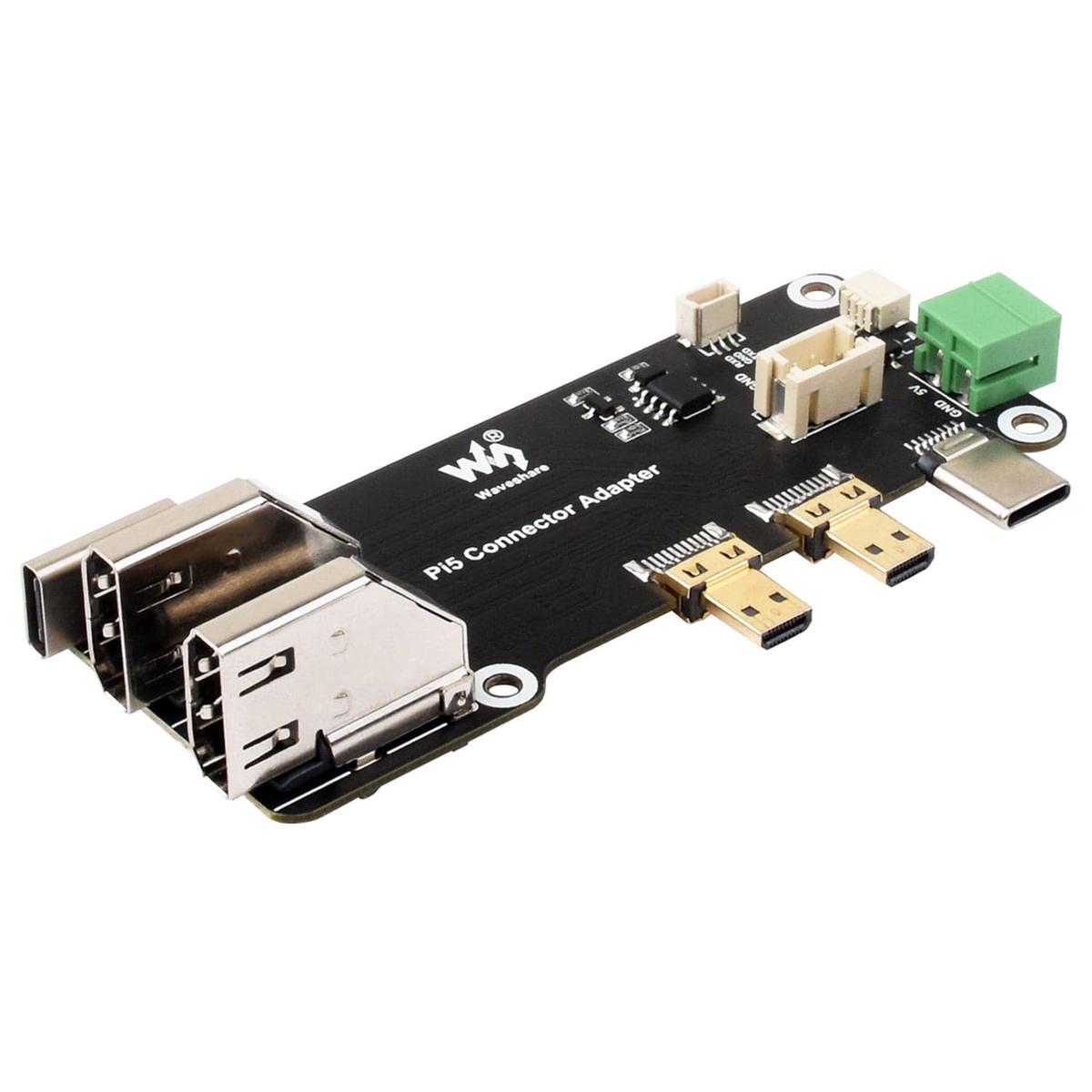

This multifunctional IO adapter for Raspberry Pi 5 (and Raspberry Pi 4) aims to solve those problems, redirecting your micro-HDMI and power ports to the same edge as the USB ports. It also upsizes your micro-HDMI ports to the full-size variety, which many users prefer for robustness, and includes mounting holes fixing to your own enclosure design (get those 3D printers out!).

The adapter also provides a pluggable screw terminal power supply input option, allowing you to use your own regulated 5V power source, along with a 5V/GND breakout and two UART ports with cables.

Note:

• Raspberry Pi not included
• No audio jack connection when using with Raspberry Pi 4

As seen on Explaining Computers!

Christopher Barnatt uses this adapter in a mini-ITX project video:

Features

• Multifunctional IO adapter for Raspberry Pi 5 and Pi 4
• Moves the Raspberry Pi HDMI and power port to the side of the board – all ports along a single edge
• Reduce cable clutter with your own enclosure designs
• 5V input power pluggable terminal connector
• 1x 5V/GND breakout
• 2x UART breakout

Package Contents

• 1x Multifunctional Adapter board
• 1x 3-pin cable 100mm
• 1x 3-pin squid (jumper) cable 100mm

Raspberry Pi not included
