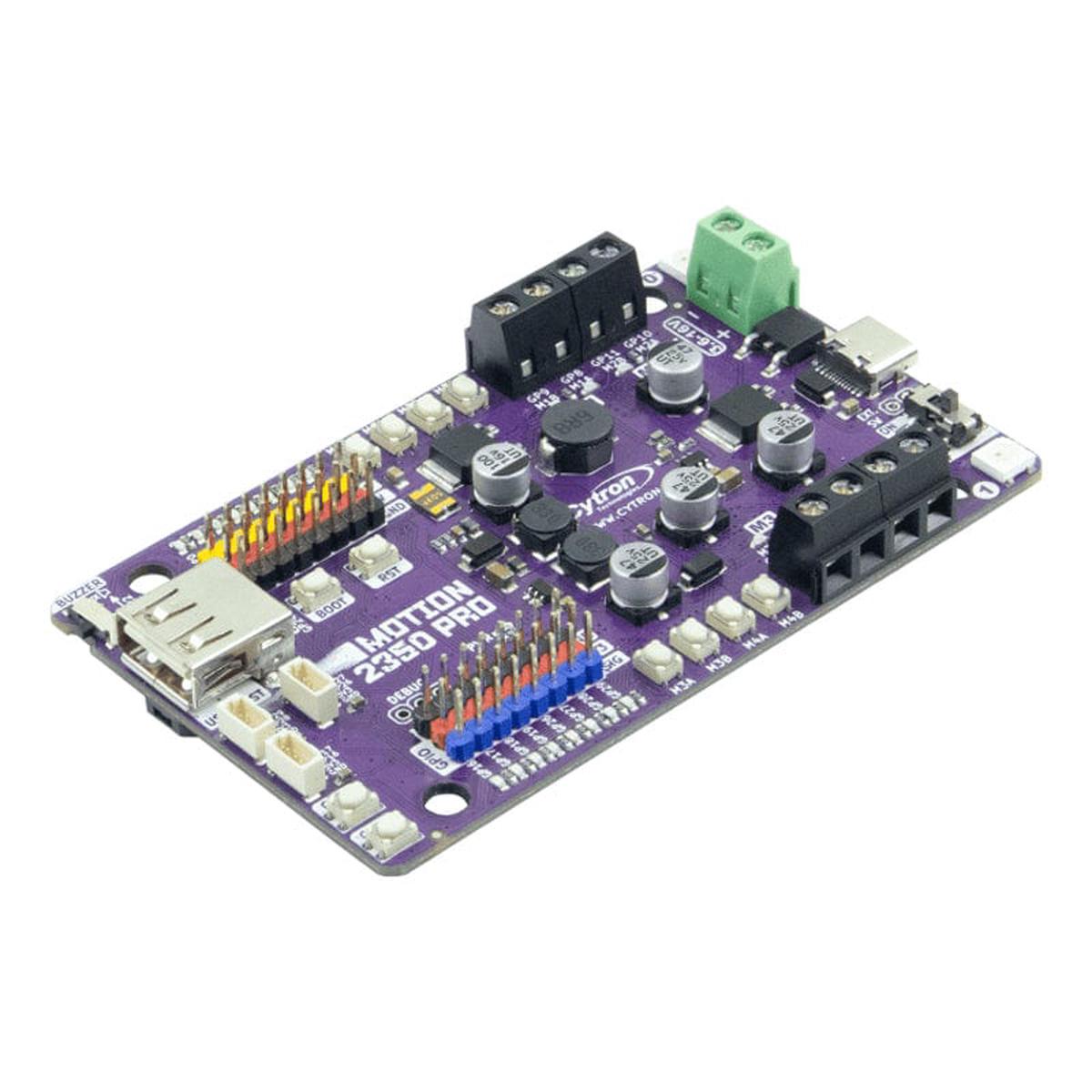

The Motion 2350 Pro is an advanced robotics controller designed for beginners and intermediate users, packed with features and built around the Raspberry Pi RP2350 processor.

It has a strong DC motor driver capable of controlling up to four brushed DC motors, multiple servo and GPIO ports, and a USB host for plug-and-play with joysticks.

The board is preloaded with CircuitPython, offering a ready-to-use experience, and supports programming in Python, C/C++, and Arduino (soon). It’s great for building complex robots with minimal electronic setup.

Features

• Supports a wide range of DC motors
• USB Type-C Connector (5V)
• On/Off Switch
• 8x Servo Motor
• Colour-coded servo ports
• 4-channel DC motor driver
• Status LEDs
• USB Host
• Control robot with wireless joystick
• 3x Maker Ports (compatible with Qwiic and Stemma QT)

What’s on Board

Specifications

• Powered by Raspberry Pi RP2350
  • Dual-core Arm Cortex-M33 processor
  • 520KB internal RAM
  • 150MHz Frequency Clock
  • 2MByte Flash
• Robot Controller Board
  • 4 x DC Motor Driver (with quick test buttons)
  • 8 x Servo Motor
  • 8 x 3V GPIO Breakout
• Input Power
  • VIN Terminal: 3.6V – 16V
  • USB Type-C: 5V
• Maximum DC Motor Current, each channel
  • Continuous: 3A
  • Peak: 5A
• 24 x Status indicator LEDs
  • 8 x for Servo Port
  • 8 x for 3V GPIO Breakout
  • 8 x for DC Motor Driver
• 12 x Push Button
  • 8 x Quick Test Button for DC Motor
  • 2 x User Button
  • 1 x BOOT Button
  • 1 x RST Button, for reset
• 3 x Maker Port
• 2 x RGB LED (Neopixel Compatible)
• 1 x USB Host
• 1 x Piezo Buzzer (with mute switch)
• 1 x On/Off Switch (with MOSFET Shock-Proof Circuit)
• Preloaded with CircuitPython by default
• Programming Language
  • CircuitPython
  • MicroPython
  • C/C++
  • Arduino(coming soon)
• Board Dimension: 95.2 x 57.2 x 8 (height) mm

Raspberry Pi Chip Comparison (Old vs New)

Resources

• MOTION 2350 Pro Datasheet
• MOTION 2350 Pro 3D CAD
• RP2350 Datasheet(pdf), by Raspberry Pi
• Getting Started with MOTION 2350 Pro, tutorial by Cytron Technologies
• CircuitPython mainpage
• MicroPython main page
• SDK C/C++, from Raspberry Pi

Pinout

Package Contents

• 1 x MOTION 2350 Pro
• 1 x STEMMA QT / Qwiic JST SH 4-pin Cable with Female Sockets (150mm)
• 2 x Grove to JST-SH Cable (200mm)
• 1 x Set of Silicone Bumper
• 4 x Building Block Friction Pin
• 1 x Mini Screwdriver
