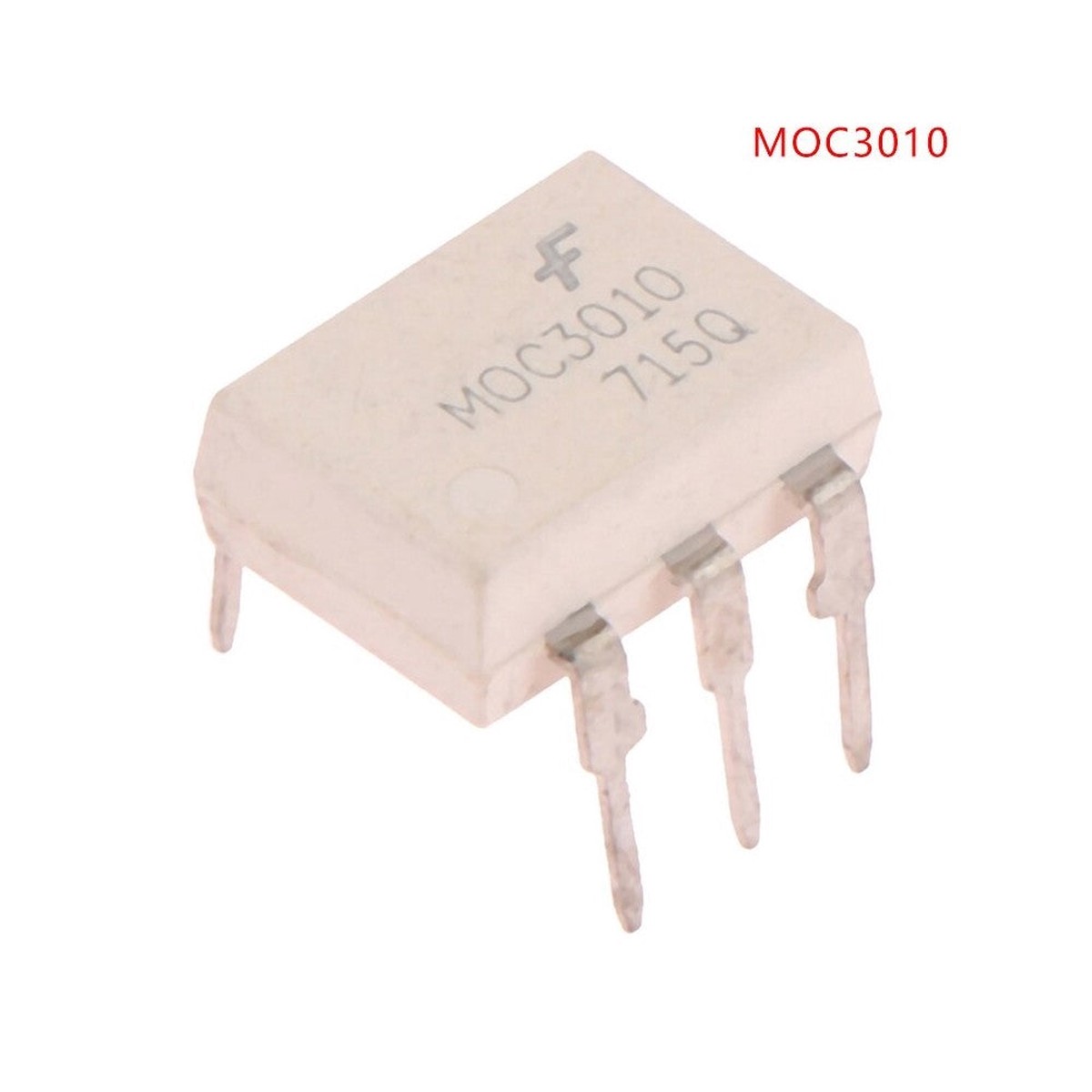

The MOC 3010 ON is an optoisolated triac driver IC designed for triggering high-power triacs in AC switching applications. It provides electrical isolation between low-voltage control circuits and high-voltage AC loads, making it ideal for industrial automation, home appliances, and motor control applications.

Key Features:

• Optoisolated Triac Driver: Ensures safe and reliable control of AC loads.
• Non-Zero-Crossing Design: Suitable for phase control applications.
• High Isolation Voltage: Provides up to 7500V peak isolation for enhanced safety.
• Low LED Trigger Current: Operates with as little as 5mA input current.
• Compact Package: Available in DIP-6 and SMD-6 for flexible PCB integration.

Package Includes:

• 1 x MOC 3010 ON Optoisolated Triac Driver IC

Specifications:

• Isolation Voltage: 7500V peak
• LED Trigger Current: 5mA
• Output Voltage: 400V (max)
• Operating Temperature Range: -40C to +100C
• Package Type: DIP-6 / SMD-6

Applications:

• Solid-State Relays
• Industrial Motor Control
• Home Automation Systems
• Lighting and Dimmer Circuits
• AC Power Switching

Datasheet:

Click here to view the datasheet
