sku: PRT-09545

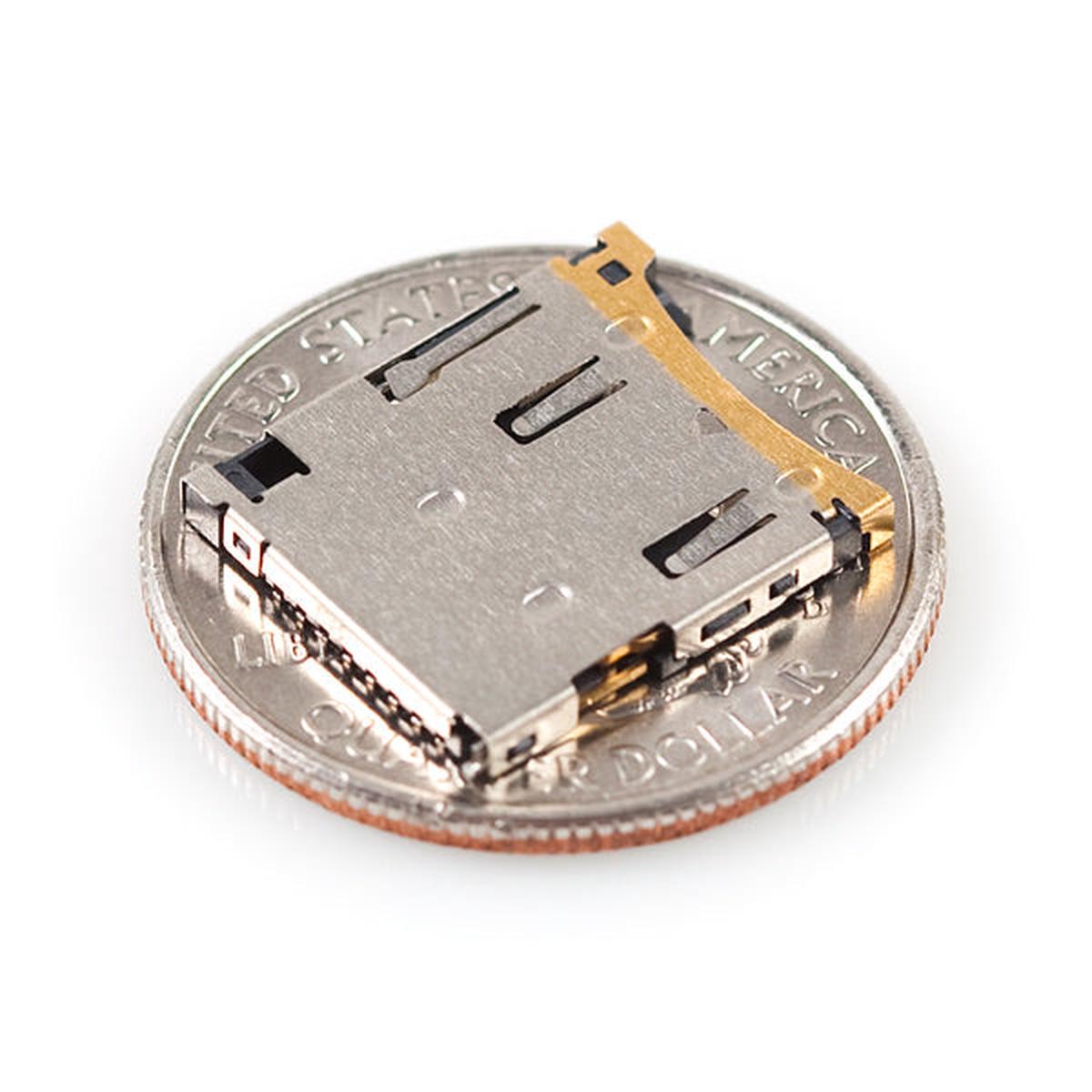

Description: Do you need a lot of space? But you need it in the size of your pinky nail? microSD (uSD) is here to save the day. TransFlash has now completed standards certification and is now known as microSD. Compatible with the SPI interface found on any SD card, this tiny form factor was created for cell phone storage and is perfect for your next MP3 project! This is a high quality push-push type SMD socket.
Note : this socket has the pads on the end which makes it ideal for hand soldering unlike other microSD sockets.
Resources

• microSD Specification
• Adding SD to a Router – Thanks Jake!
• MMC to Serial Adapter
• PIC MMC Interface Project
• Example MMC Interface Code
• Another nice breakdown of the SD SPI protocol

Datasheets

• Dimensional Drawing
• Eagle footprint library
