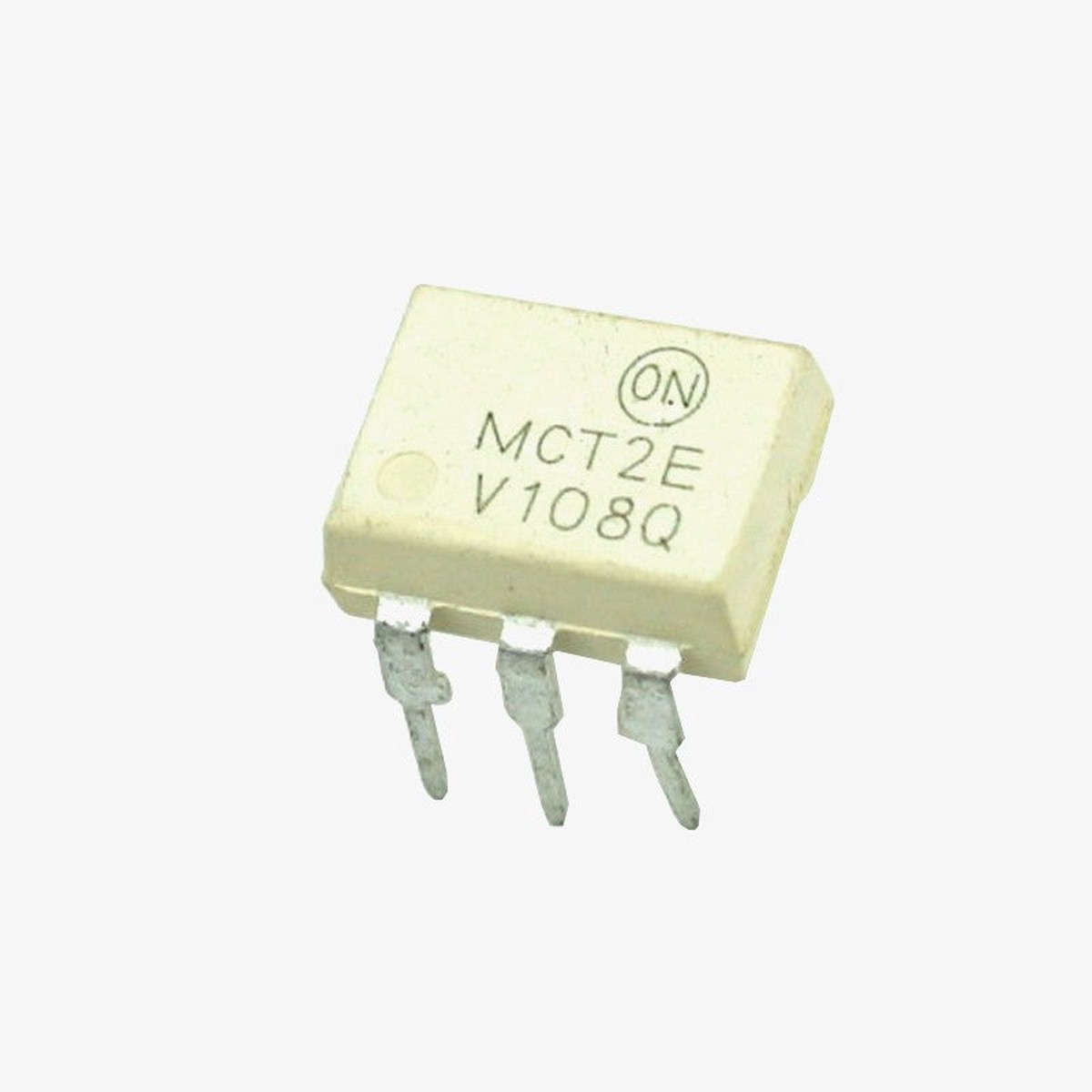

The MCT 2E ON is a high-isolation phototransistor optocoupler designed for reliable signal isolation in industrial, communication, and power control applications. It provides electrical isolation between input and output circuits, making it ideal for interfacing low-voltage logic to high-voltage systems.

Key Features:

• High Isolation Voltage: Provides up to 5000V peak isolation.
• Fast Switching Speed: Suitable for high-frequency signal transmission.
• Low LED Trigger Current: Reduces power consumption.
• Compact Package: Available in DIP-6 and SMD-6 for easy PCB integration.

Package Includes:

• 1 x MCT 2E ON Phototransistor Optocoupler

Specifications:

• Isolation Voltage: 5000V peak
• Collector-Emitter Voltage: 30V
• Current Transfer Ratio (CTR): 20% to 300%
• Operating Temperature Range: -55C to +100C
• Package Type: DIP-6 / SMD-6

Applications:

• Microcontroller Signal Isolation
• Industrial Automation
• Switching Power Supplies
• Communication Systems
• High-Voltage Signal Isolation

Datasheet:

Click here to view the datasheet
