Matek M10Q-5883 GPS Compass Module for Fixed Wing FPV

Matek M10Q-5883 GPS Compass Module for Fixed Wing FPV combines a u-blox M10-series GNSS receiver, QMC5883L compass, and compact patch antenna in a lightweight module for fixed-wing FPV and autopilot navigation builds.

This product page is optimized from Shopify product data and Matek’s official M10Q-5883 reference. The Matek reference page marks this model as EOL/discontinued and includes a counterfeit warning, so builders should verify wiring, firmware setup, and module sourcing before installation.

Product Images

Matek M10Q-5883 GPS compass module product imageMatek M10Q-5883 GPS compass module product imageMatek M10Q-5883 GPS compass module product image

Key Features

• u-blox M10-series GNSS module: designed for GPS positioning in fixed-wing FPV, ArduPilot, INAV, and compact autonomous aircraft builds.
• Multi-constellation reception: supports concurrent GPS, GLONASS, Galileo, and BeiDou reception for more flexible satellite coverage.
• Integrated QMC5883L compass: provides an external I2C compass option when the flight controller layout benefits from a separated compass module.

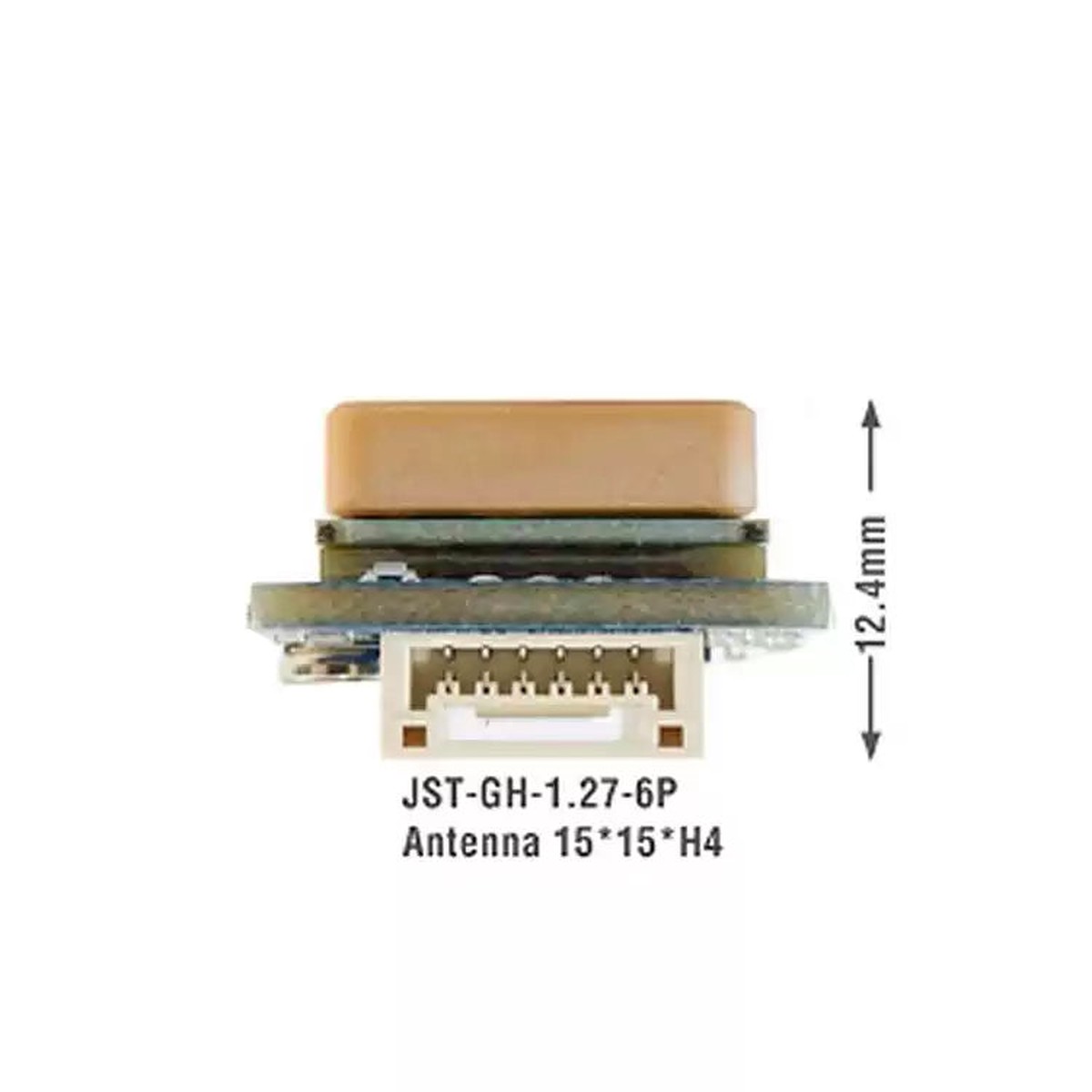

• 15 x 15 x 4 mm patch antenna: compact high-gain antenna format for lightweight aircraft and clean top-plate mounting.
• JST-GH-6P wiring: uses a 1.27 mm pitch JST-GH-6P connector and includes a 20 cm JST-GH cable for flight-controller installation.

Configuration and Specifications

Wiring Notes

• Power: connect the module 5V input to a compatible 4-9 V flight-controller supply and connect GND to GND.
• GNSS UART: connect module TX to the flight controller UART RX, and module RX to the flight controller UART TX.
• Compass I2C: connect DA to SDA and CL to SCL on the flight controller I2C bus.
• Setup: configure the flight-controller GPS and compass settings to match your firmware, port, and aircraft requirements before flight.

Packing List

• 1 x Matek M10Q-5883 GPS compass module
• 1 x JST-GH-6P to JST-GH-6P 20 cm silicone wire

Project Uses

• Fixed-wing FPV aircraft: compact GPS and compass positioning module for builds that need clean GNSS placement away from electrical noise.
• Autopilot navigation: useful for flight controllers that accept GNSS over UART and external compass data over I2C.
• Small UAV layouts: 20 x 20 mm footprint and 8 g weight make it easier to place on constrained frames.
• Replacement or spare module: suitable when a build needs a UART/I2C GPS compass module rather than a CAN GNSS unit.

FAQ

Q: Is this a CAN GPS module?
A: No. This listing is for the M10Q-5883 UART/I2C GNSS compass module. It is not a CAN GNSS unit.

Q: Which compass chip does it use?
A: The Matek reference page lists the compass as QMC5883L, connected through I2C.

Q: Which satellite systems are supported?
A: The module supports concurrent GPS, GLONASS, Galileo, and BeiDou reception.

Q: Why does the official Matek page mention EOL?
A: Matek marks the M10Q-5883 official reference page as EOL/discontinued. This Shopify listing’s availability is controlled by our current store inventory and product status.
