Specification:

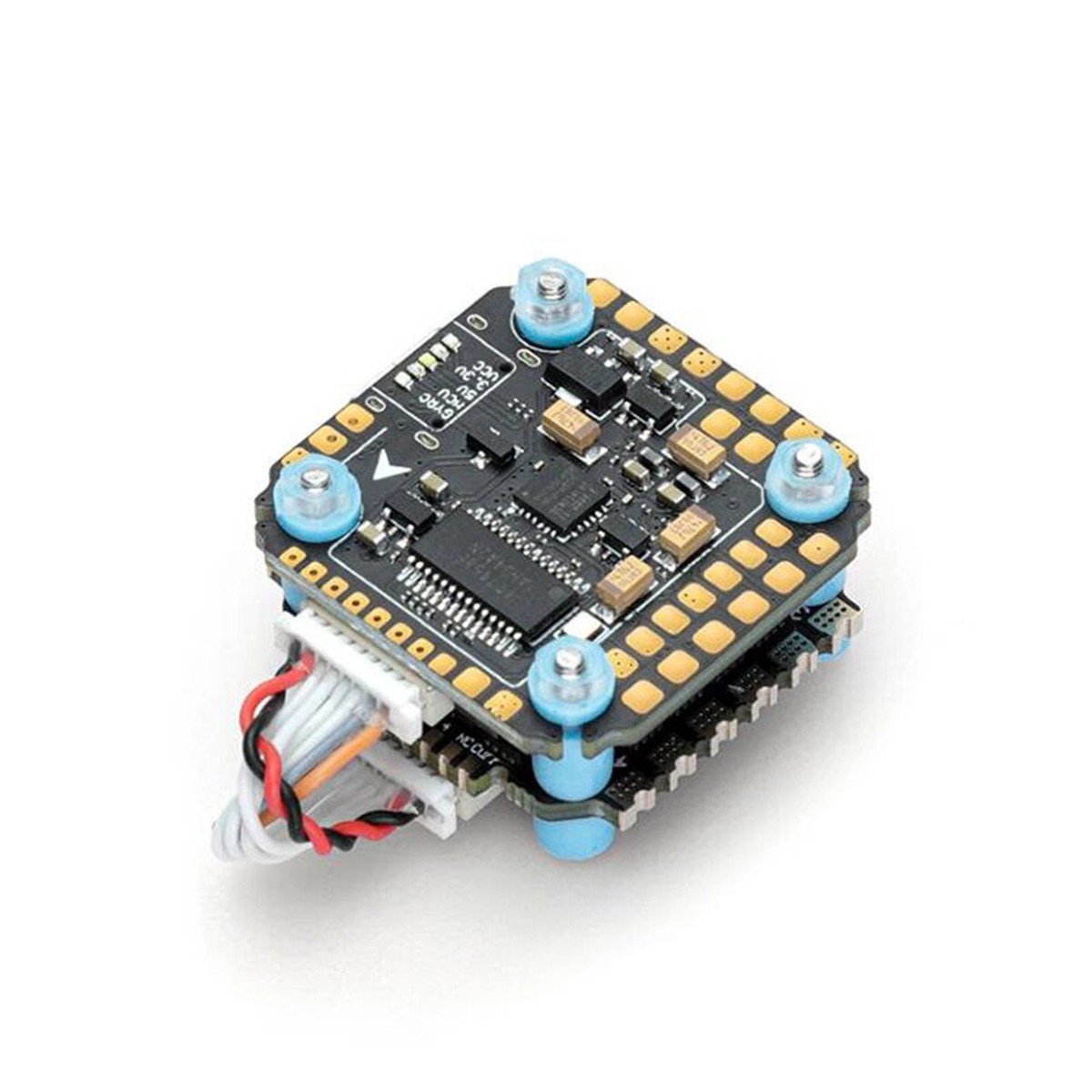

Item Name:MAMBA Stack F405 MINI MK3.5 40A 6S 8BIT ESC

Flight Controller:

MAMAB Basic F405MINI MK3.5
MCU: 168MHz STM32F405RGT6
GYRO: MPU6000
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 5 Set
ESC Soft: Dshot300/600
Power Led: Yes
LED Controller:BF LED
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 2.5A
MOUNTING:20mm, M2
ESC:
MAMBA F40_BLS MINI
INPUT VOLTAGE: 2~6S Lipo (8.4V~25V)
CONTINUE CURRENT: 40A4
BURST CURRENT: 45A (10S)
BEC: No
TargetBLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING:20mm, M3/M2

Features:

Fixed

1. Add I2C function

2. When you connect the USB, the receiver and OSD settings can be saved

3. Increase the pad area

4. LED signal selectionwhen Mamba Led sys available

5. BEC short circuit protection

6. TVS instant high voltage protection 30V

Update

1. F405 models support F.protMost

2. Upgrade the anti-interference cable

3. Use TypecMost

4. The pad area of Mini flight controller (2020) increased by 140%

Added

1. Add self-recovery insurance to the receiver’s 5V power supply

2. Increase the camera VCC power supply pad

3. Standard flight controller (30.530.5) adds spare pad

4. Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference

Package Included:

1 x MAMBA Stack Basic F405 MINI MK3.5 40A 6S 8BIT
1 x High-Frequency 470uF/35V
2 x 8pin sh1.0
2 x 16AWG 60mm
AMASS OriginalXT60
