NoteBecause STM32F722 heat large please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.

Diagram Link From Help Centre Link

FIRMWARE TARGET MAMBA F722

The Stack can fit both M2/M3 Mounting hole Framekit Adaptor inside

FC Specifications
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Uarts: 6Set
ESC Soft: Dshot300/600/
LED: Blue&Orange for FC Status,,White 5V,Red 3.3V
WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes

UARTS:6 PortsDJI PORT SUPPORTBEC: 5V 2A&9V 1.5A

FC Firmware
BetaFlight
Target: MAMBA F722
Mounting: 2020mm,2
Dimensions: 3036.513.5mm
Weight: 3.9g

Mamba F35 35A ESCItem name: Mamba F35HV ESCInput voltage:3-6S LIPO (12.5- 25V)Burst Curr :200AMAX:45A(8S)BEC: NO Mounting Size: 2020mm, 2 Mounting Hole: M2 Weight: 7g

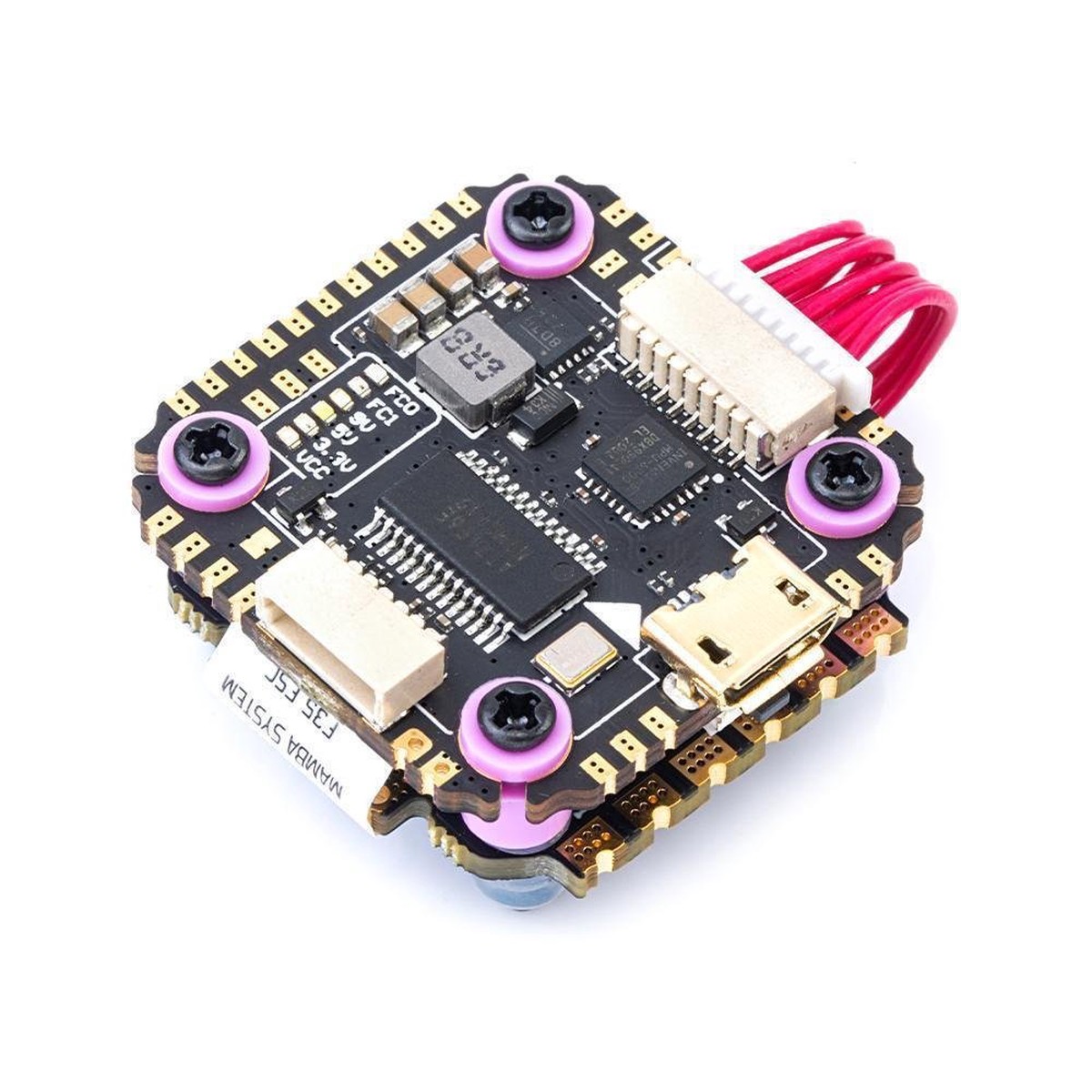

Package Included:1 x Mamba F722 Mini DJI Betaflight Flight Controller1 x Mamba F35 35A6SHV ESC
