Description

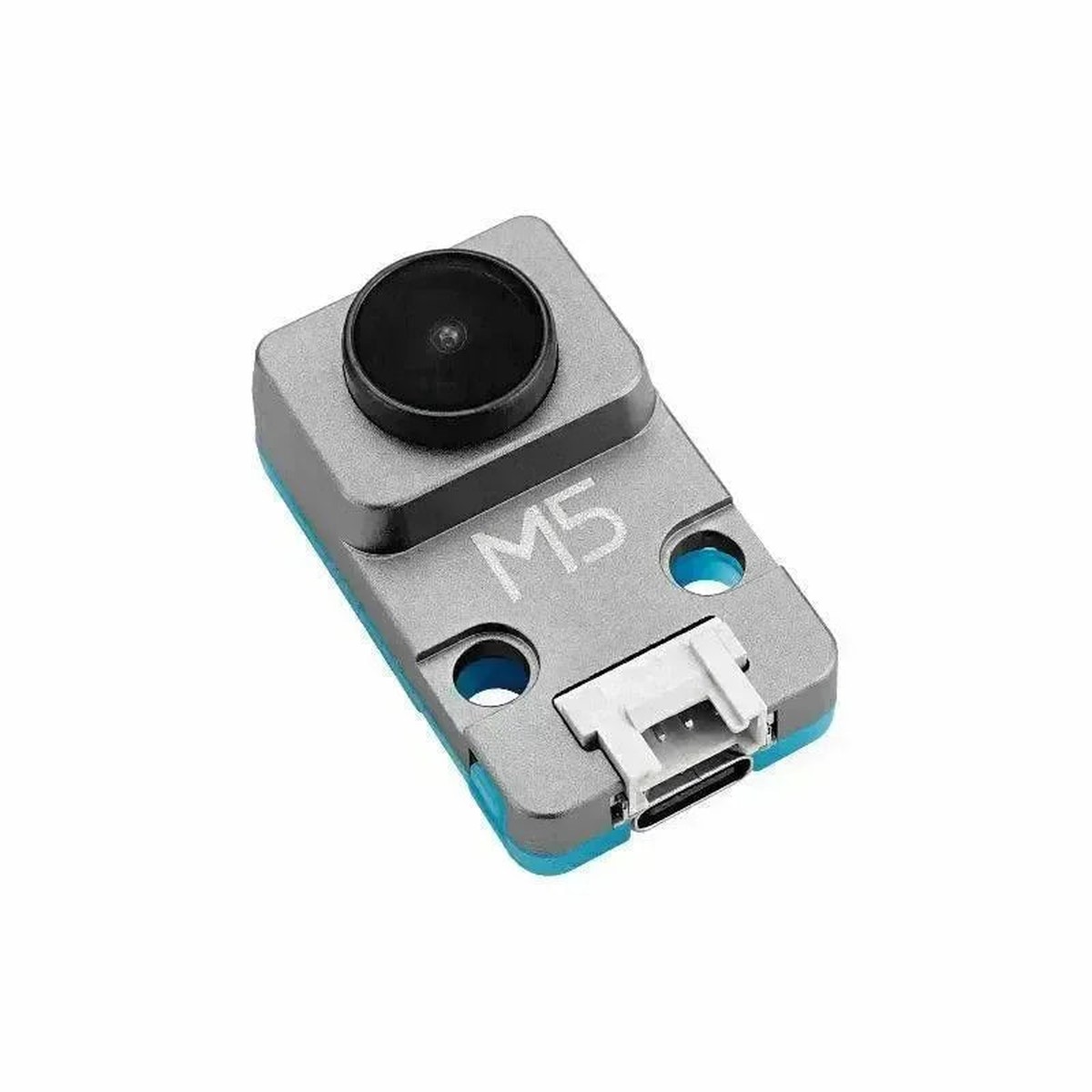

UnitV-M12 is an AI camera unit with an M12 lens specification and a Kendryte K210 processor. It integrates a dual-core 64-bit RISC-V CPU and a neural network processor edge computing system-on-chip, providing strong hardware support for embedded machine vision applications.

The included OV7740 wide-angle camera module follows the M12 optical lens specification and supports replacement with other M12 lenses for different shooting scenarios. The compact body includes two programmable buttons, a microSD card expansion slot, a HY2.0-4P interface, and a Type-C interface for data connection with the main controller.

UnitV-M12 supports multiple image recognition functions, including real-time acquisition of target size, coordinates, and type information. It can also perform convolutional neural network calculations, making it suitable for low-threshold embedded machine vision solutions.

Features

• Dual-core 64-bit RISC-V RV64IMAFDC CPU, 400MHz normal frequency
• Double-precision FPU
• 8MiB 64-bit on-chip SRAM
• Neural Network Processor KPU, 0.8TOPS
• Programmable I/O Array FPIOA
• AES and SHA256 accelerator
• Direct Memory Access Controller DMAC
• MicroPython support
• Firmware encryption support
• 16M Flash
• OV7740 camera
• 2 programmable buttons
• microSD card expansion interface
• HY2.0-4P compatible GROVE interface

Specifications

Interface

• Type-C interface
• HY2.0-4P interface supporting I2C, I/O, and UART
• microSD card expansion slot
• 2 programmable buttons
• OV7740 M12 camera module

Applications

• Object detection and classification
• Real-time acquisition of target size and coordinates
• Real-time acquisition of detected target types
• Shape recognition
• Video recording

Product List

• 1 x UnitV-M12
• 1 x HY2.0-4P Grove Cable (20cm)

Learn

UnitV currently cannot recognize all types of microSD cards. The official test results include the following examples:

Resources

• Official Documentation
• MaixPy Documentation
• K210 Datasheet
• OV7740 Datasheet
• UnitV-M12 Track Ball Example with RoverC
• Official Product Video

FAQ

What processor does UnitV-M12 use?

It uses the Kendryte K210 processor with a dual-core 64-bit RISC-V CPU.

What camera module is included?

It includes an M12 specification wide-angle OV7740 camera module.

Can the lens be replaced?

Yes. The OV7740 camera module follows the M12 optical lens specification and supports replacement with other M12 lenses.

Does UnitV-M12 support microSD cards?

Yes. It includes a microSD card expansion slot, but the official documentation notes that UnitV cannot recognize all types of microSD cards.

What interfaces are available?

It provides one Type-C interface and one HY2.0-4P interface supporting I2C, I/O, and UART.
