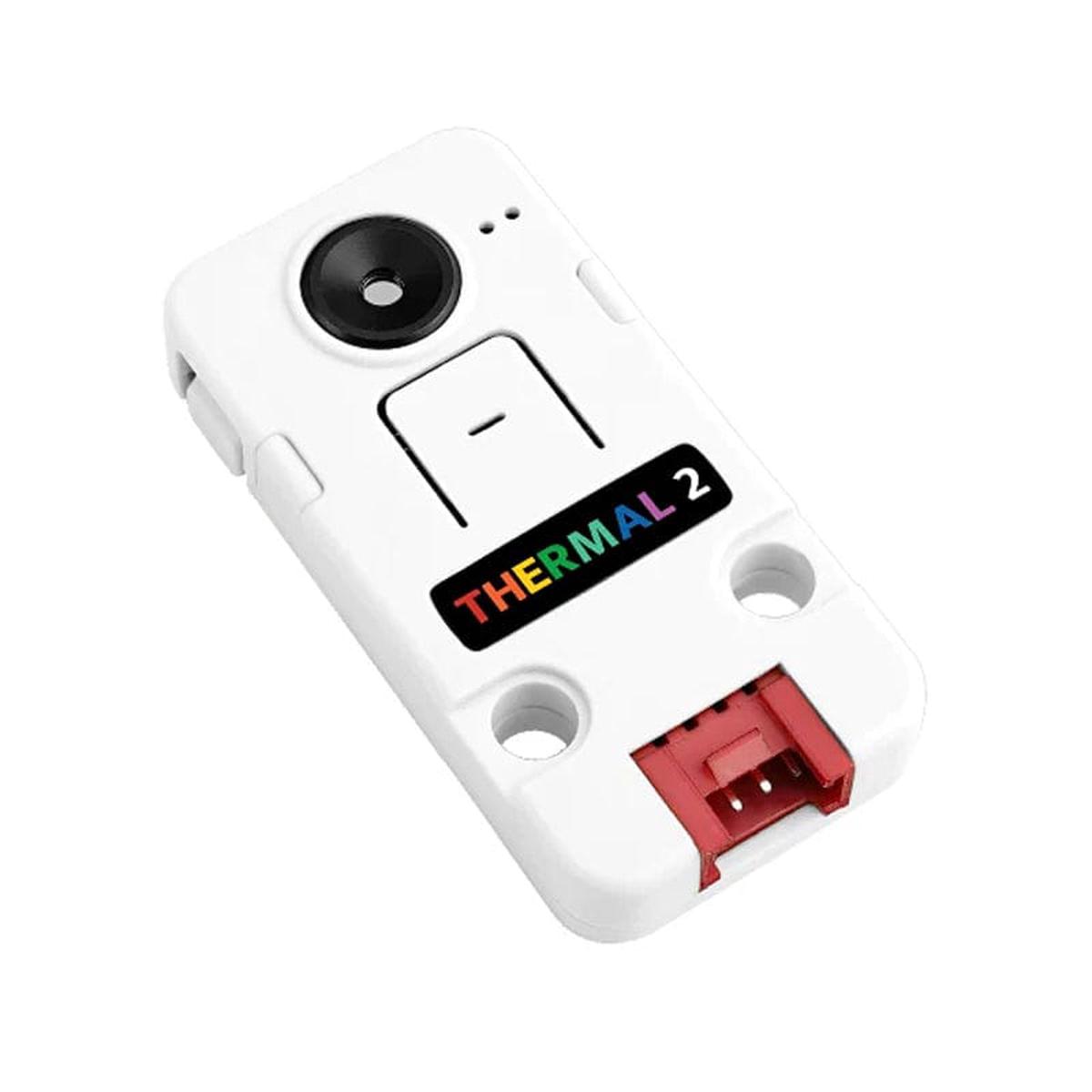

M5Stack Thermal Camera 2 Unit (MLX90640) -110 Degree FoV

Name: M5Stack Thermal Camera 2 Unit (MLX90640) -110 Degree FoV
SKU: ZB329524235
Availability: InStock

Price

SKU:

ZB329524235

Category: Electronic Components

Shopping information

Description

The UNIT Thermal2 from M5Stack is a data processing MCU-equipped MLX90640 thermal imaging acquisition unit. It has 32×24 imaging pixels, a field of view of 110×75 and a temperature measurement range of -40C to 300C.

The MCU uses ESP32, which is capable of high and low temperature alarms, average, maximum and minimum values reading, and data caching via data processing.

The board integrates with a buzzer, RGB indicator, function and reset buttons, and communicates with the host computer through I2C. This product can be used together with the host computer or separately, and is applicable for temperature measurement and abnormal alarms.

Features

MCU: ESP32-PICO-D4
MLX90640 Infrared (IR) Sensor
Reset button
Passive buzzer
Integrated programmable RGB LED
GROVE I2C/HY2.0-4Pinterface
Programming platform: Arduino/UIFlow

Package Contents

1x THERMAL2 Unit
1x HY2.0 4-pin cable

Specifications

Resources	Parameters
MCU	ESP32-PICO-D4
SENSOR	MLX90640
POWER	5V @ 0.5A
Field of View	11075
Measurement Range	-40C ~ 300C
Resolution	32 x 24
Refresh Rate	0.5Hz-64Hz
Operating temperature	-10C ~ 60C
Housing material	Plastic ( PC )
Product Size	48mm x 24mm x 8mm
Package Size	136mm x 92mm x 13mm
Product Weight	4.9g
Package Weight	10.7g
