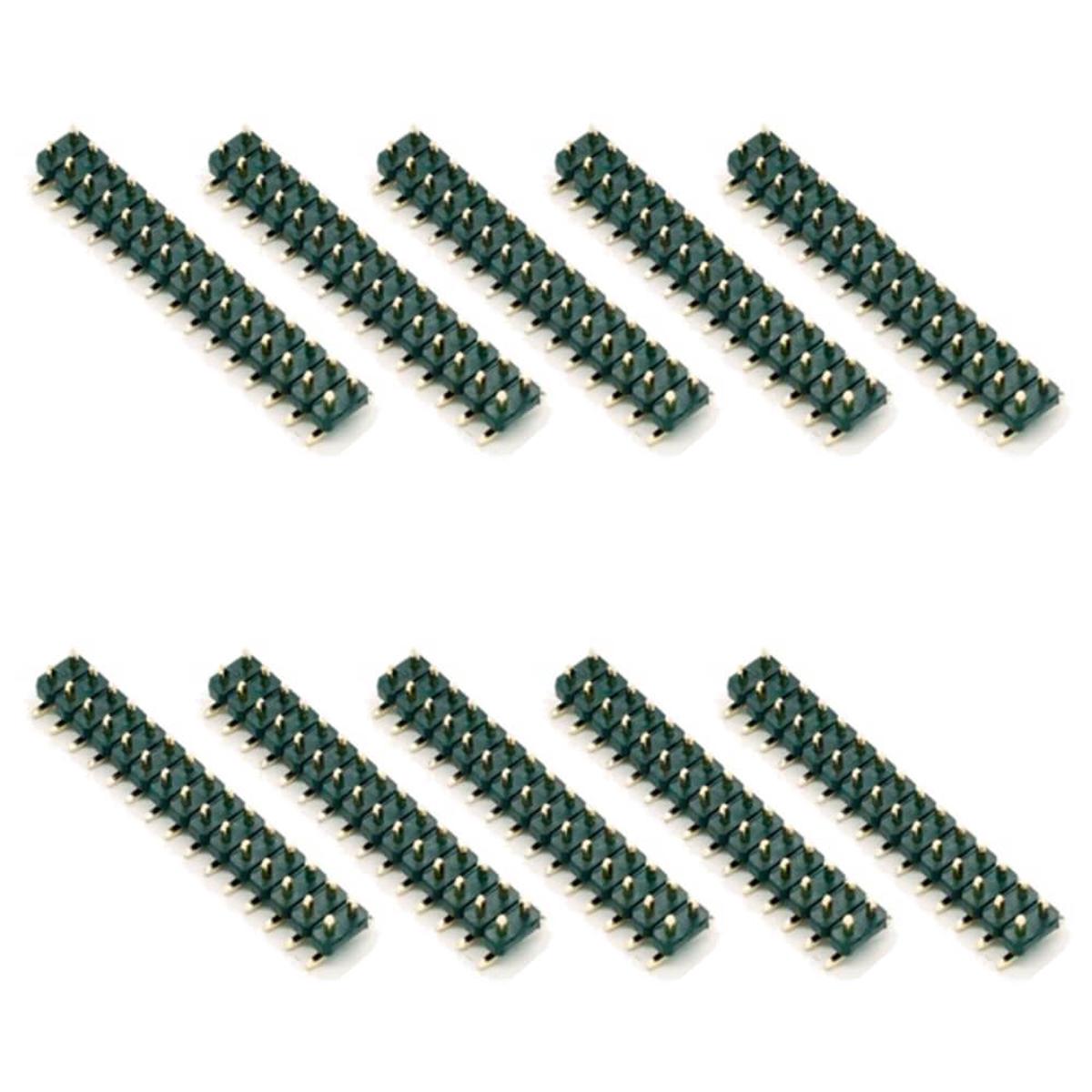

This is a pack of 10M5Stack Male M5-Bus headers, designed for surface mount soldering to a custom PCB.

Each header features a 215 pin 2.54mm specification. They are compatible with the M5-Bus interface ofM5Stack Coreand Module series, supports DIY module expansion, and provides a flexible function expansion solution for main control devices.

Features

• Male M5-Bus headers
• 2×15 @ 2.54mm
• Surface mount
• Compatible with M5Stack Module and Core series M5-Bus
• Enables DIY module expansion
• Extends functionality of M5Stack main control devices

Specifications

• Locating post:
  • Diameter 1.0mm
  • Height 1.7mm
  • Pitch: 2.54mm
• Pin Size: 0.64×0.64mm
• Product size: 38.0 x 8.0 x 5.0mm

Resources

• Product documentation

Package Contents

• 1x M5Stack Male M5-Bus Headers (10-Pack)
