M5Stack GRBL Module 13.2 Stepmotor Driver

M5Stack GRBL Module 13.2 Stepmotor Driver

Electronic Components

M5Stack GRBL Module 13.2 Stepmotor Driver

Price
Original price was: $48.00.Current price is: $38.40.

SKU:

US31209405

Category:

Shopping information

Description

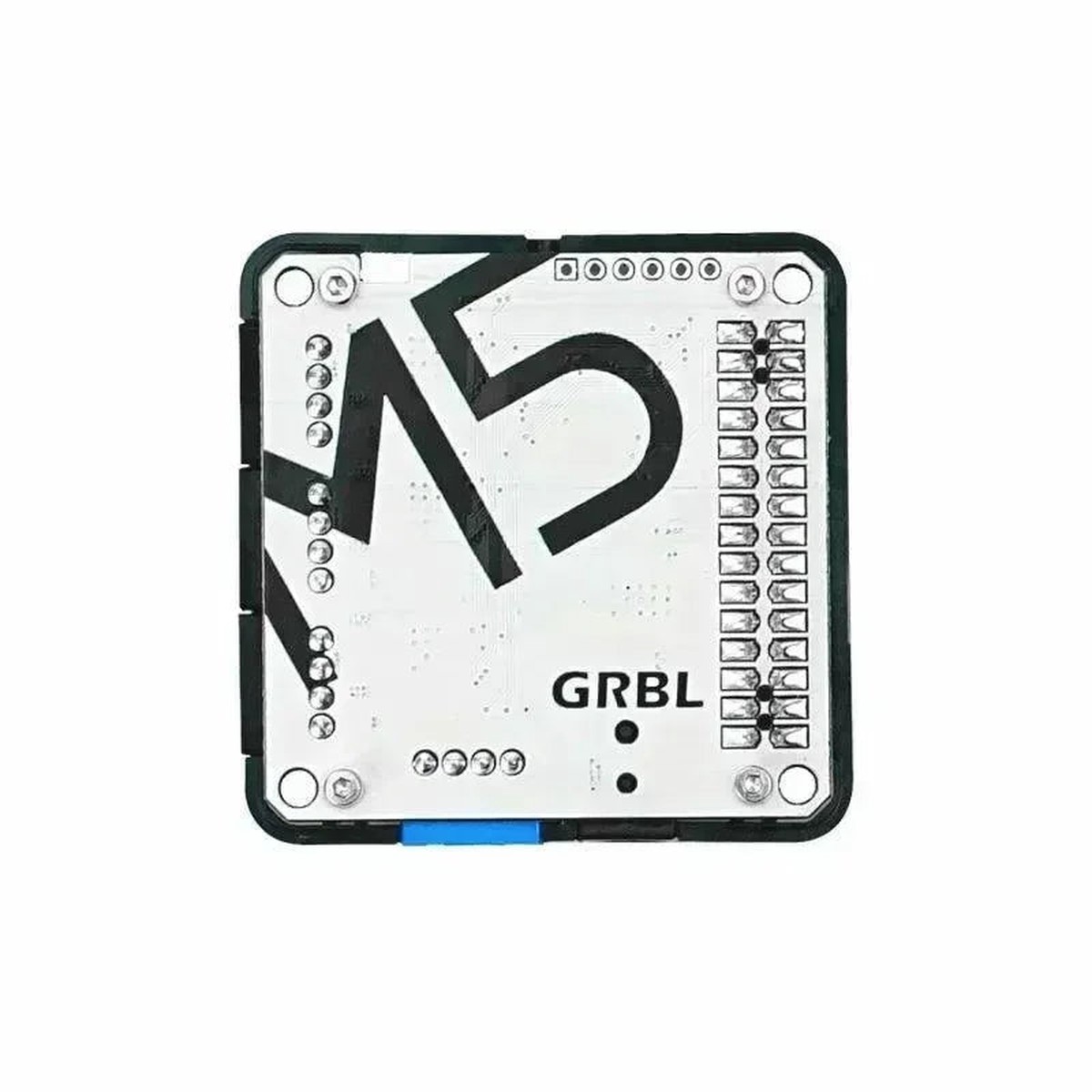

Module13.2 GRBL is a three-axis stepper motor driver module in the M5Stack stackable module series. It uses the ATmega328P-AU controller with three DRV8825PWPR stepper motor driver chips, enabling simultaneous control of three bipolar stepper motors.

The module provides an I2C communication interface and integrates a DIP switch for motor step subdivision adjustment, up to 1/32 microstepping, and I2C address configuration. It supports dual I2C addresses 0x70 and 0x71, allowing two Module13.2 GRBL modules to be stacked for six-axis control.

The power input interface supports DC 9-24V, and each motor driver channel supports up to 1.5A drive current. It also includes three sets of limit switch signal interfaces for external limit switches, using active-low motor braking control.

Features

  • ATmega328P-AU controller
  • Three-axis DRV8825PWPR stepper motor driver
  • Supports three bipolar stepper motors
  • Drive current up to 1.5A per channel
  • Maximum 1/32 microstepping
  • I2C communication interface
  • Supports I2C addresses 0x70 and 0x71
  • Stack two modules for six-axis control
  • Limit switch interface with active-low control

Specifications

Specification Parameter
Motor Driver Chip DRV8825PWPR
Controller Chip ATmega328P-AU
Communication Interface I2C communication @ 0x70, 0x71
Max Driving Current per Channel 1.5A
Maximum Supported Microstepping 1/32
Interface Type XT2.54-4P
Power Input DC 9-24V
Product Size 54.2 x 54.2 x 13.2mm
Product Weight 22.5g
Package Size 95.0 x 65.0 x 25.0mm
Gross Weight 42.3g

Microstepping Configuration

MODE2 MODE1 MODE0 Step Mode
0 0 0 Full step with 71% current
0 0 1 1/2 step
0 1 0 1/4 step
0 1 1 1/8 step
1 0 0 1/16 step
1 0 1 1/32 step
1 1 0 1/32 step
1 1 1 1/32 step

Interface

  • I2C communication interface with addresses 0x70 and 0x71
  • DIP switch for microstepping configuration
  • DIP switch for I2C address configuration
  • XT2.54-4P motor interface
  • Three sets of limit switch signal interfaces
  • Active-low limit switch braking control
  • DC 9-24V power input interface

Applications

  • Printers
  • Scanners
  • Office automation machines
  • Factory automation
  • Robotics
  • Stepper motor motion control

Product List

  • 1 x Module13.2 GRBL

Resources

  • Official Documentation
  • Module13.2 GRBL Schematics PDF
  • DRV8825 Datasheet
  • GRBL v0.8 Configuration Reference Document
  • Module13.2 GRBL Arduino Library
  • Module13.2 GRBL UiFlow1 Documentation
  • Module13.2 GRBL UiFlow2 Documentation

FAQ

What motor driver chip does Module13.2 GRBL use?

It uses three DRV8825PWPR stepper motor driver chips.

How many stepper motors can it control?

One Module13.2 GRBL can control three bipolar stepper motors simultaneously.

Can two modules be stacked for more axes?

Yes. Two Module13.2 GRBL modules can be stacked to achieve six-axis control by using I2C addresses 0x70 and 0x71.

What is the maximum supported microstepping?

The module supports up to 1/32 microstepping.

What power input range does it support?

The power input interface supports DC 9-24V.
