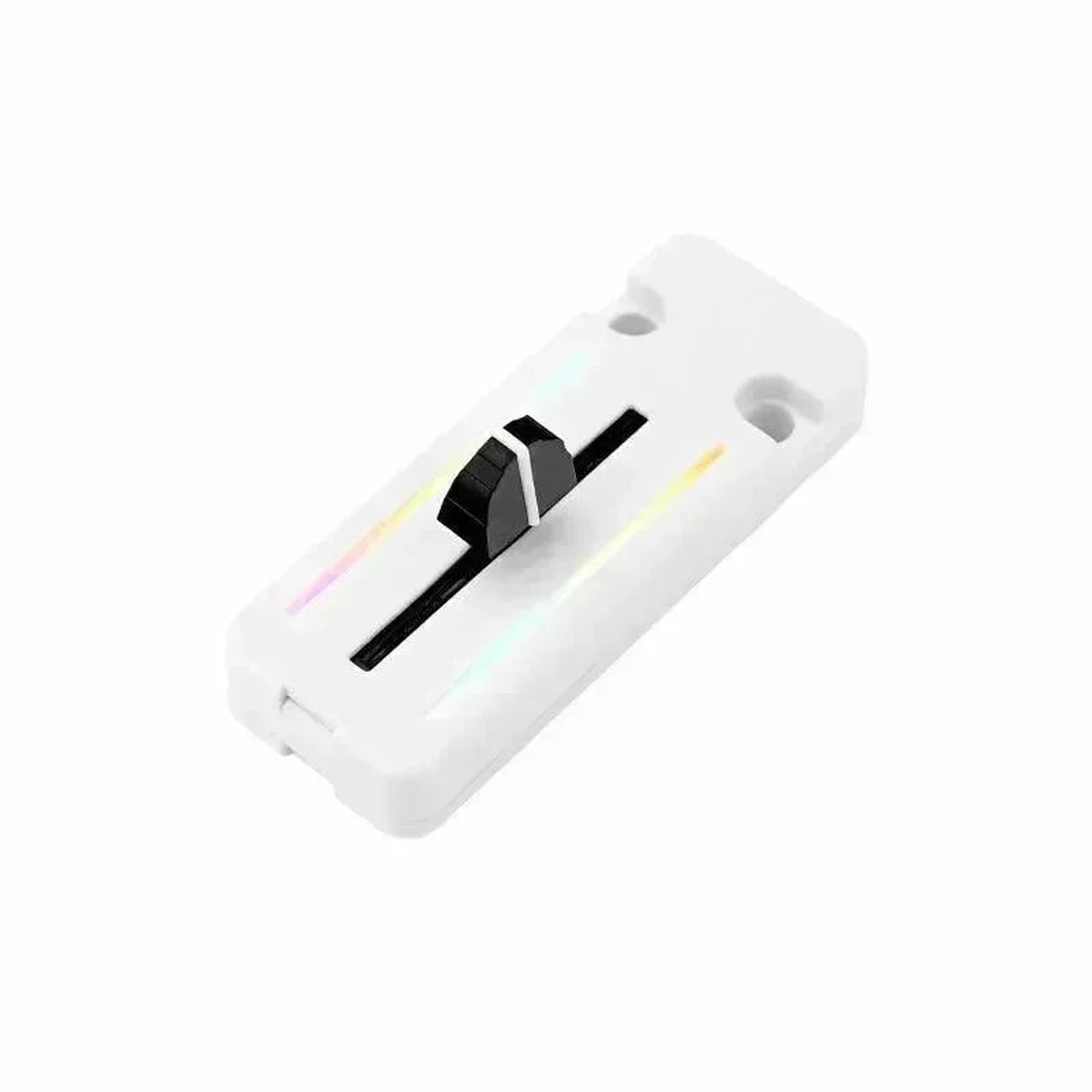

M5Stack Fader Unit with B10K Potentiometer

M5Stack Fader Unit with B10K Potentiometer

Electronic Components

M5Stack Fader Unit with B10K Potentiometer

Price
Original price was: $12.00.Current price is: $9.60.

SKU:

US31209434

Category:

Shopping information

Description

Unit Fader is a slider potentiometer and fader unit integrated with indicator lights. It is designed with a 35mm travel slider potentiometer and 14 SK6812 programmable RGB LEDs, providing smooth analog input and customizable lighting feedback for interactive control applications.

The fader features center positioning and comfortable sliding damping for smoother, more stable, and precise control. The integrated LEDs support digital addressing, allowing each LED’s color and brightness to be controlled individually. It is suitable for human-computer interaction, lighting control, music control, adjustment switches, and potentiometer level signal input.

Features

  • 35mm fader travel: provides smooth slider movement for precise analog control.
  • Center positioning: supports centered physical positioning for intuitive control feedback.
  • Comfortable sliding damping: improves control feel and stability during adjustment.
  • 10k adjustable resistor: uses a single 10k potentiometer for level signal input.
  • Programmable RGB lights: integrates 14 SK6812 programmable RGB LEDs.
  • GROVE interface: easy connection with compatible M5Stack controllers.
  • Development platform support: supports Arduino and UIFlow.

Specifications

Product Unit Fader
SKU U123
Fader Travel 35mm
Fader Handle Length 10mm
Single Resistor 10k
Output Voltage 0-3.3V when powered by 5V
RGB LED 14 x SK6812 programmable RGB lights
Working Current 90.04mA, light brightness at 50% and fader max output
Product Size 64.0 x 24.0 x 22.8mm
Net Weight 32g
Package Size 136 x 92 x 24mm
Gross Weight 40g

Protocol

Analog Output 0-3.3V when powered by 5V
Potentiometer Single 10k adjustable resistor
LED Control SK6812 programmable RGB LED control
LED Quantity 14 programmable RGB LEDs
Host Interface GROVE interface

Applications

  • Human-computer interaction.
  • Lighting and music control.
  • Adjustment switches.
  • Potentiometer level signal input.

Product List

1 Unit Fader
1 HY2.0-4P Grove connection cable (20cm)

Other Content

  • Analog control: the fader outputs a 0-3.3V level signal when powered by 5V.
  • Lighting feedback: 14 SK6812 RGB LEDs can be individually addressed for color and brightness effects.
  • Control feel: center positioning and smooth sliding damping help provide stable physical adjustment.

Resources

  • Official Documents
  • Unit Fader Example with M5Core
  • FastLED Arduino Library
  • Unit Fader UiFlow1 Docs
  • Unit Fader UiFlow2 Docs
  • Home Assistant Integration
  • Unit Fader Official Video

FAQ

What is Unit Fader used for? It is used for human-computer interaction, lighting and music control, adjustment switches, and potentiometer level signal input.
What is the fader travel distance? The official specification lists a 35mm fader travel distance.
What resistance value does the fader use? It uses a single 10k adjustable resistor.
What is the output voltage range? The output voltage is 0-3.3V when powered by 5V.
How many RGB LEDs are integrated? It integrates 14 SK6812 programmable RGB LEDs.
Which development platforms are supported? The official page lists Arduino and UIFlow support.
What is included in the package? The package includes 1 Unit Fader and 1 HY2.0-4P Grove connection cable (20cm).
