Description

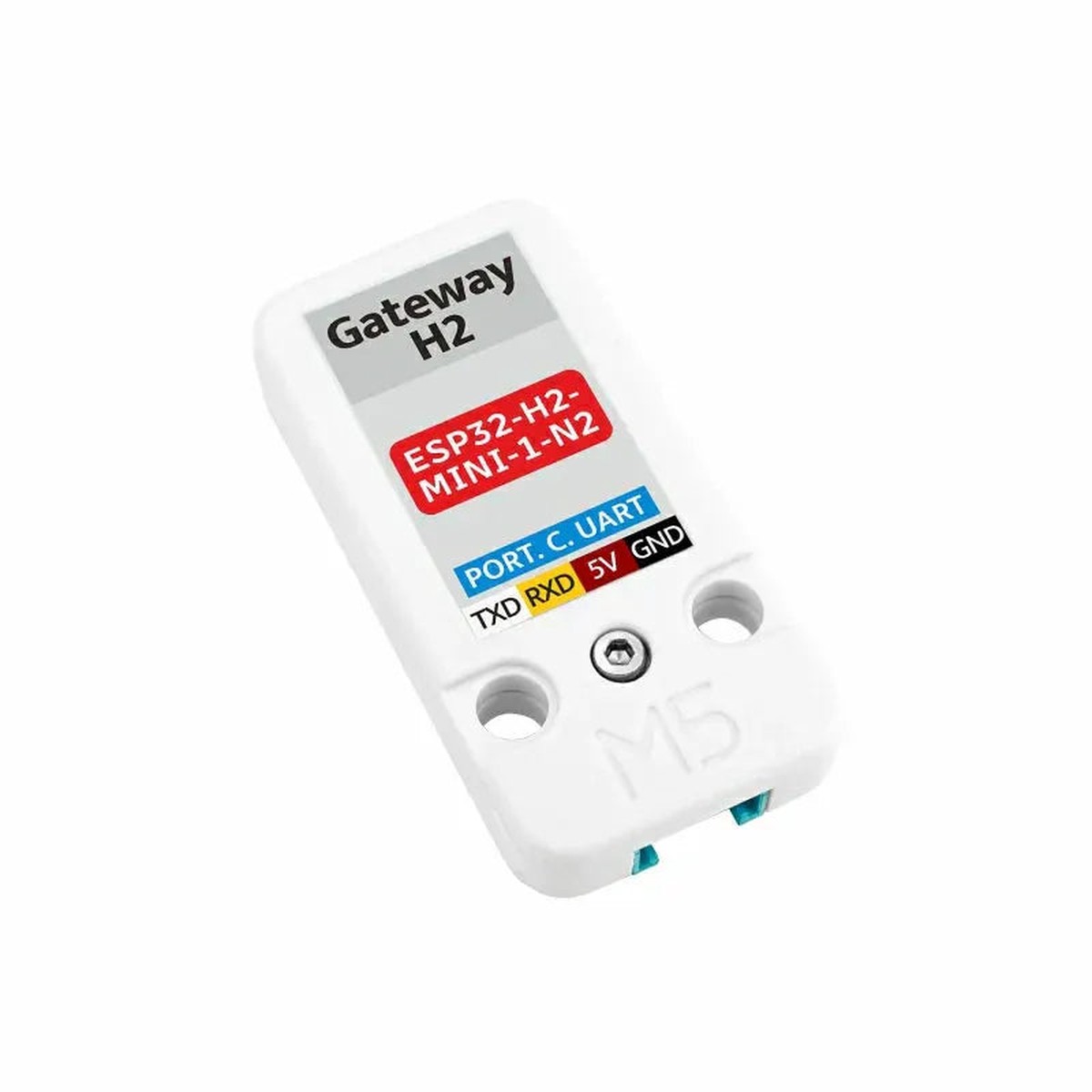

The Gateway H2 is a compact wireless gateway unit built around the ESP32-H2-MINI-1-N2 module. It combines a 32-bit single-core RISC-V MCU running up to 96MHz with IEEE 802.15.4 wireless communication for Zigbee 3.0, Thread 1.3, and Thread-based Matter applications.

The Gateway H2 communicates with M5Stack hosts through the Grove Port C UART interface and can work as a gateway, such as a Thread Border Router, or as an end device. Its hardware encryption engine, low-power operation, Type-C port, and reserved download header make it suitable for secure IoT prototyping, debugging, and deployment.

Features

• Gateway H2 supports Zigbee, Thread, and Thread-based Matter protocols.
• ESP32-H2-MINI-1-N2 module with a 32-bit single-core RISC-V processor up to 96MHz.
• Integrated IEEE 802.15.4 wireless communication with an on-board PCB antenna.
• Grove Port C UART connection for data exchange with M5 series hosts.
• Hardware encryption engine for high-security IoT application requirements.
• Can operate as a gateway, such as Thread Border Router, or as an end device.
• Type-C port and standard download header support firmware flashing and debugging.
• Development workflows are documented for Arduino IDE and ESP-IDF.

Specifications

Applications

• Smart home control and cross-ecosystem Matter connectivity.
• Industrial automation nodes that need Zigbee or Thread wireless links.
• Healthcare and consumer electronics prototypes with secure IoT networking.
• Smart agriculture systems using low-power sensor and gateway nodes.
• Environmental monitoring and distributed sensor-network development.

Product List

• 1 x Unit Gateway H2
• 1 x HY2.0-4P Grove Cable (20cm)

Other Content

The Gateway H2 can be used with a host to build cross-ecosystem connectivity, or it can run IoT tasks independently when the firmware design allows. For download mode, hold the Boot button, connect the USB cable, and release the button after the connection is stable.

Pin mapping for the HY2.0-4P connector follows Grove Port C: black is GND, red is 5V, yellow is UART_RX, and white is UART_TX. The Gateway H2 is therefore a practical bridge when an M5Stack host needs UART access to an ESP32-H2 wireless co-processor.

Resources

Unit Gateway H2 product document

ESP32-H2-MINI-1 module certifications

Unit Gateway H2 schematic PDF

Unit Gateway H2 structure files

ESP32-H2-MINI-1-N2 module datasheet PDF

Unit Gateway H2 Arduino guide

Unit Gateway H2 UiFlow2 reference

Unit Gateway H2 ESP Thread Border Router guide

Unit Gateway H2 ESP Zigbee Gateway guide

Unit Gateway H2 ESP Zigbee NCP guide

FAQ

Which wireless protocols does it support?

The Gateway H2 supports IEEE 802.15.4 based Zigbee 3.0, Thread 1.3, and Thread-based Matter workflows.

How does it connect to an M5Stack host?

It communicates through the Grove Port C UART interface, using the HY2.0-4P cable included in the package.

Can it work as a Thread Border Router?

Yes. The documentation describes using the module as a gateway, including Thread Border Router use, or as an end device depending on the firmware.

How is firmware downloaded to the H2 chip?

Use the Type-C port and Boot button download mode, or the reserved download header, for firmware flashing and debugging.
