Description

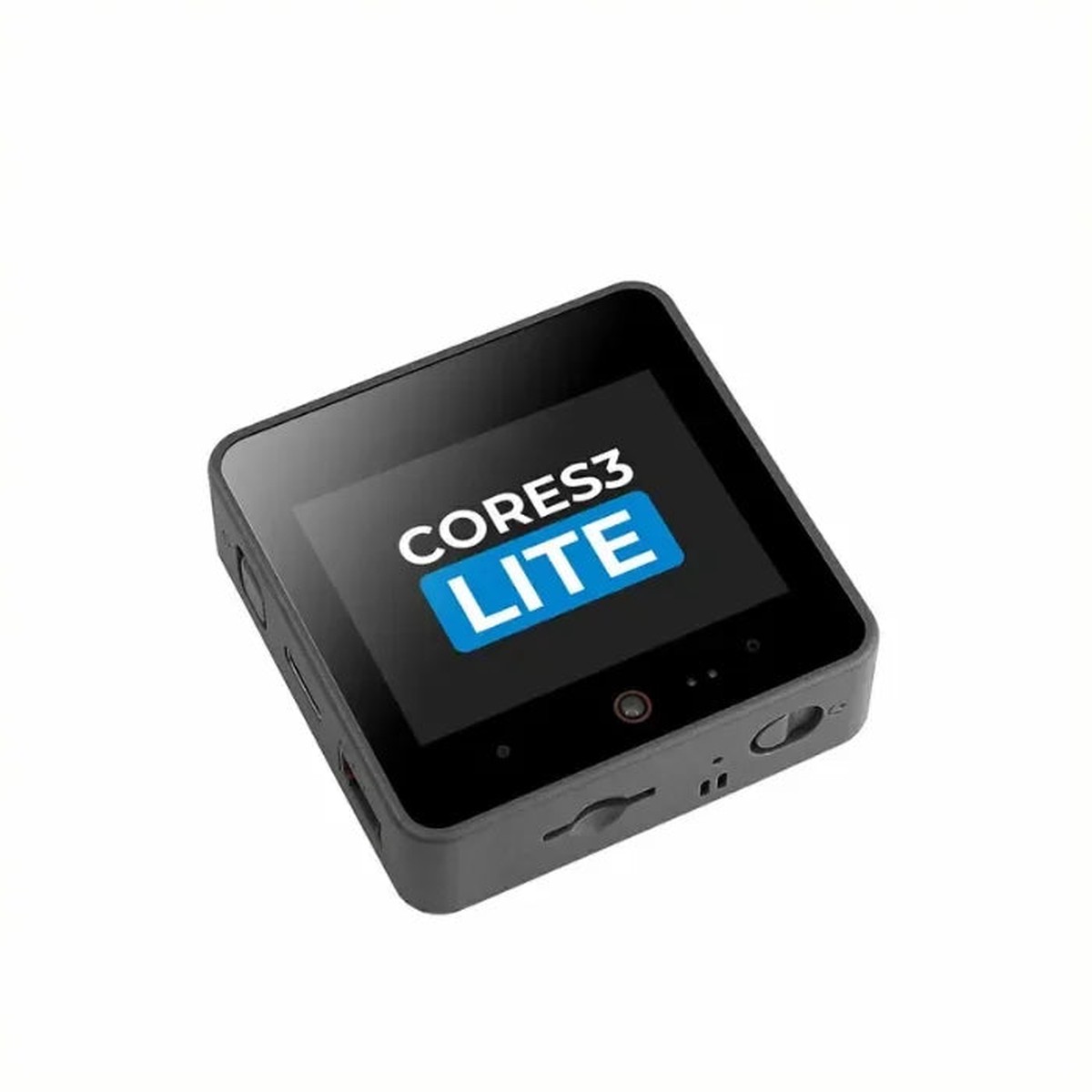

CoreS3 Lite is a programmable ESP32-S3 IoT controller built for interactive products, smart-home systems, robotics, and edge-device prototypes. It combines a 240MHz Xtensa 32-bit LX7 dual-core processor with 16MB Flash and 8MB PSRAM, giving developers a compact controller with enough memory for display, sensor, audio, and camera workflows.

The front of CoreS3 Lite integrates a 2.0-inch capacitive-touch IPS display, a 0.3MP GC0308 camera, and an LTR-553ALS-WA proximity and ambient-light sensor. Inside the device, a BMI270 6-axis IMU, BMM150 3-axis magnetometer, BM8563 RTC, AXP2101 power-management IC, microSD slot, 1W speaker, ES7210 dual-microphone audio codec, and AW88298 I2S amplifier support richer interaction designs.

With 2.4GHz Wi-Fi, USB OTG, a 200mAh LiPo battery, and a magnetic back cover for quick mounting, CoreS3 Lite is suitable for desktop voice assistants, educational robots, industrial status monitors, and compact control panels.

Notes

Products containing magnets may interfere with the BMM150 magnetic-field sensor and cause abnormal readings. When using CoreS3 Lite with M5 controllers or accessories that contain magnets, remove the magnets when needed and avoid placing the BMM150 near strong magnetic fields.

Features

• CoreS3 Lite controller: ESP32-S3 with 240MHz dual-core Xtensa LX7 processor, 16MB Flash, and 8MB PSRAM.
• Interactive front panel: 2.0-inch 320 x 240 capacitive-touch IPS display with GC0308 0.3MP camera.
• Sensor set: LTR-553ALS-WA proximity and light sensor, BMI270 6-axis IMU, and BMM150 3-axis magnetometer.
• Power and timekeeping: AXP2101 power management, BM8563 RTC, real-time power monitoring, and low-power timed wake-up.
• Audio interaction: AW88298 16-bit I2S amplifier with 1W speaker plus ES7210 codec with dual-microphone input.
• Development support: UiFlow2, Arduino IDE, PlatformIO, and ESP-IDF workflows with microSD storage.

Specifications

SoC	ESP32-S3, 32-bit Xtensa LX7 dual-core, 240MHz
USB	USB OTG, USB Serial/JTAG
Flash	16MB
PSRAM	8MB
Wireless	2.4GHz Wi-Fi
Display	2.0-inch 320 x 240 IPS display, ILI9342C driver
Touch	FT6336U capacitive touch driver
Camera	GC0308, 0.3MP
Proximity and light sensor	LTR-553ALS-WA
Power management	AXP2101
Motion sensors	BMI270 6-axis IMU, BMM150 3-axis magnetometer
RTC	BM8563
Speaker	AW88298 16-bit I2S amplifier, 1W speaker
Audio codec	ES7210, dual microphone input
Battery	200mAh LiPo battery
Storage	microSD card slot
Device size	54.0 x 54.0 x 16.5mm
Device weight	54.0g
Package size	133.0 x 93.5 x 22.5mm
Gross weight	71.5g

Applications

• CoreS3 Lite control panel for smart-home systems and connected appliances.
• Desktop voice assistant or robot companion with display, microphone, speaker, camera, and sensors.
• Educational interactive robots and AIoT learning projects.
• Industrial equipment status monitor with touch UI, RTC, microSD logging, and wireless connectivity.

Product List

• 1 x CoreS3-Lite
• 1 x Hex Key L-Shape 2.5mm (For M3 Screw)

Other Content

The schematic and model files help confirm display, camera, microSD, audio, RTC, sensor, HY2.0-4P, and M5-BUS connections before custom integration.

CoreS3 Lite can be developed through UiFlow2 or Arduino IDE, while PlatformIO and ESP-IDF resources support lower-level firmware work.

For deployed devices, the magnetic back cover, onboard battery, RTC, and power-management IC help simplify mounting, timed wake-up, and portable operation.

Resources

CoreS3 Lite product document

CoreS3 Lite Arduino IDE quick start

CoreS3 Lite UiFlow2 quick start

CoreS3 Lite schematic PDF

CoreS3 Lite model size PDF

CoreS3 Lite structure files

ESP32-S3 technical reference manual

AXP2101 power-management datasheet

GC0308 camera datasheet

LTR-553ALS-WA proximity and light sensor datasheet

BMI270 6-axis IMU datasheet

BMM150 magnetometer datasheet

BM8563 RTC datasheet

ES7210 audio codec datasheet

AW88298 I2S amplifier datasheet

CoreS3 Lite documentation PDF

FAQ

What processor does it use?

It uses an ESP32-S3 with a 240MHz Xtensa LX7 dual-core processor, 16MB Flash, and 8MB PSRAM.

Does it include display and touch input?

Yes. CoreS3 Lite includes a 2.0-inch 320 x 240 IPS display with FT6336U capacitive touch.

Which sensors are built in?

It includes a GC0308 camera, LTR-553ALS-WA proximity and light sensor, BMI270 IMU, BMM150 magnetometer, and BM8563 RTC.

Which development platforms are supported?

It supports UiFlow2, Arduino IDE, PlatformIO, and ESP-IDF workflows.

What magnetic-field caution should be noted?

Magnets may affect the BMM150 magnetometer, so keep it away from strong magnetic fields when accurate magnetic readings are needed.
