The M5Stack COMX LTE Module adds high-speed 4G LTE connectivity to M5Stack projects, supporting data transfer, voice calls, and SMS for applications such as industrial IoT, remote monitoring, and wireless communication systems.

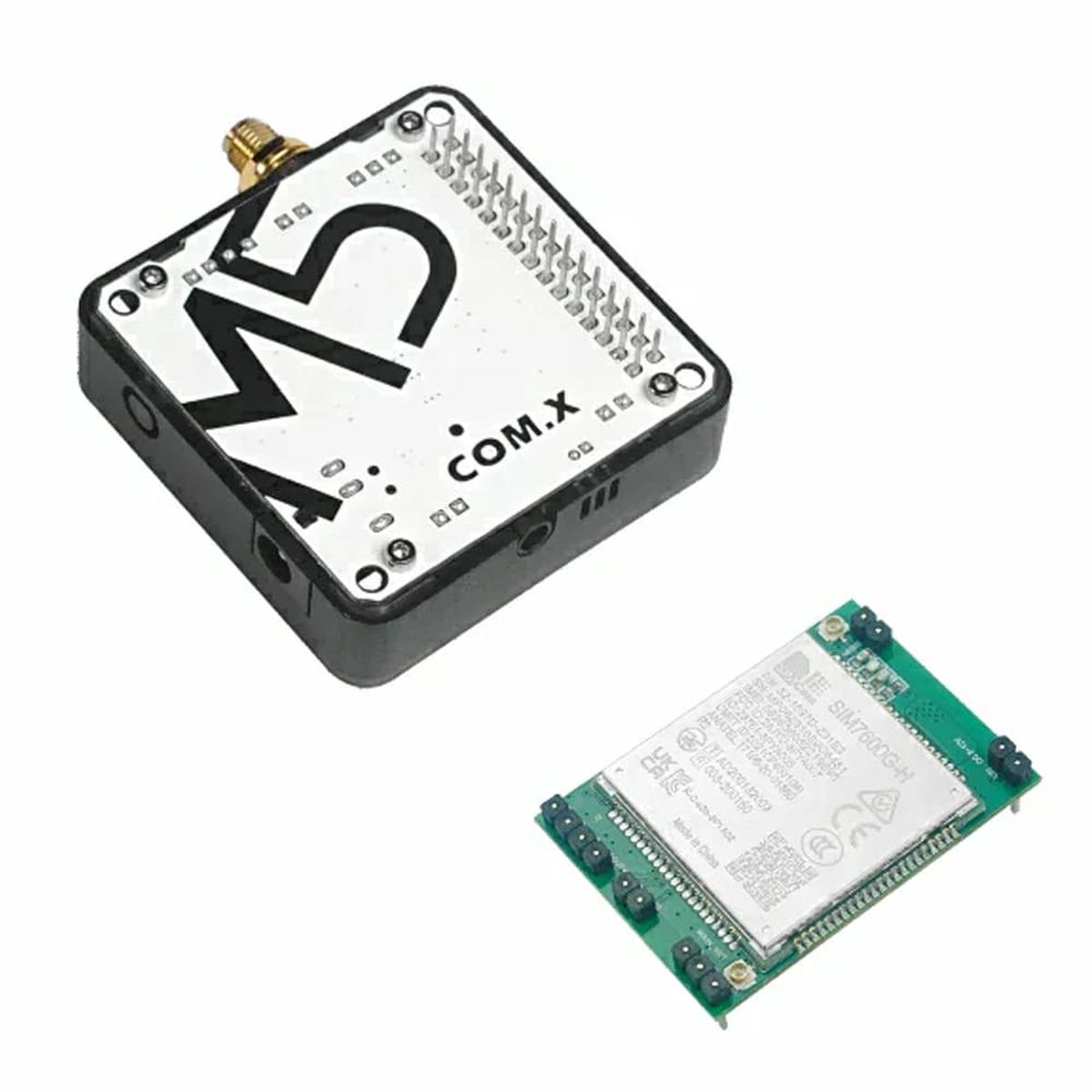

Module COMX LTE is an M5Stack stackable multifunctional LTE communication module, built-in LTE module SIM7600G, supporting LTE-TDD/LTE-FDD/WCDMA and GSM frequency bands, supporting LTE.CAT4 (downlink speed of 150Mbps), and supporting voice calls and SMS.

It has stable performance, compact appearance, and high cost performance, enabling low-power transmission of SMS and data information. The module comes with a DC power input, which can be powered by an external power supply of 5 ~ 12V.

For user convenience in configuring pins, a DIP switch is used to set the pins. The onboard microphone and 3.5mm headphone jack support the insertion of headphones with a microphone. This module is particularly suitable for scenarios requiring high-speed network connections, such as video calls, drone data transmission, and industrial IoT.

Features

• Stackable design
• Supports voice calls, SMS, and cellular data transmission
• Can be powered externally
• Built-in microphone
• AT command control
• SIM card type: MicroSIM
• Status signals: Two LED indicators
• External antenna: SMA antenna
• Serial communication: UART 115200bps
• Frequency bands:
  • LTE-TDD B34/B38/B39/B40/B41
  • LTE_FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66
  • WCDMA B1/B2/B4/B5/B6/B8/B19
  • GSM/GPRS/EDGE 850/900/1800/1900MHz
• Data transmission:
• LTE Cat4
  • Maximum uplink speed: 50Mbps
  • Maximum downlink speed: 150Mbps
• HSPA+
  • Maximum uplink speed: 5.76Mbps
  • Maximum downlink speed: 42Mbps
• WCDMA
  • Maximum uplink/downlink speed: 384Kbps
• EDGE/GPRS
  • Maximum uplink/downlink speed: 236.8Kbps
• Supported protocols
  • TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS
  • TLS
  • RNDIS/ECM
  • FOTA

Specifications

Compatibility

• When used with the Fire main control, due to PSRAM pin (G16/G17) conflicts, please switch the module base DIP switch pins to TX(G0/G13), RX(G5/G15).

Resources

• Product documents

Package Contents

• 1x COMX LTE Module (SIM7600G)
• 1x SMA antenna
• 1x Hex wrench
